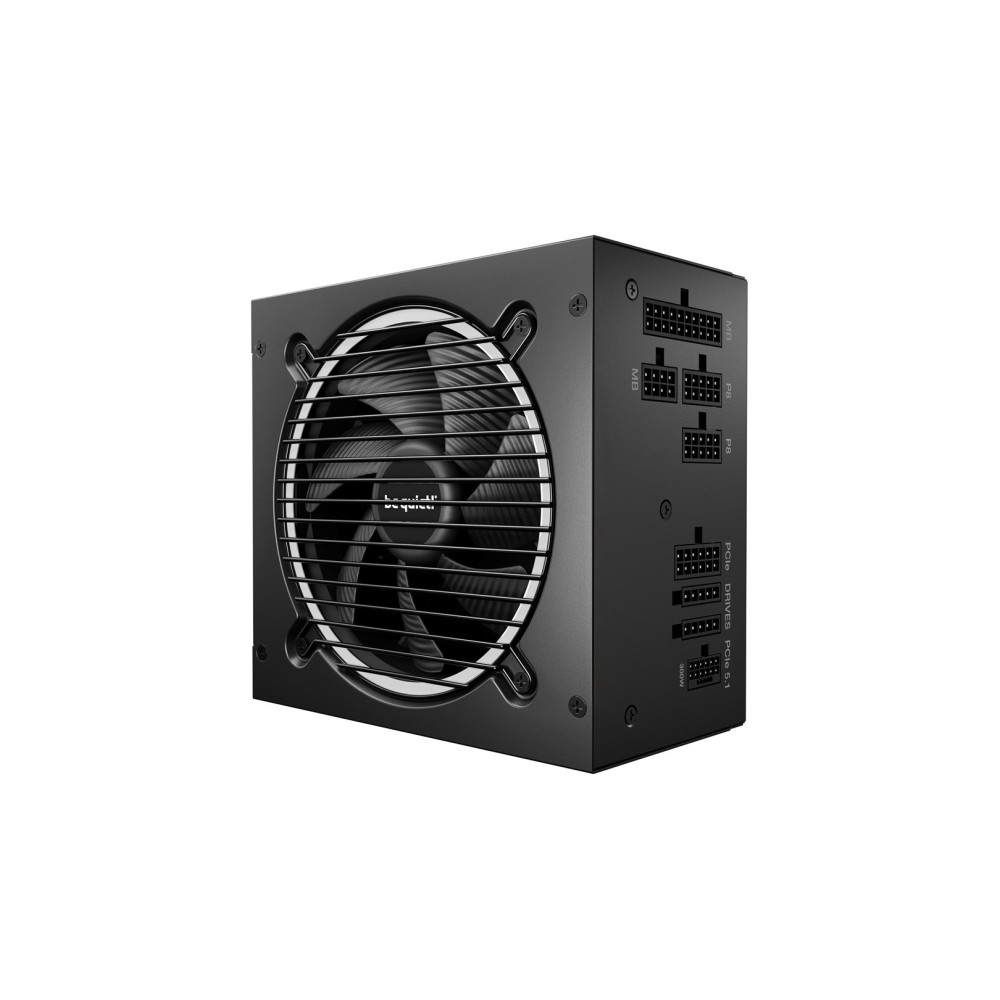

be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
- In Stock
- 105.82€
- Ex Tax: 85.34€
- Brand: BEQ
- Model: 4260052192160
- Product Code: BP024EU
- Availability: 4 pcs
- ID: 370311
Fast delivery
| Main | |
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| ATX version | 3.1 |
| Bearing technology | Rifle |
| Cable ties included | Yes |

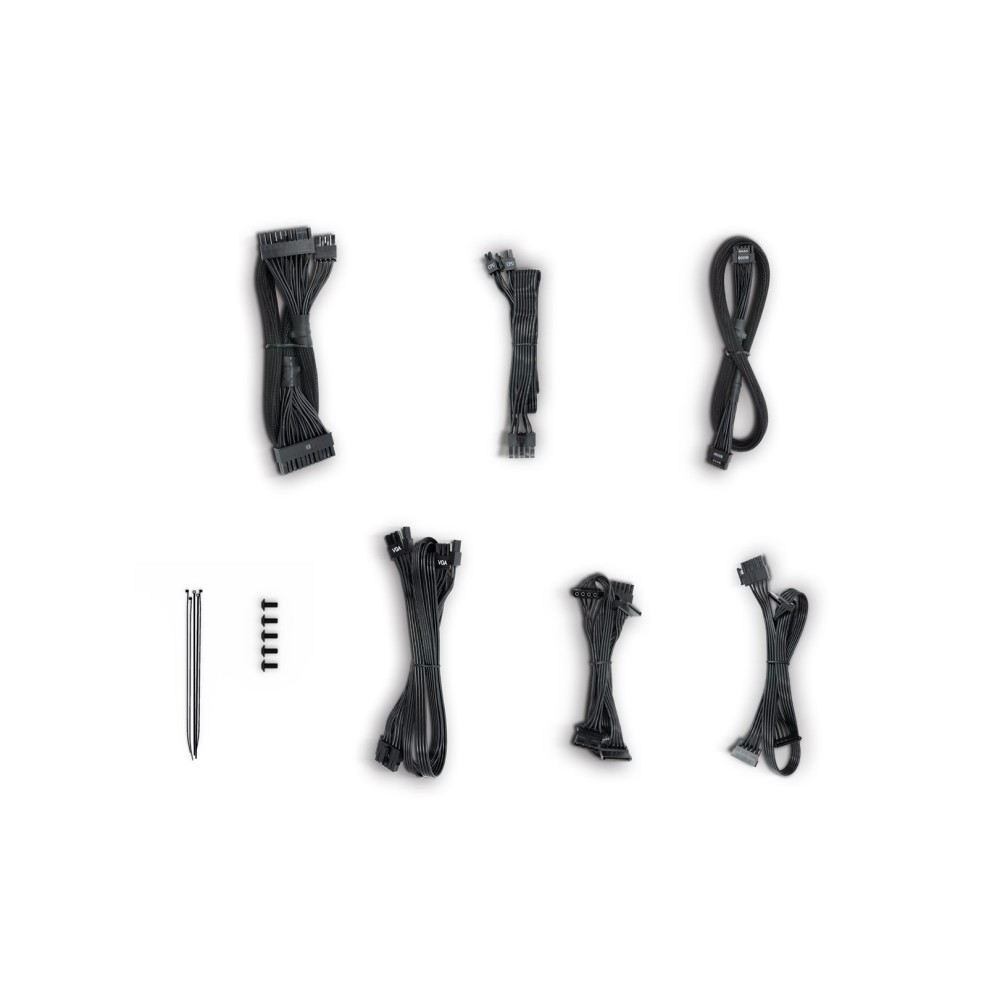

| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Cabling type | Fully-Modular |
| Combined power (+12V) | 550 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Compliance certificates | cTUVus, Federal Communications Commission (FCC), CB, BSMI, CCC, IRAM, WEEE, RCM, TÜV mark, UKCA, RoHS, CE |
| Cooling type | Active |
| CPU P4 connector (4-pin) | 2 |

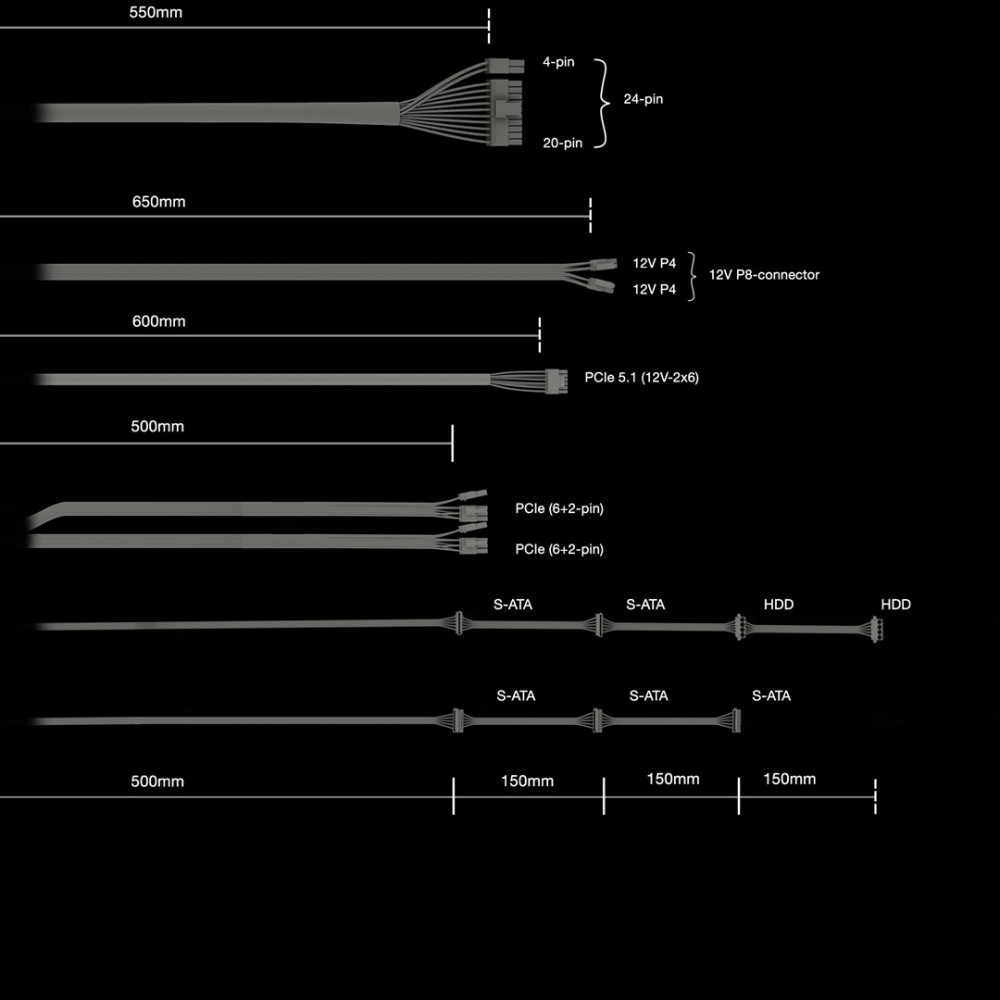

| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| Depth | 160 mm |
| Efficiency | 92.1% |
| EPS version | 2.92 |
| Fan diameter | 12 cm |
| Fan speed | 0 - 1800 RPM |
| Height | 86 mm |
| Hold time | 21.68 ms |
| Max output current (+12V1) | 45.8 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Mean time between failures (MTBF) | 100000 h |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |

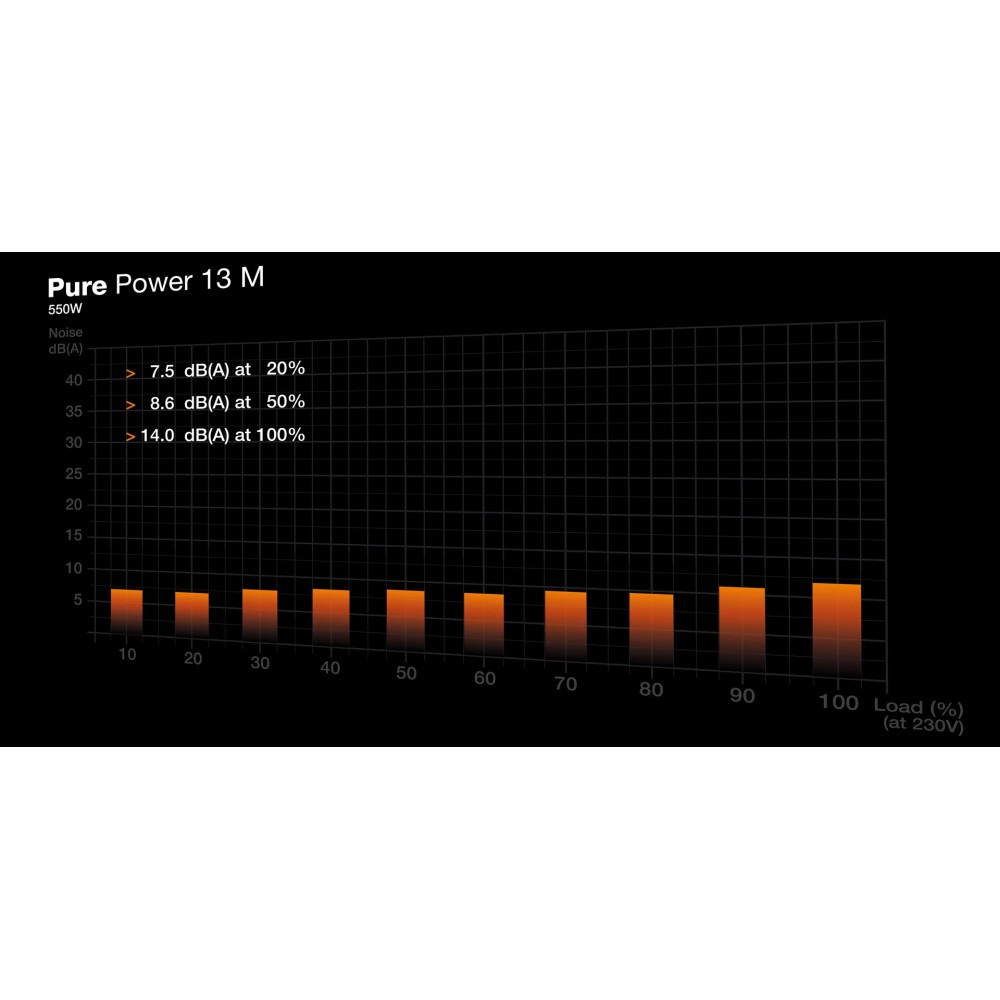

| Noise level | 20.8 dB |
| Number of +12V rail(s) | 1 |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 5 |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| package depth | 320 mm |
| package height | 133 mm |
| package weight | 3 kg |
| package width | 210 mm |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peak power | 600 W |
| Peripheral (Molex) power cable length | 800, 950 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Surge & inrush protection (SIP), Under voltage, Over current, Over power, Short circuit, Over voltage, Overheating |
| Power supply unit (PSU) form factor | ATX |
| product colour | Black |
| Products per shipping (inner) case | 6 pc(s) |
| Purpose | PC |
| SATA power cable length | 800 mm, 500, 650 |
| Screws included | Yes |
| Shipping (inner) case gross weight | 17.9 kg |
| Shipping (inner) case height | 23.3 cm |
| Shipping (inner) case length | 58 cm |
| Shipping (inner) case width | 32.5 cm |
| Sustainability certificates | ENERGY STAR, ErP |
| Total power | 550 W |
| weight | 2.23 kg |
| Width | 150 mm |
