80 PLUS certification |
80 PLUS Bronze |
AC input frequency |
50 Hz |
AC input voltage |
200 - 240 V |
ATX Power connector (24-pin) |
Yes |
Built-in display |
No |

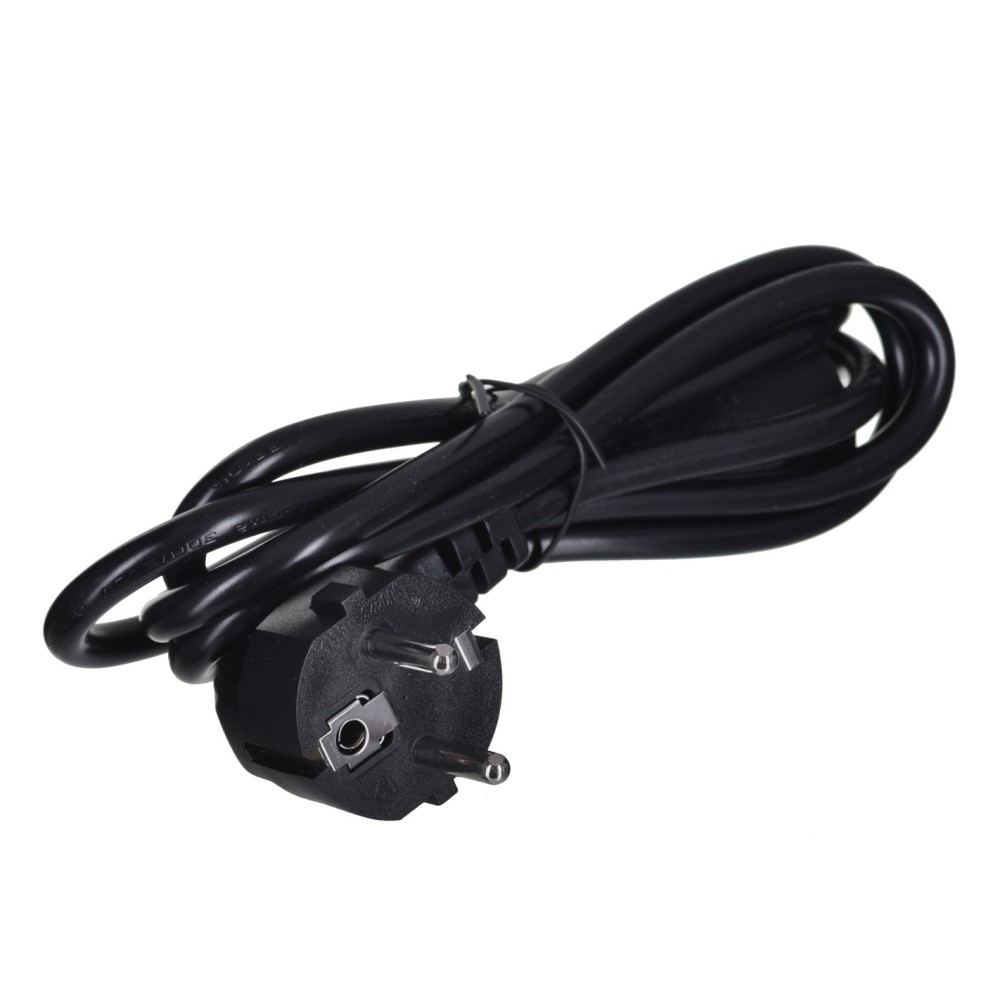

Cables included |
AC |
Cabling type |
Modular |
Combined power (+12V) |
588 W |
Combined power (+3.3V) |
97 W |
Combined power (+5V) |
97 W |
Combined power (+5Vsb) |
12.5 W |
Combined power (-12V) |
3.6 W |
Depth |
150 mm |

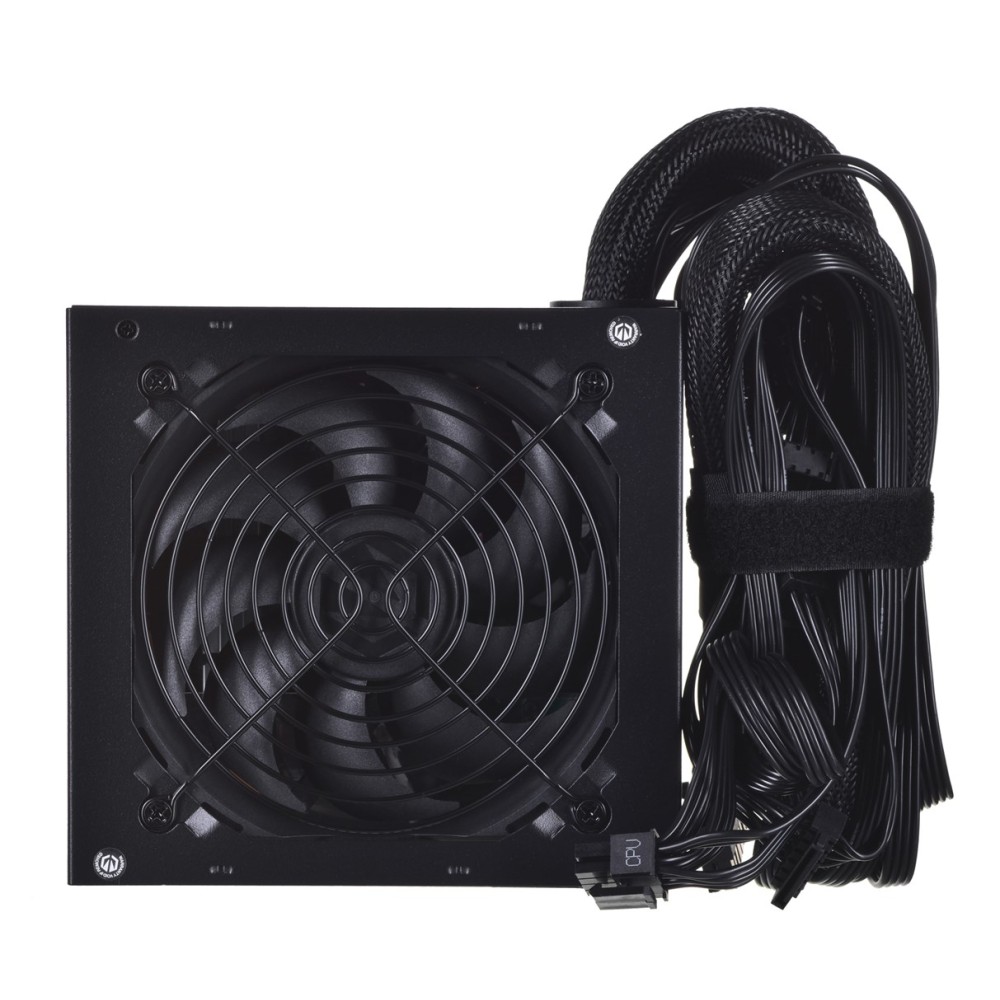

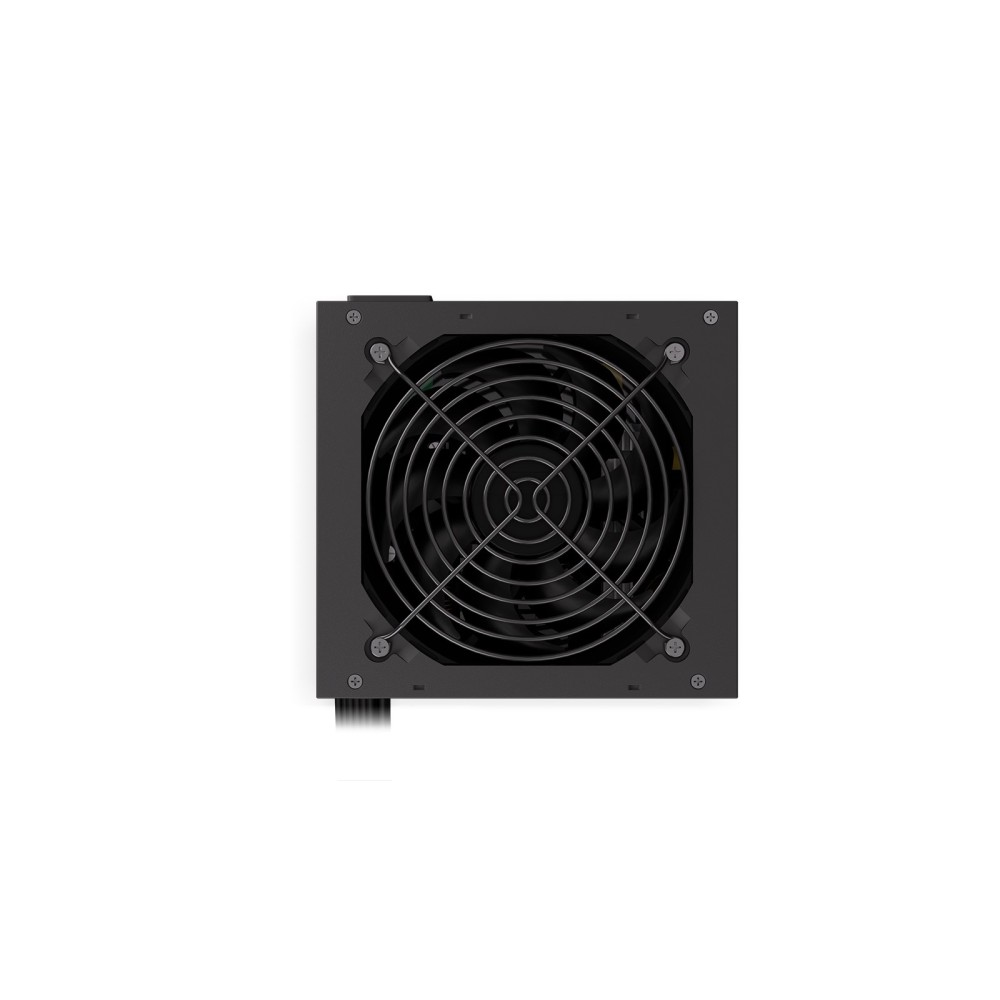

Fan diameter |
12 cm |
Hazard pictogram(s) |
GHS07: Harmful, GHS09: Environmental hazard, GHS02: Flammable |
Height |
87 mm |
Input current |
5 A |
Max output current (+12V) |
49 A |
Max output current (+3.3V) |
15 A |
Max output current (+5V) |
15 A |
Max output current (+5Vsb) |
2.5 A |
Max output current (-12V) |
0.3 A |
Mean time between failures (MTBF) |
80000 h |
Motherboard power cable length |
57 cm |
Motherboard power connector |
24-pin ATX |
Number of fans |
1 fan(s) |
Number of SATA power connectors |
5 |
On/off switch |
Yes |
package depth |
220 mm |
package height |
95 mm |
Package type |
Box |
package weight |
2.19 kg |
package width |
260 mm |
PCI Express power connectors (8-pin) |
2 |
Peripheral (Molex) power cable length |
820 mm |
Peripheral (Molex) power connectors (4-pin) |
1 |
Power protection features |
Short circuit, Over voltage, Under voltage, Over current, Over power |
Power supply unit (PSU) form factor |
ATX |
product colour |
Black |
Purpose |
PC |
SATA power cable length |
500 mm |
Supported motherboard form factors |
ATX |
Sustainability certificates |
Federal Communications Commission (FCC), CE, RoHS |
Sustainability compliance |
Yes |
Total power |
600 W |
Warranty period |
3 year(s) |
weight |
1.69 kg |
Width |
140 mm |
