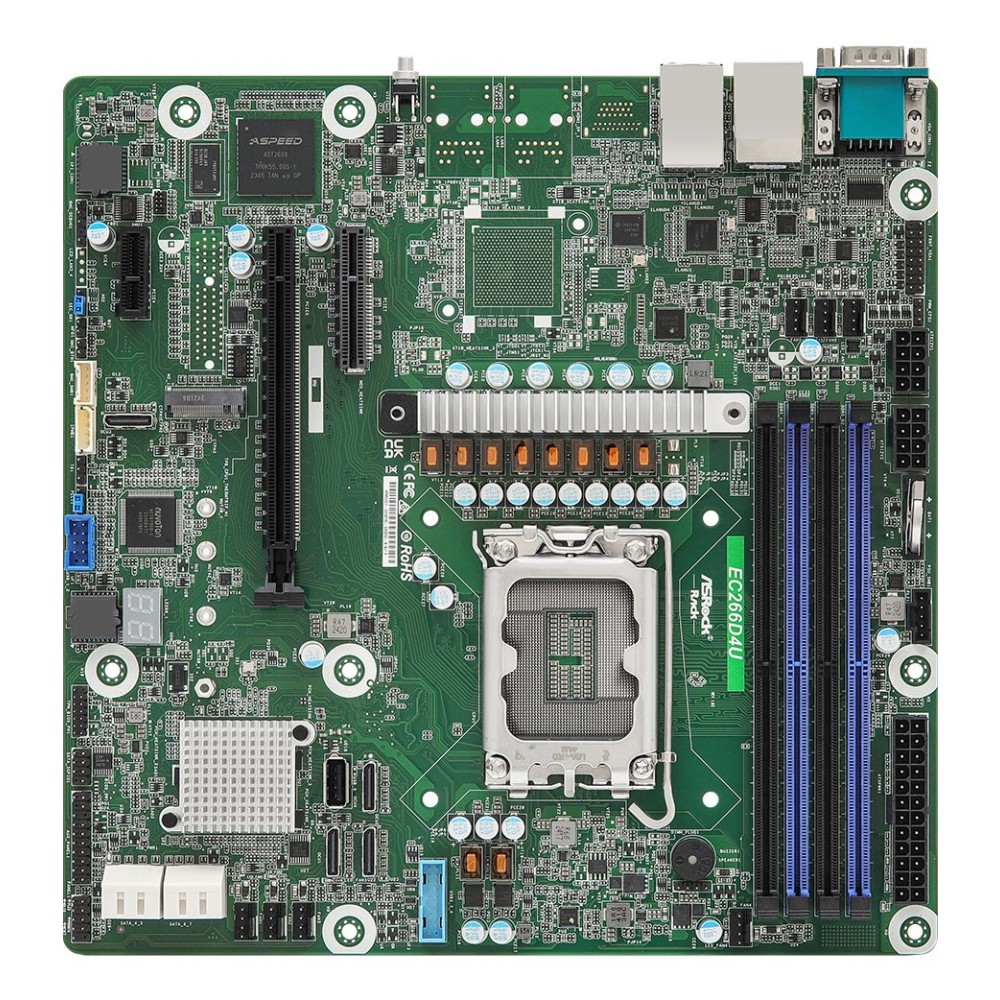

Asrock EC266D4U motherboard Intel C266 LGA 1700 micro ATX
- In Stock
- 369.10€
- Ex Tax: 302.54€
Monthly payment from: 16.39 EUR
- Brand: ASR
- Model: 4711430523026
- Product Code: EC266D4U
- Availability: 5 pcs
- ID: 361549
Fast delivery
| Main | |
| ACPI version | 6.4 |
| ATX Power connector (24-pin) | Yes |
| BIOS memory size | 256 Mbit |
| BIOS type | AMI |
| Compatible processor series | Intel® Pentium® Gold, Intel® Xeon®, Intel Xeon E |
| Depth | 244 mm |
| ECC сompatibility | ECC |
| Ethernet LAN (RJ-45) ports | 2 |
| Maximum internal memory | 32 GB |
| Memory voltage | 1.1 V |
| motherboard chipset | Intel C266 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 8 |
| On-board graphics card model | Aspeed AST2600 |
| Operating temperature (T-T) | 10 - 35 °C |
| PC health monitoring | Fan, CPU |
| PCI Express OCuLink connectors (NVMe support) | 3 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| processor manufacturer | Intel |
| processor socket | LGA 1700 |
| Serial ports quantity | 1 |
| Storage relative humidity (H-H) | 20 - 90% |
| storage temperature (T-T) | -40 - 70 °C |
| Supported memory clock speed (max) | 4400 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| System Management BIOS (SMBIOS) version | 2.8 |
| TPM connector | Yes |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Width | 244 mm |
