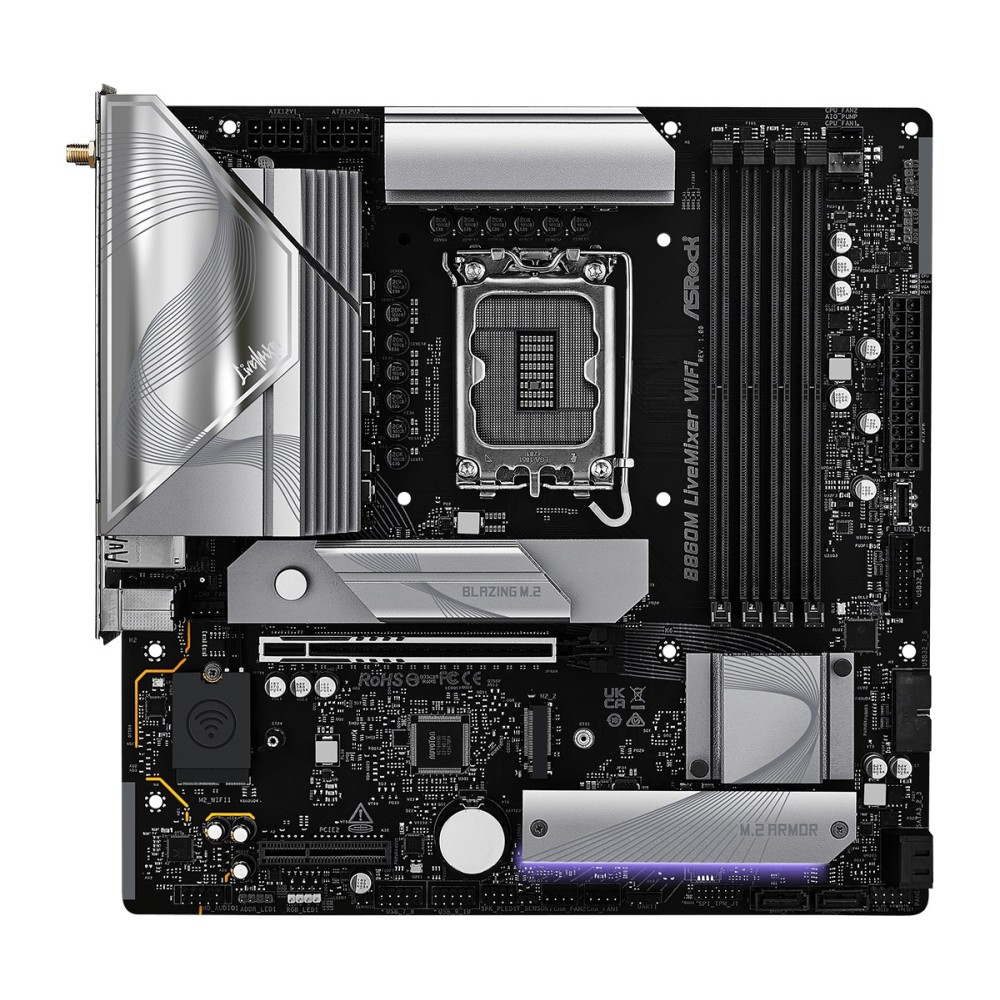

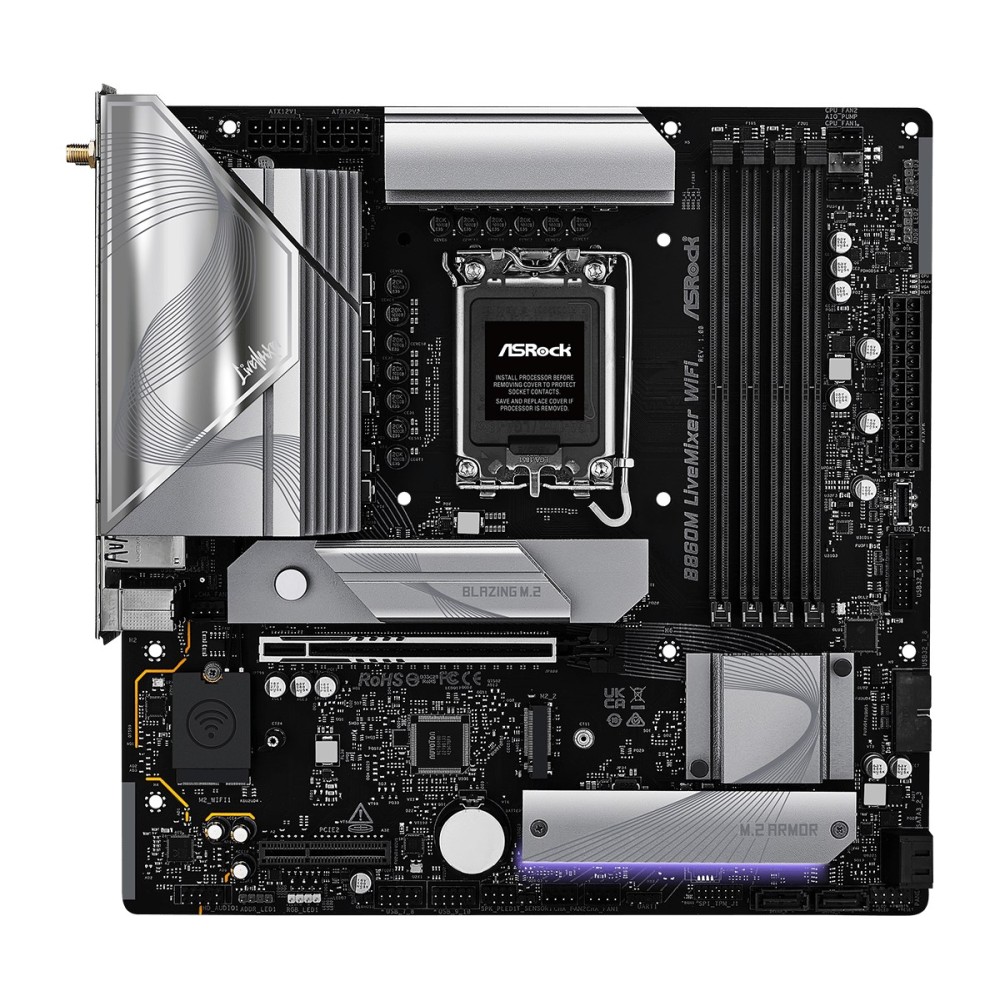

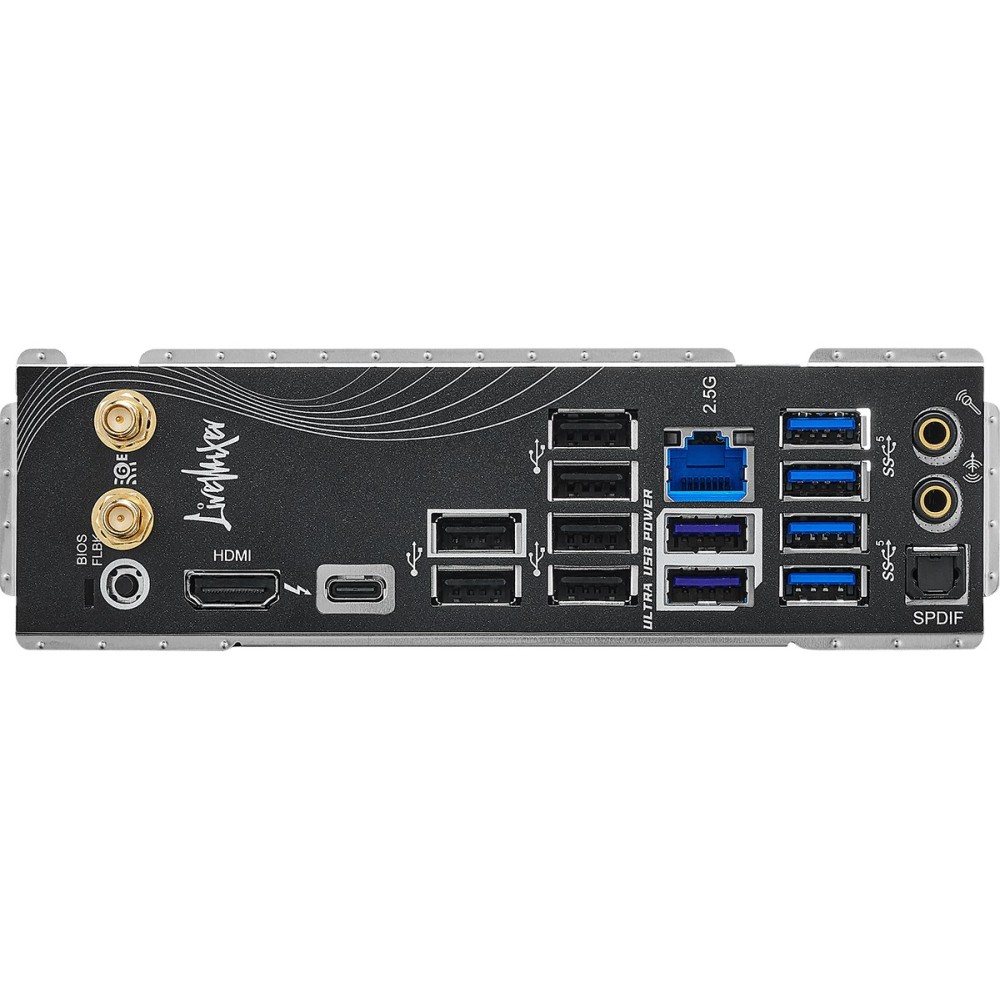

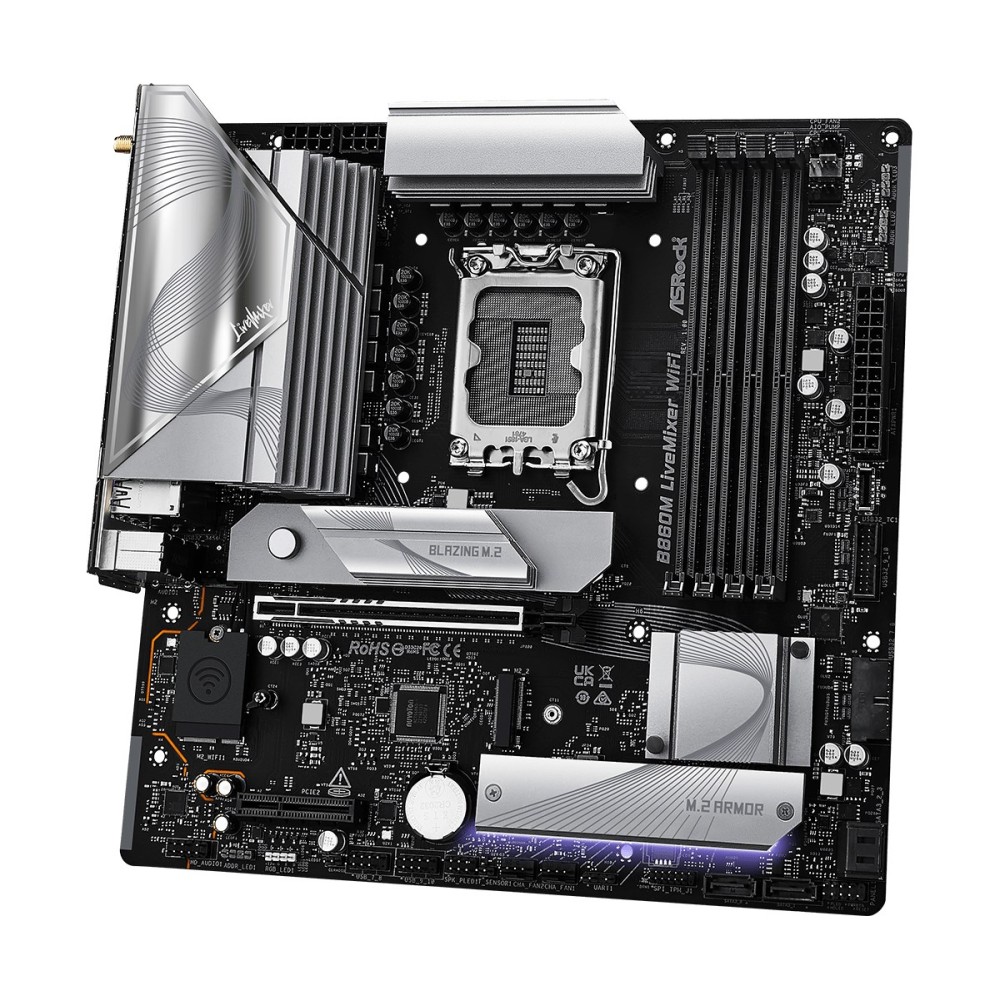

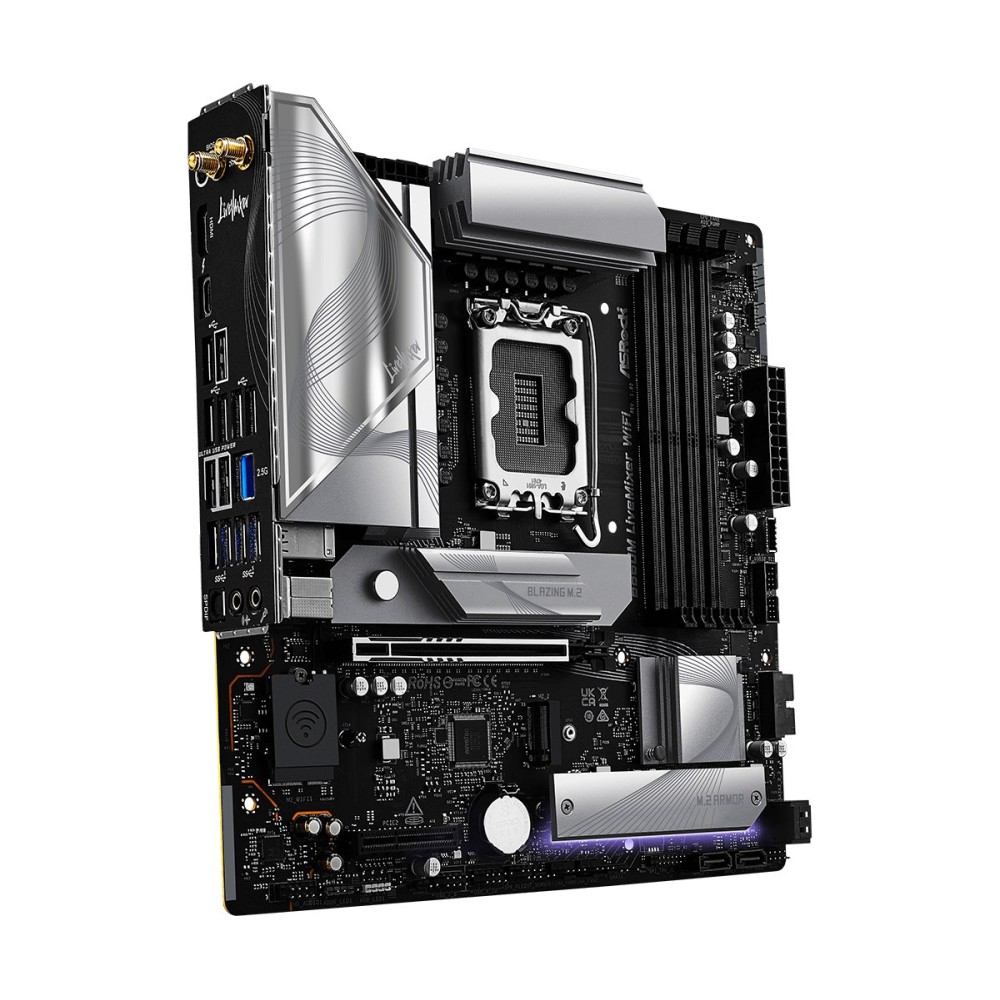

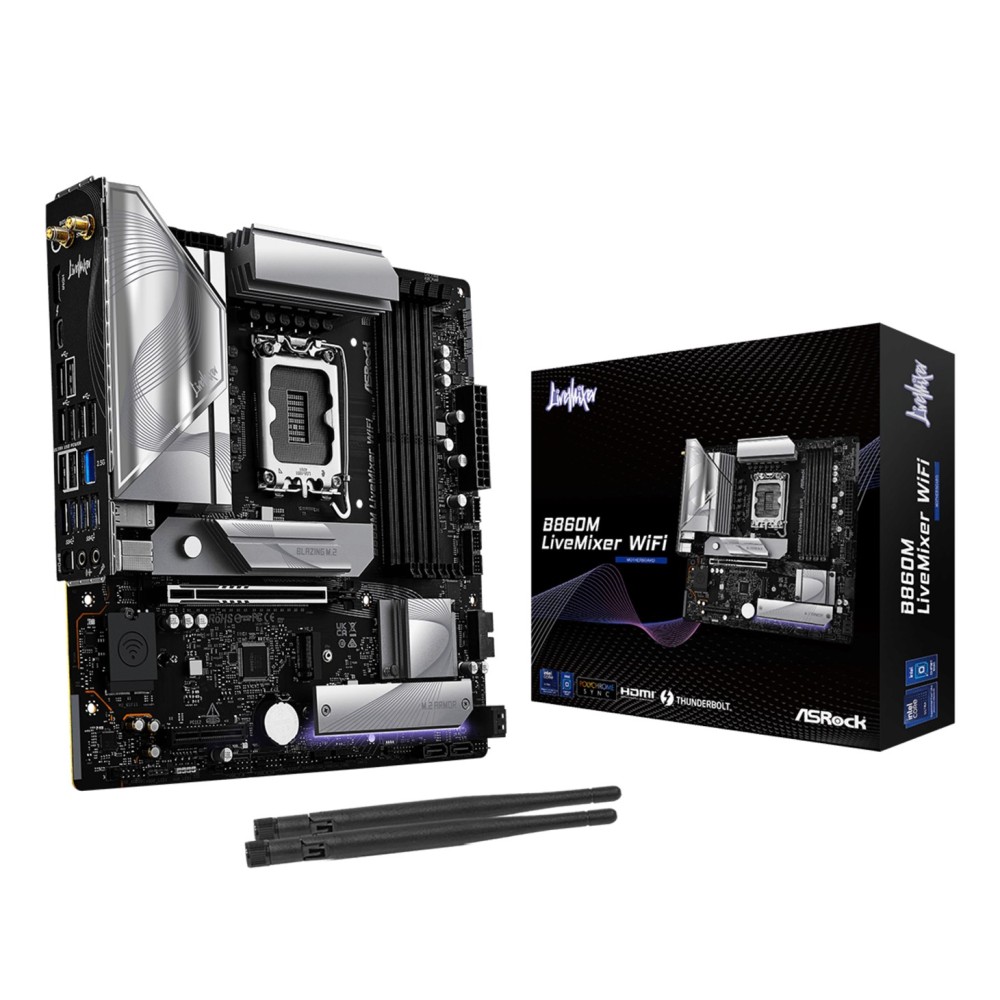

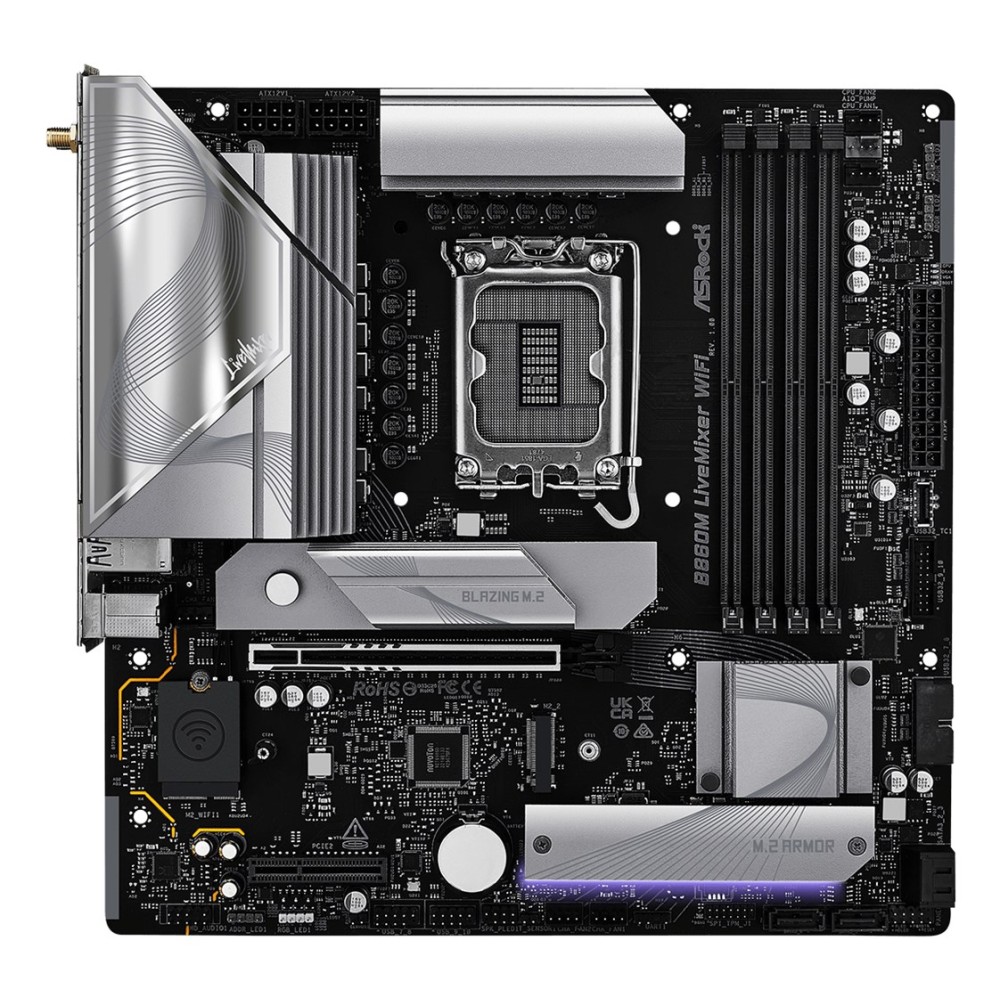

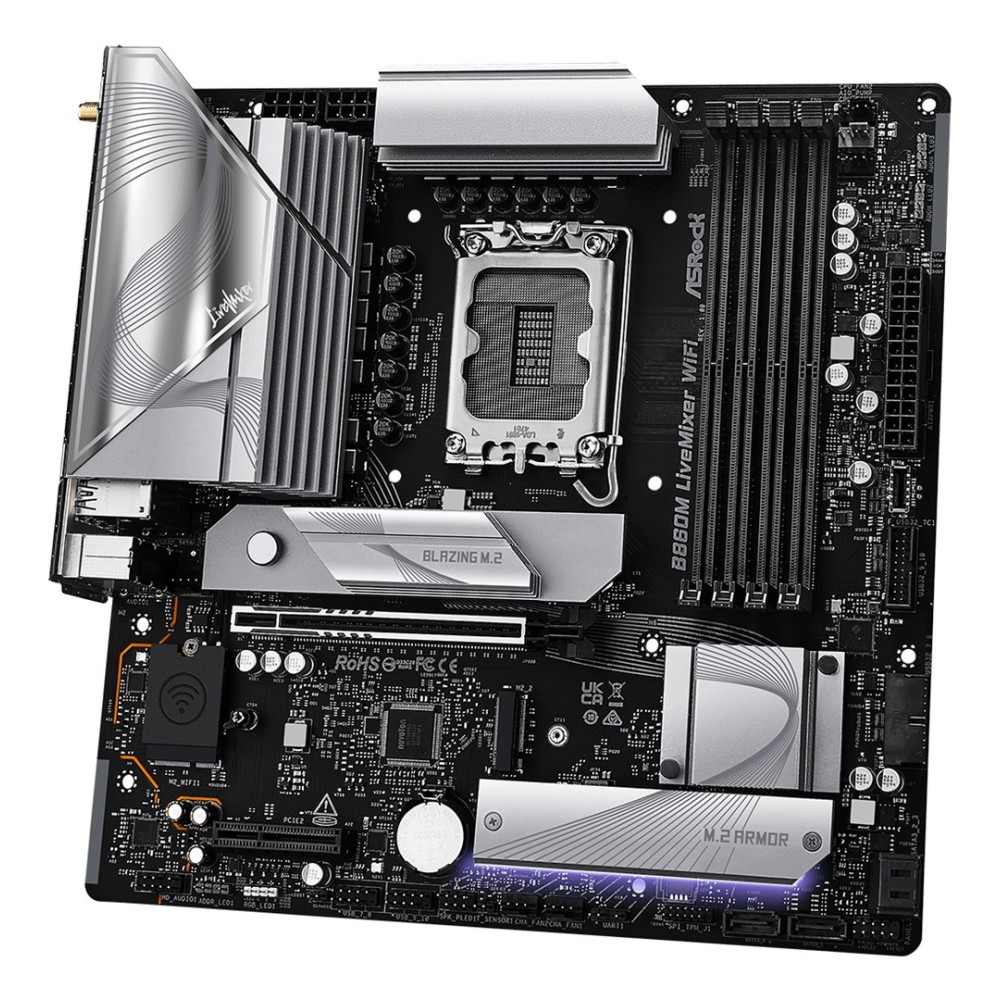

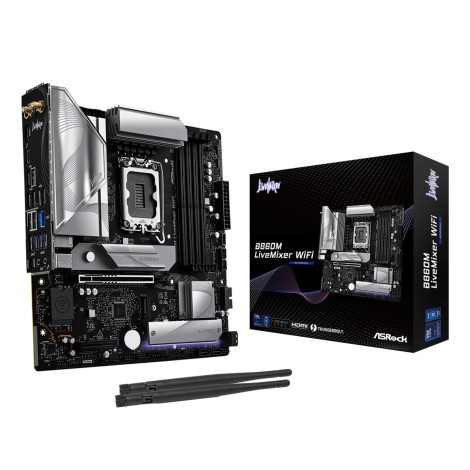

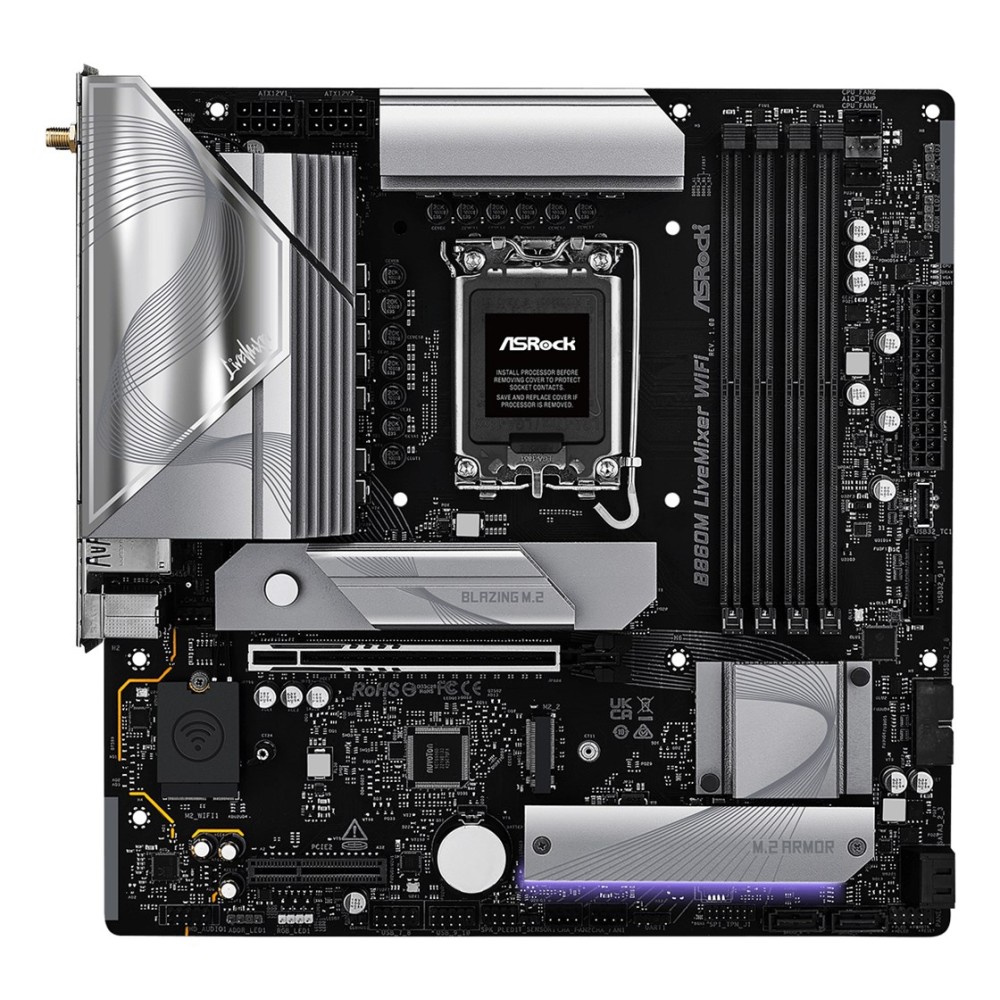

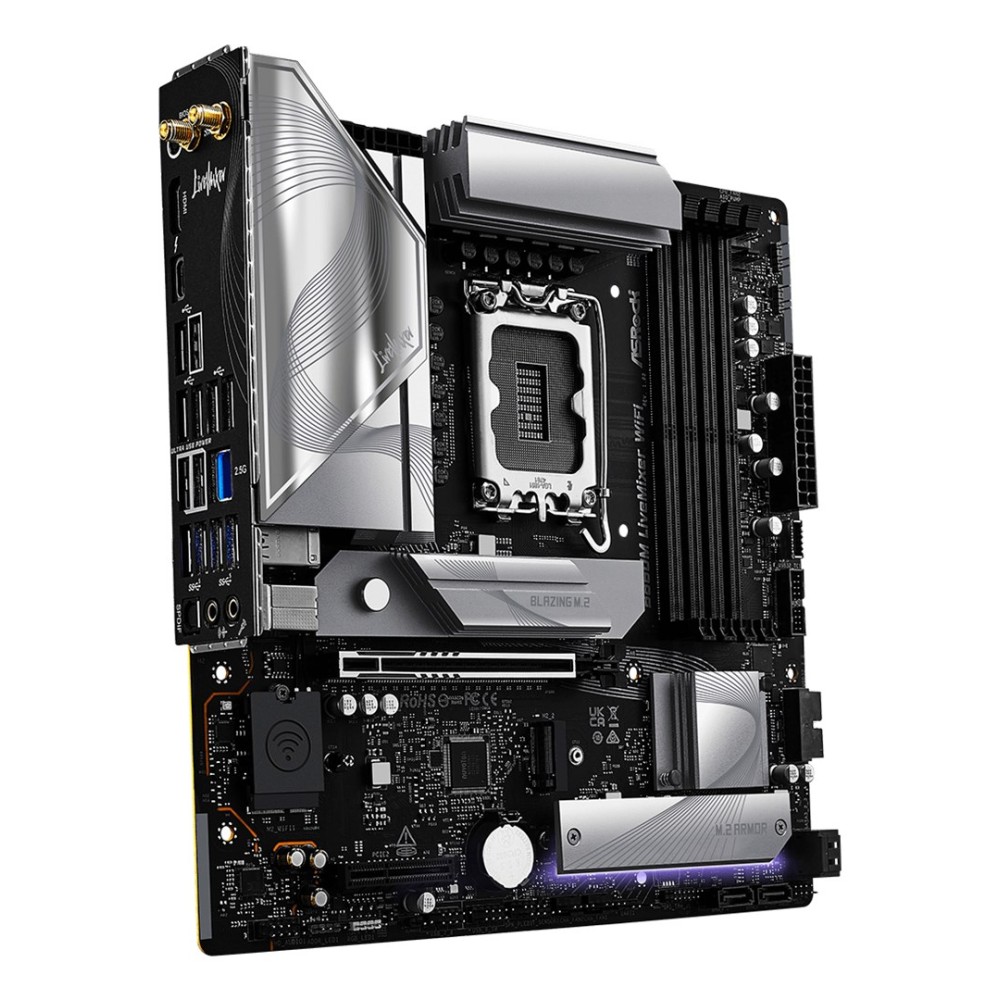

Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) micro ATX
- In Stock
- 177.00€
- Ex Tax: 142.74€
Monthly payment from: 7.73 EUR
- Brand: ASR
- Model: 4711581490314
- Product Code: B860M LiveMixer WiFi
- Availability: 20 pcs
- ID: 363560
Fast delivery
| Main | |
| ATX Power connector (24-pin) | Yes |
| audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Cables included | SATA |
| CPU fan connector | Yes |
| Depth | 244 mm |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Graphics card family | Intel |
| HDMI ports quantity | 1 |
| LAN controller | Dragon RTL8125BG |
| Maximum internal memory | 256 GB |
| memory channels | Dual-channel |
| Memory slots type | DIMM |
| microphone in | Yes |
| motherboard chipset | Intel B860 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 5 |
| Number of SATA III connectors | 4 |
| On-board graphics card | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| processor manufacturer | Intel |
| processor socket | LGA 1851 (Socket V1) |
| RAID levels | 0, 1, 10, 5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive interfaces | M.2, SATA III |
| Thunderbolt ports quantity | 1 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Warnings | Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics. |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Width | 244 mm |
| WiFi | Yes |
| Windows operating systems supported | Windows 11 x64 |
