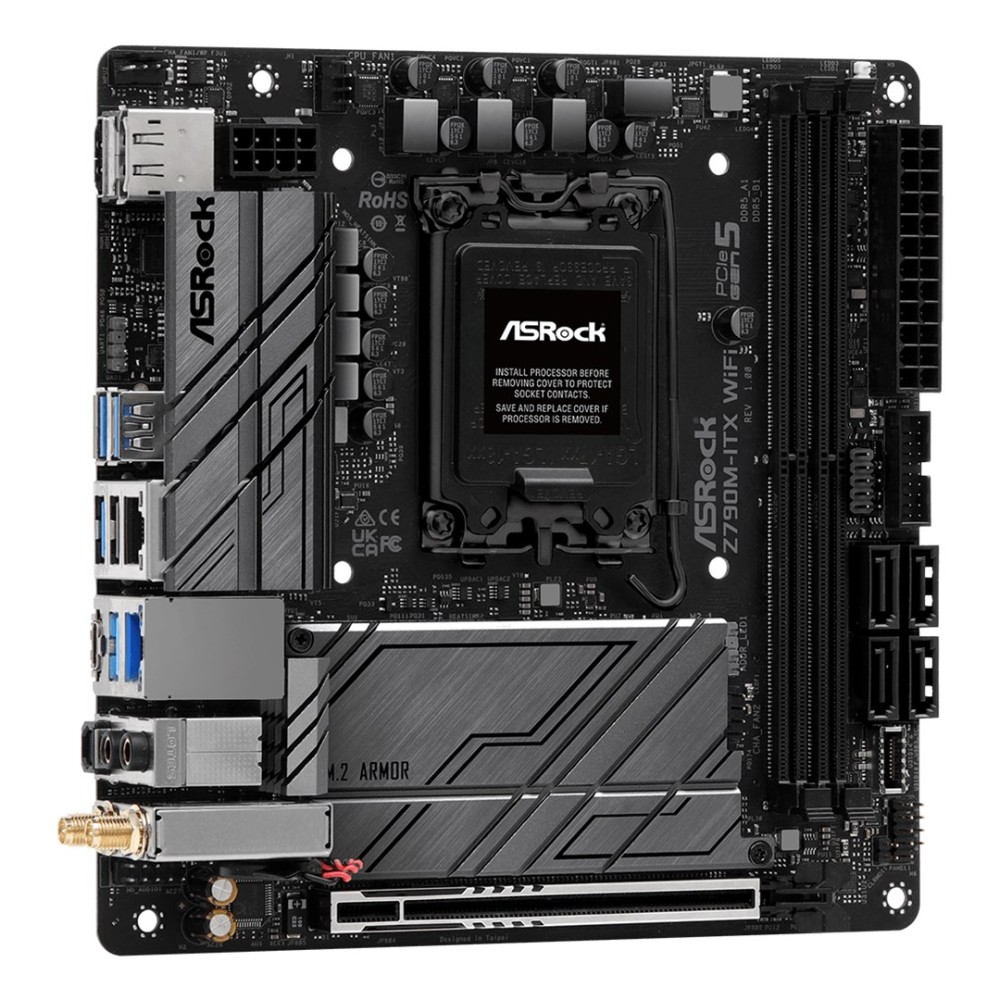

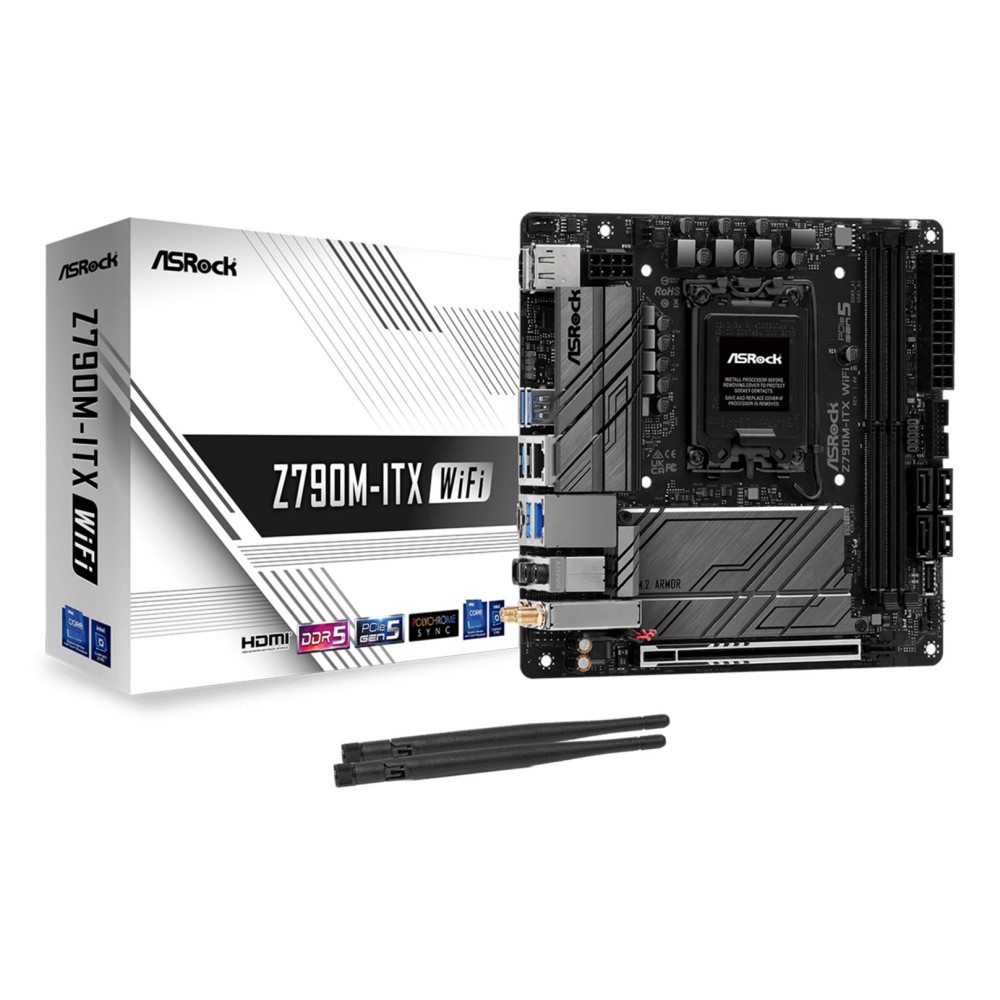

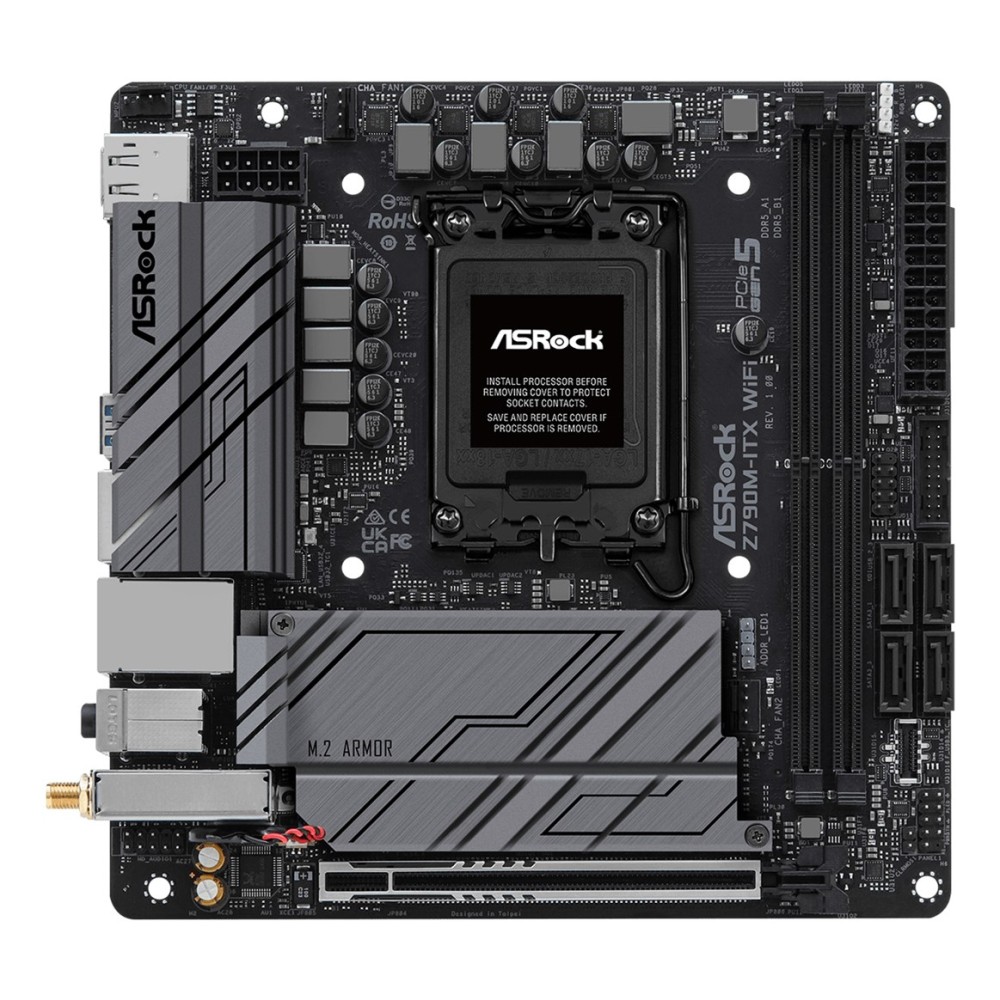

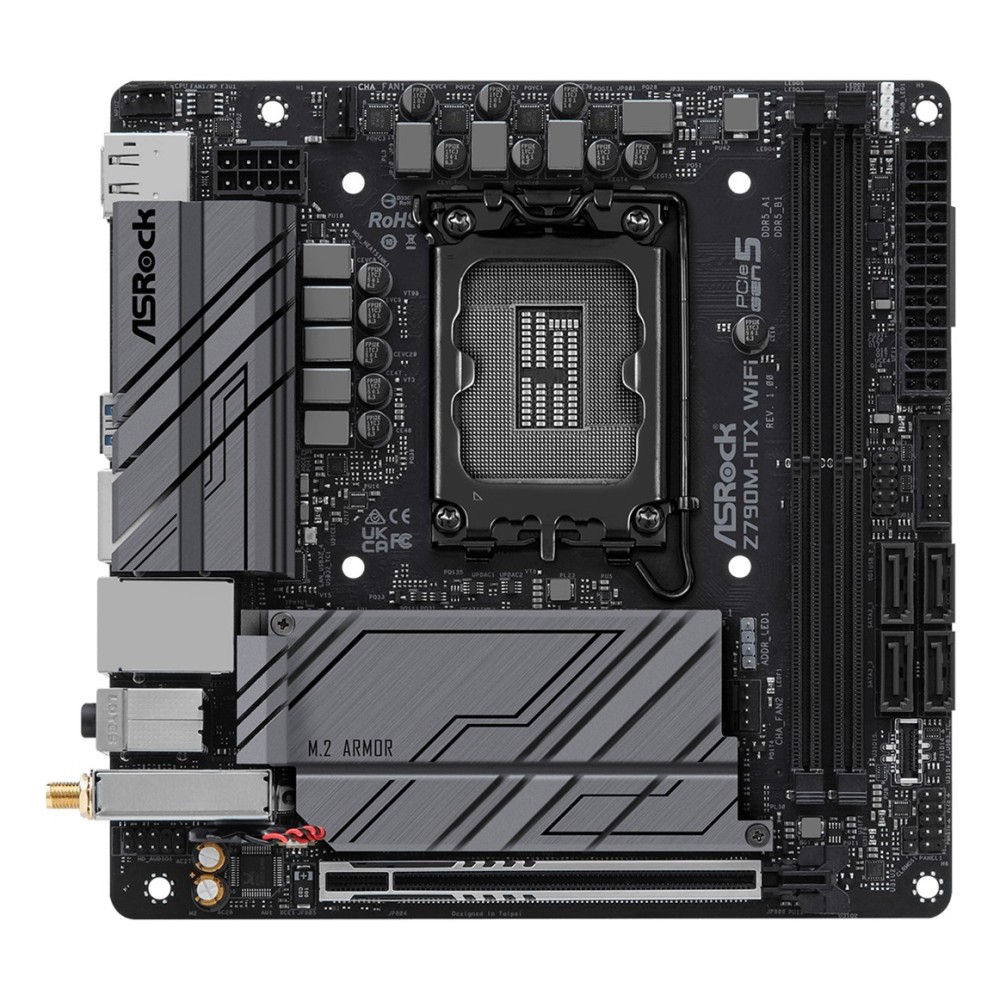

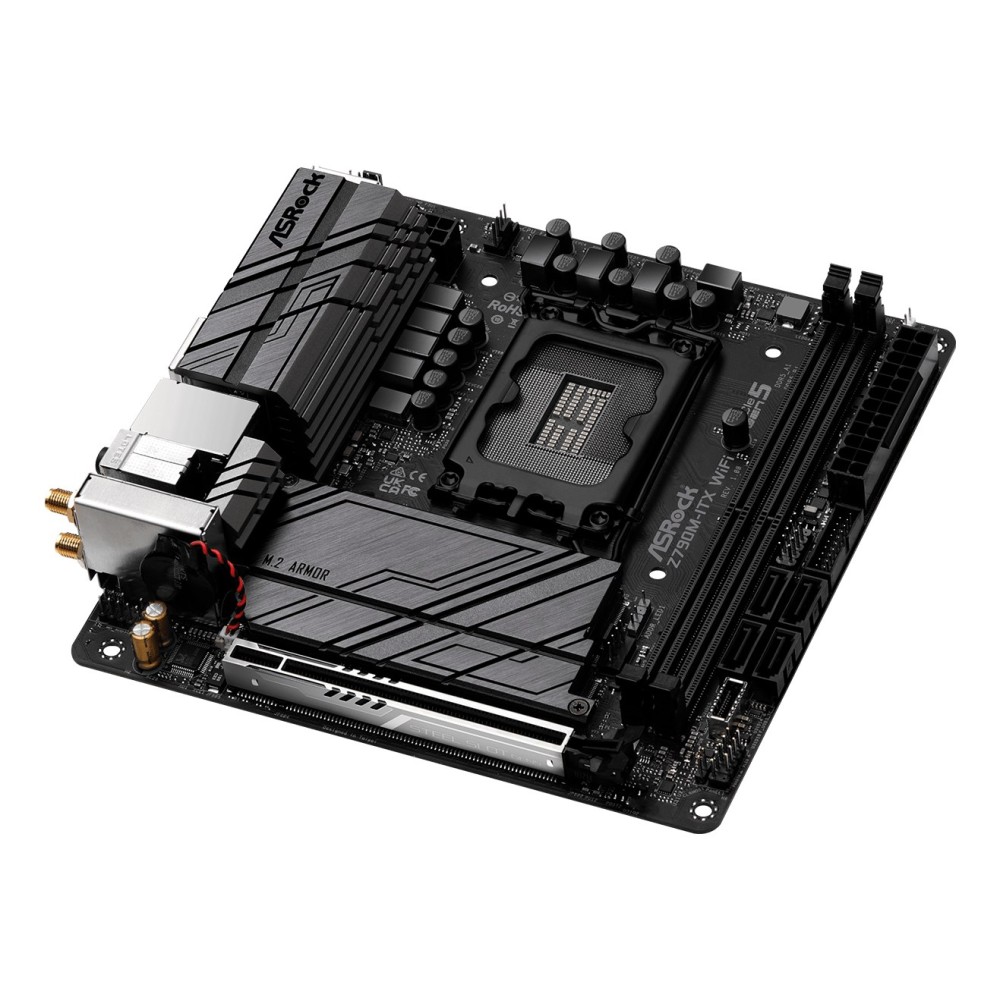

Asrock Z790M-ITX WiFi Intel Z790 LGA 1700 mini ITX
- In Stock
- 196.19€
- Ex Tax: 158.22€
Monthly payment from: 8.57 EUR
- Brand: ASR
- Model: 4710483941054
- Product Code: Z790M-ITX WiFi
- Availability: 5 pcs
- ID: 329380
Fast delivery
| Main | |
| ATX Power connector (24-pin) | Yes |
| audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Depth | 170 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| headphone outputs | 1 |
| line-in | Yes |
| Maximum internal memory | 64 GB |
| Maximum number of SMP processors | 1 |
| memory channels | Dual-channel |
| Memory slots type | DIMM |
| motherboard chipset | Intel Z790 |
| Motherboard chipset family | Intel |
| Motherboard form factor | mini ITX |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| processor manufacturer | Intel |
| processor socket | LGA 1700 |
| RAID levels | 10, 0, 1, 5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out port | Yes |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Wi-Fi standards | 802.11g, 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 5 (802.11ac) |
| Width | 170 mm |
| WiFi | Yes |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
