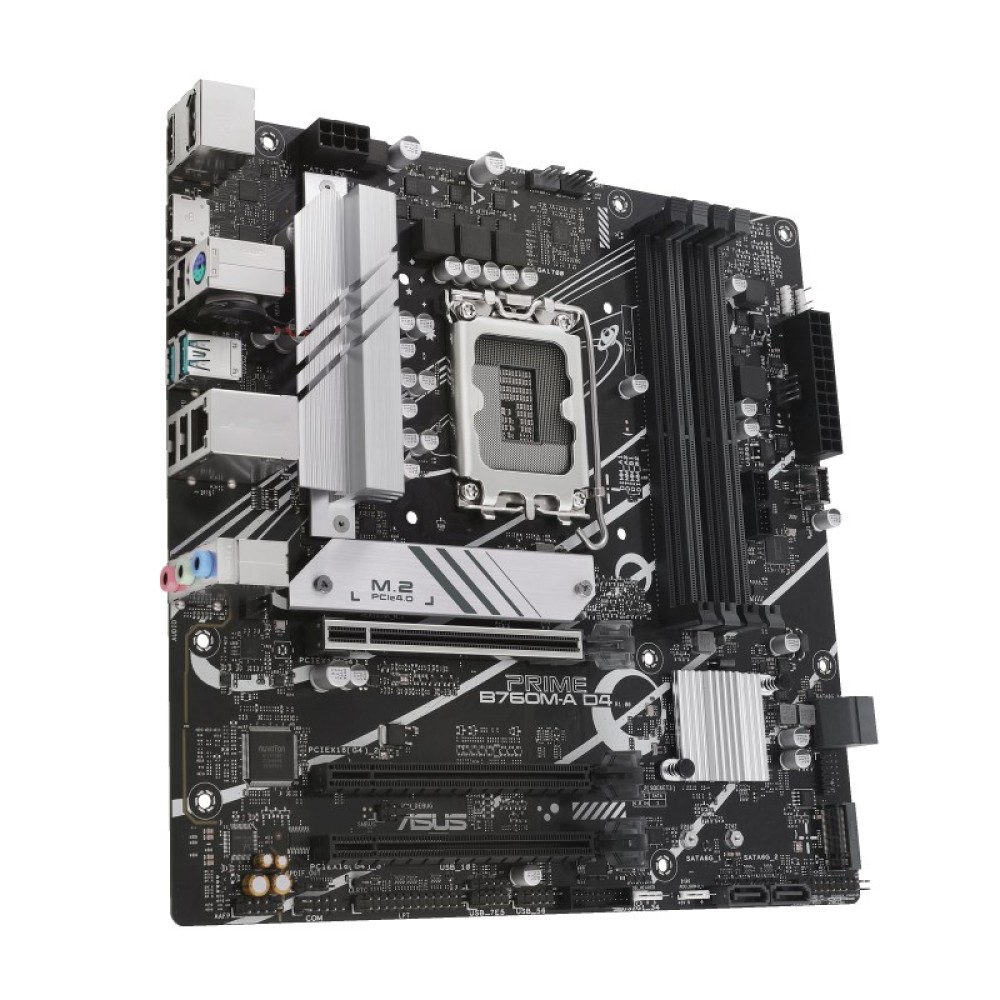

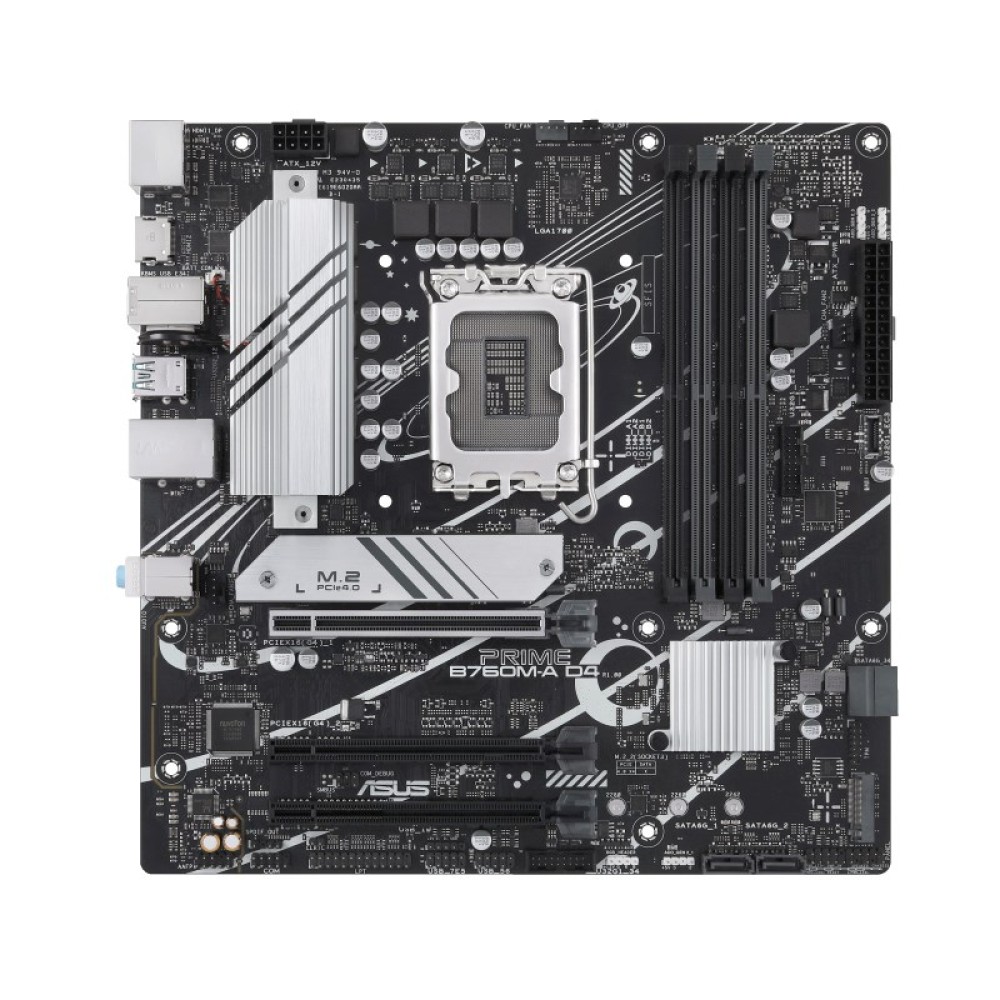

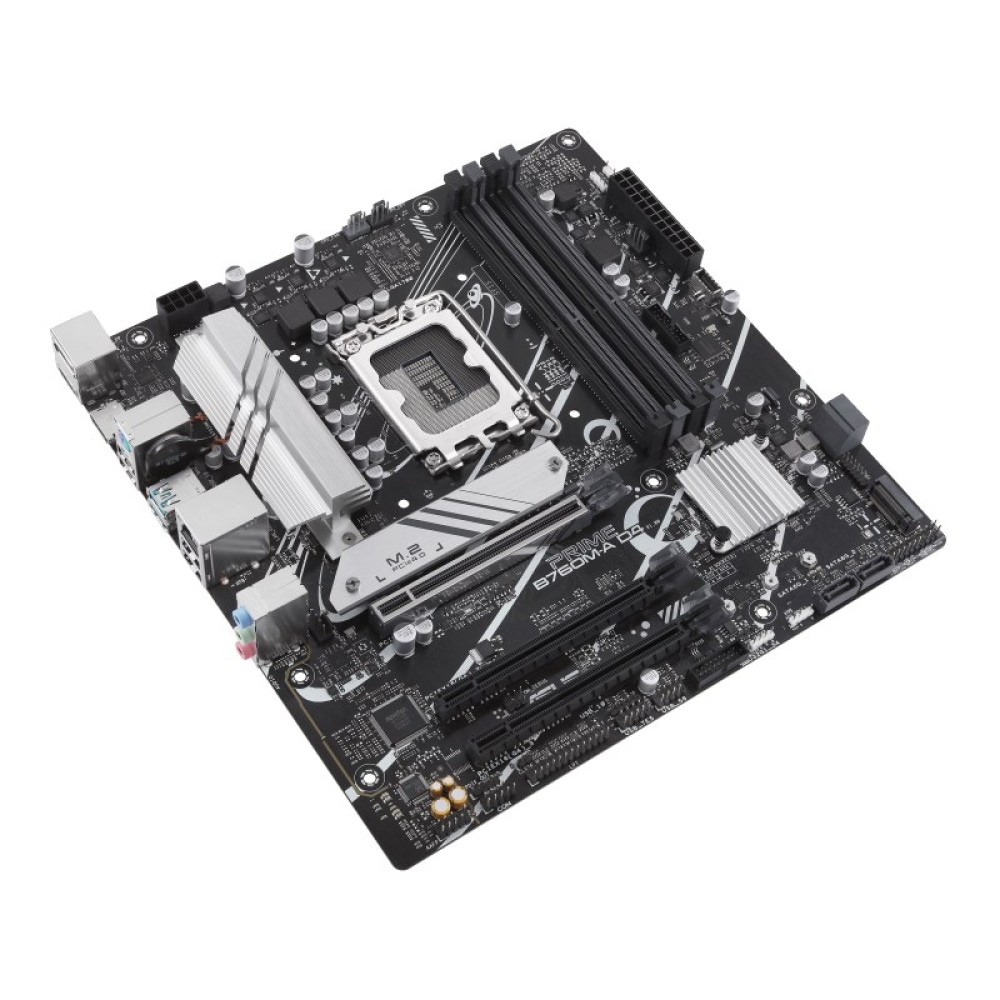

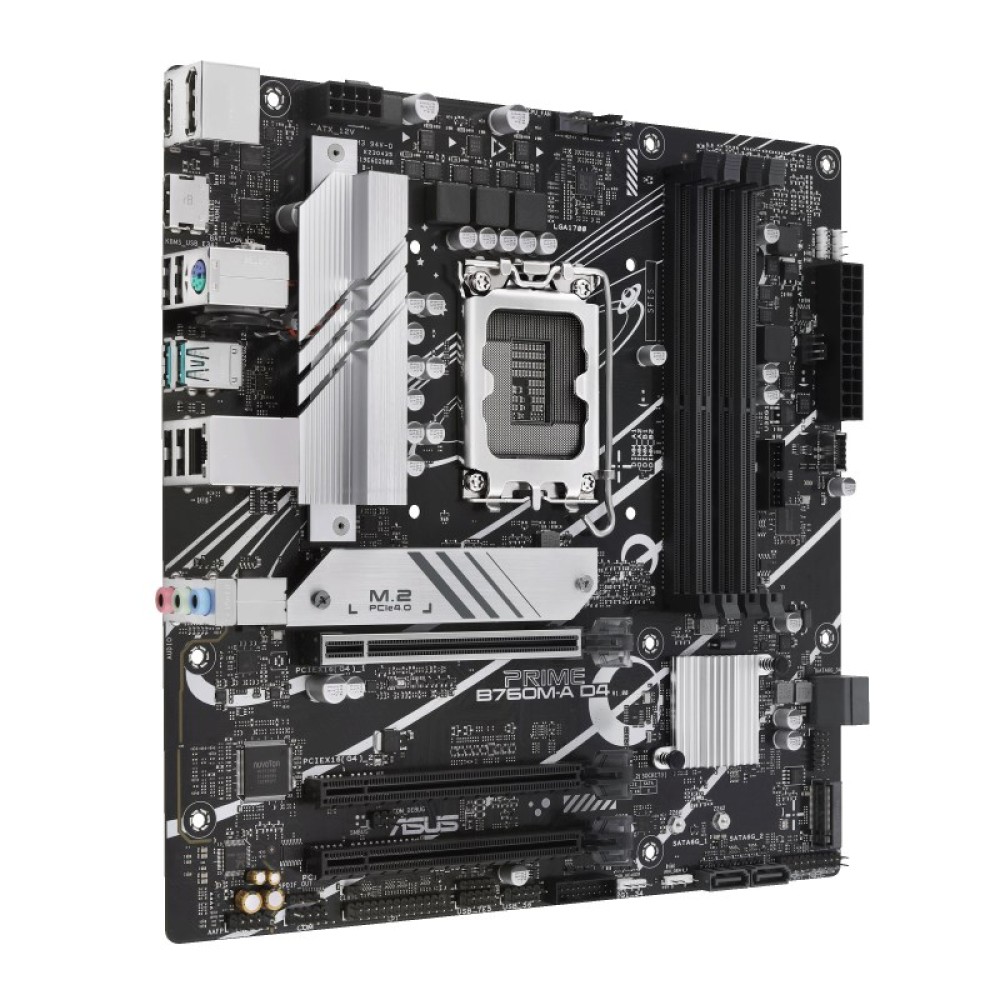

ASUS PRIME B760M-A D4-CSM Intel B760 LGA 1700 micro ATX
- In Stock
- 110.97€
- Ex Tax: 90.96€
- Brand: ASU
- Model: 4711081984061
- Product Code: 90MB1D00-M1EAYC
- Availability: 51 pcs
- ID: 329400
Fast delivery
| Main | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Compatible processor series | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| headphone outputs | 3 |
| Maximum internal memory | 128 GB |
| memory channels | Dual-channel |
| Memory slots type | DIMM |
| microphone in | Yes |
| motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| processor manufacturer | Intel |
| processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID levels | 1, 10, 0, 5 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 3000, 5333 MHz, 3400, 2933, 3600, 3466, 3733, 4400, 5000, 3200, 2666 MHz, 4266, 3333, 2400, 2800, 5066, 4000, 4800, 2133 MHz, 4600 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Width | 244 mm |
| WiFi | No |
| Windows operating systems supported | Windows 11, Windows 10 x64 |
