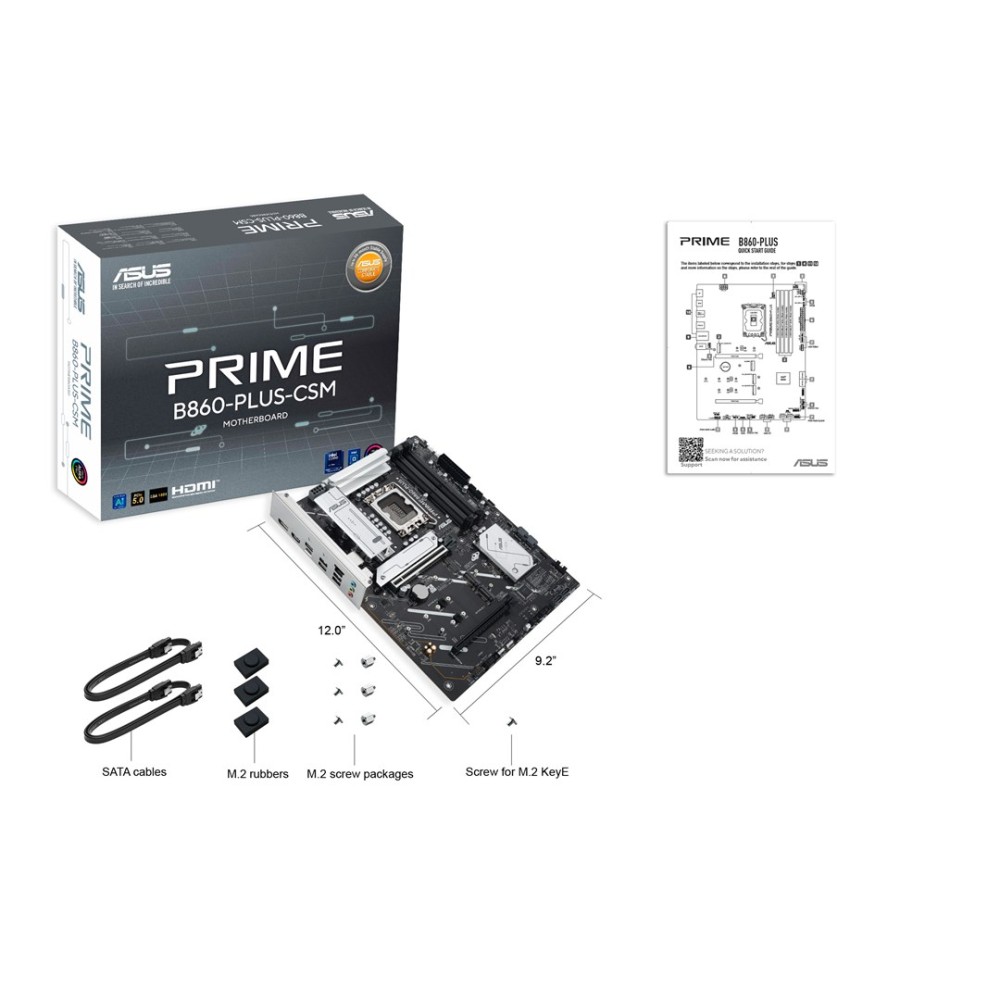

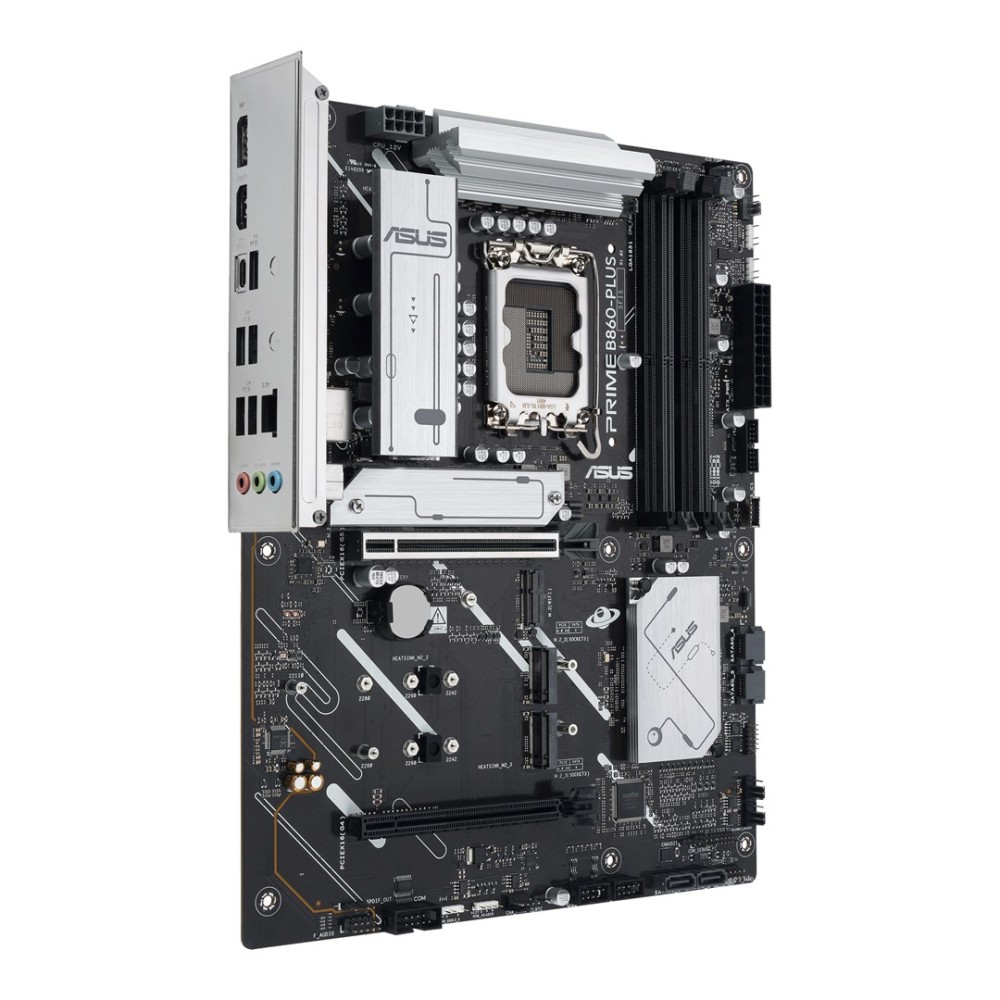

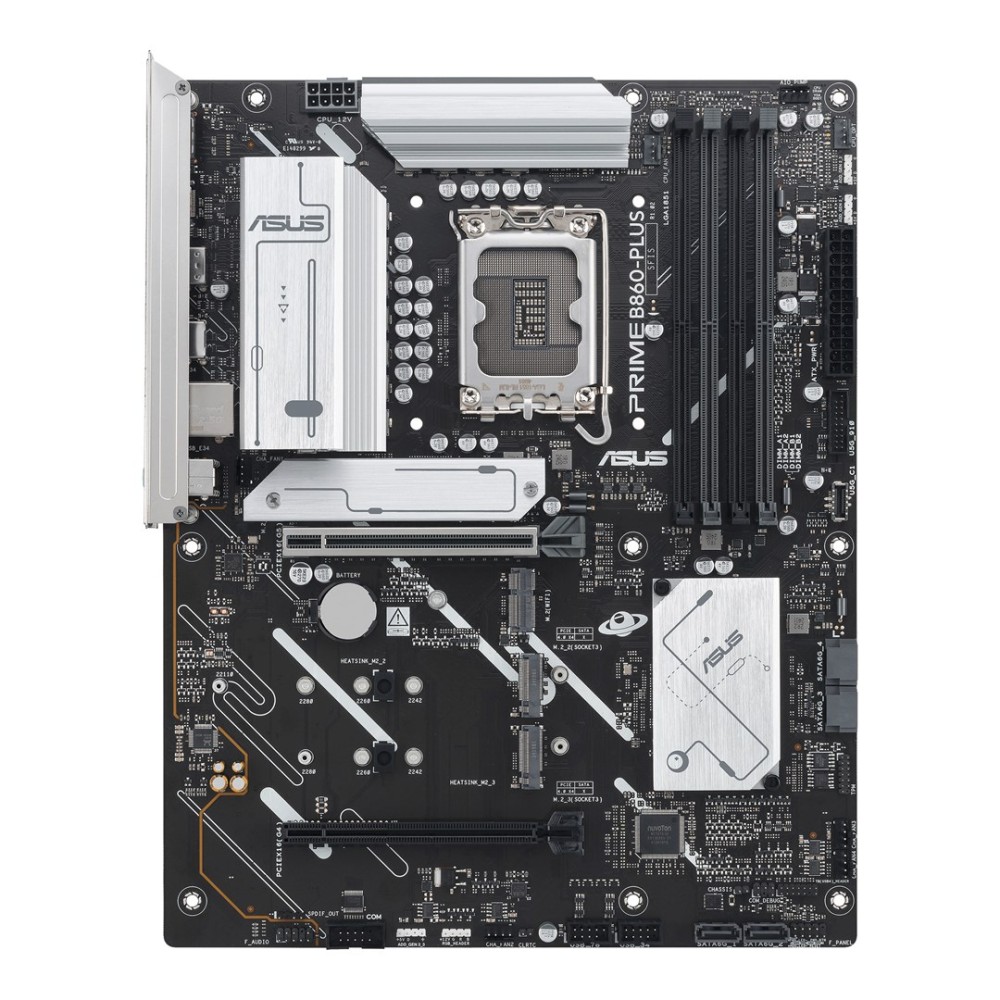

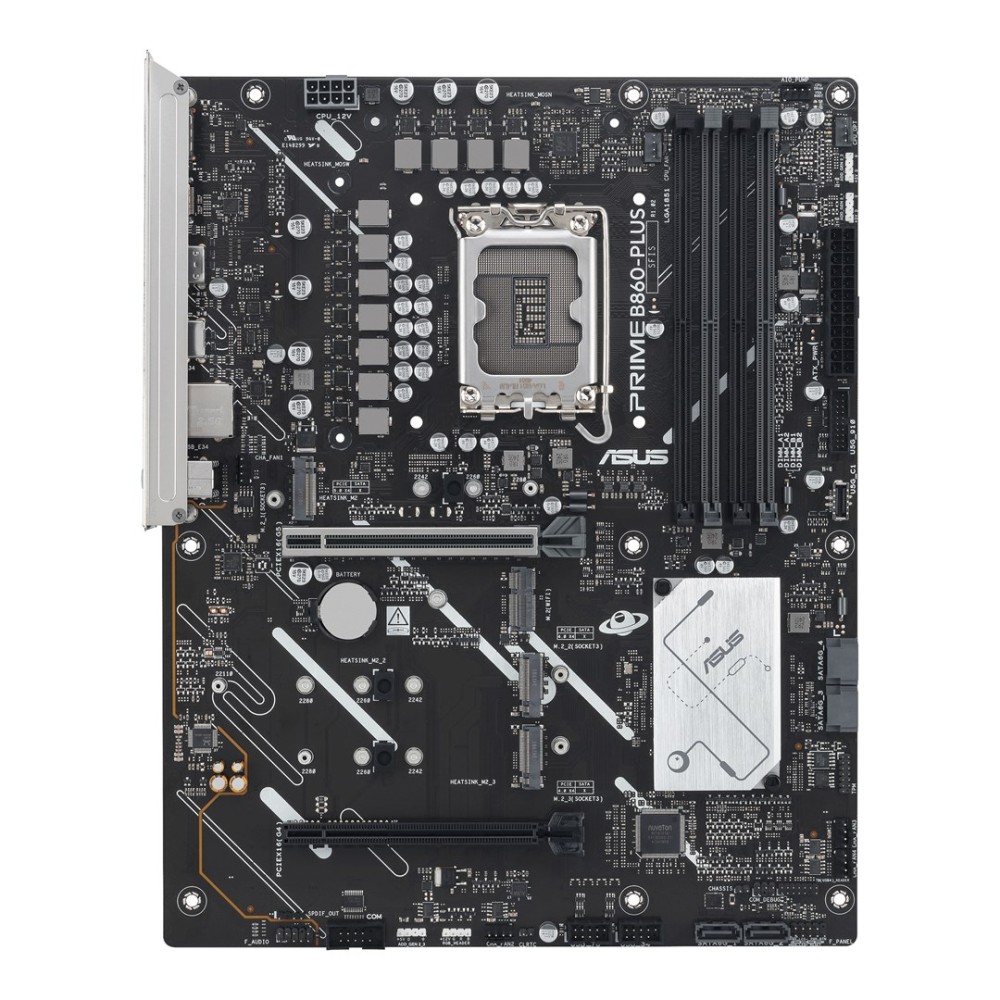

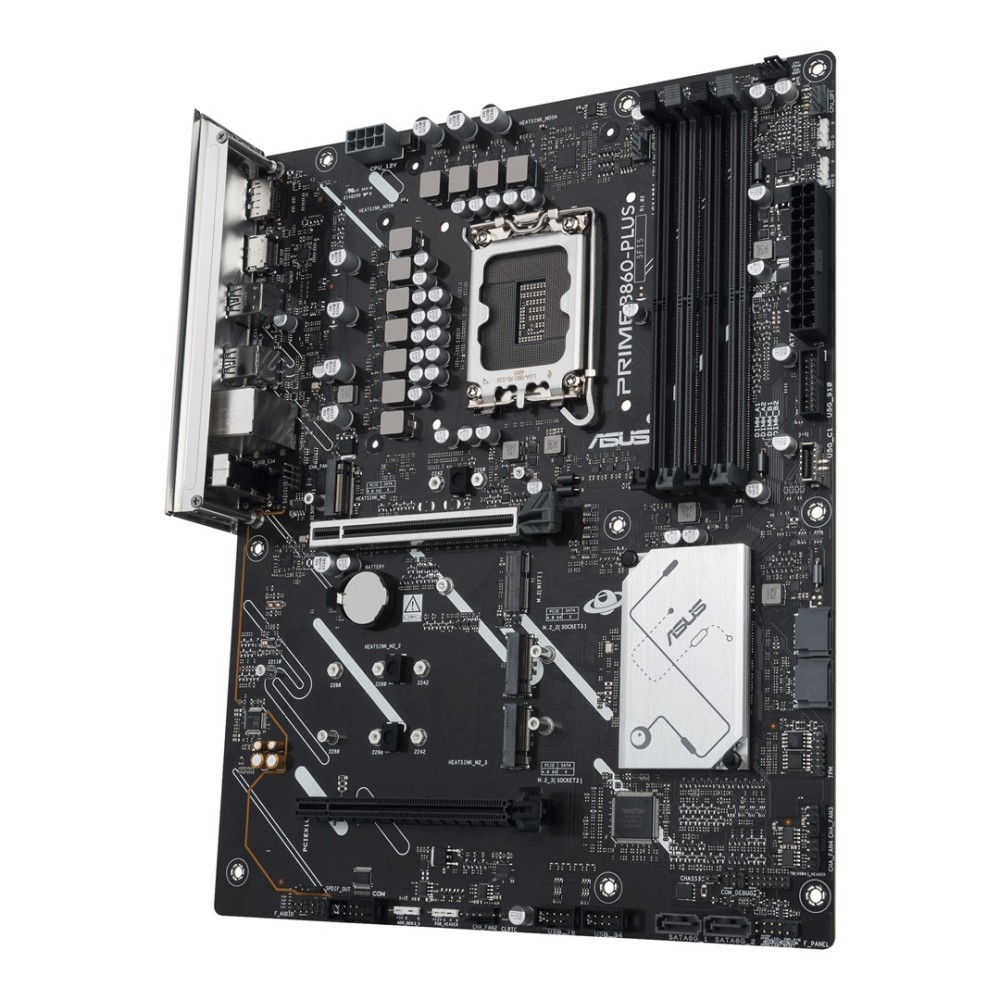

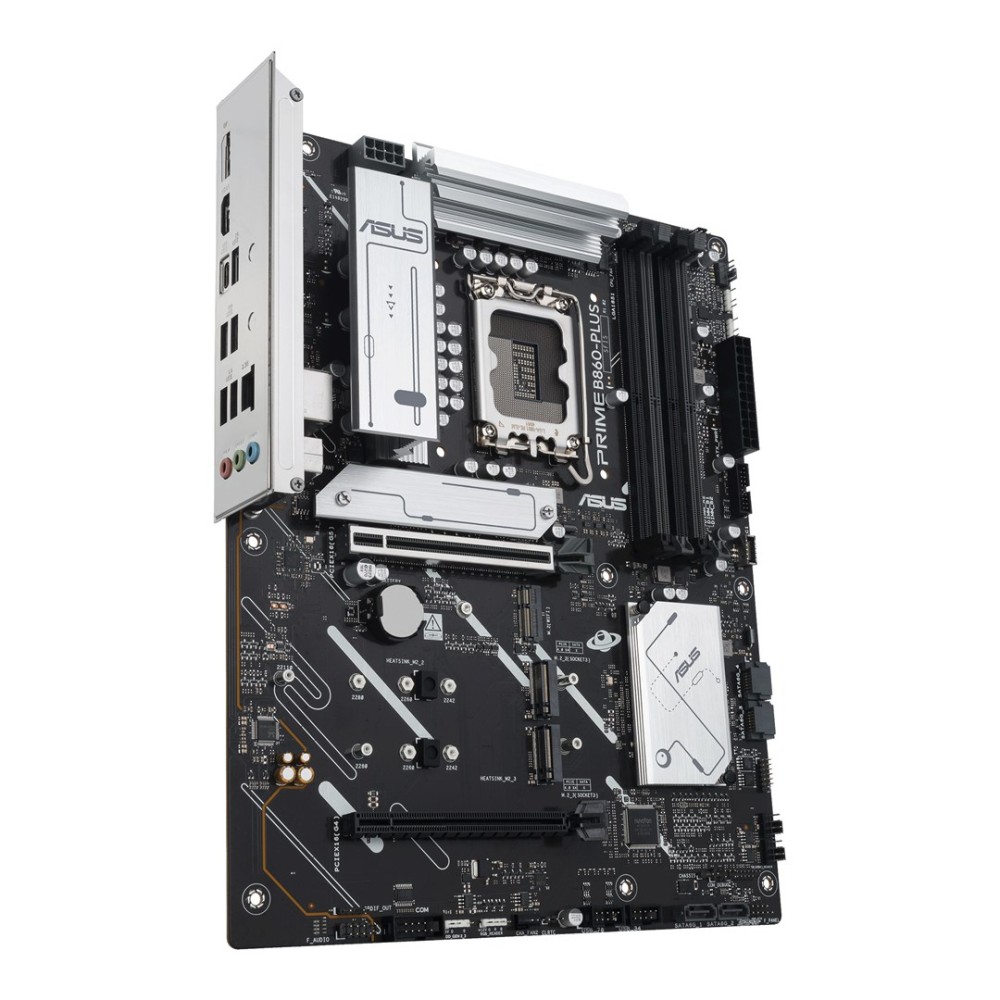

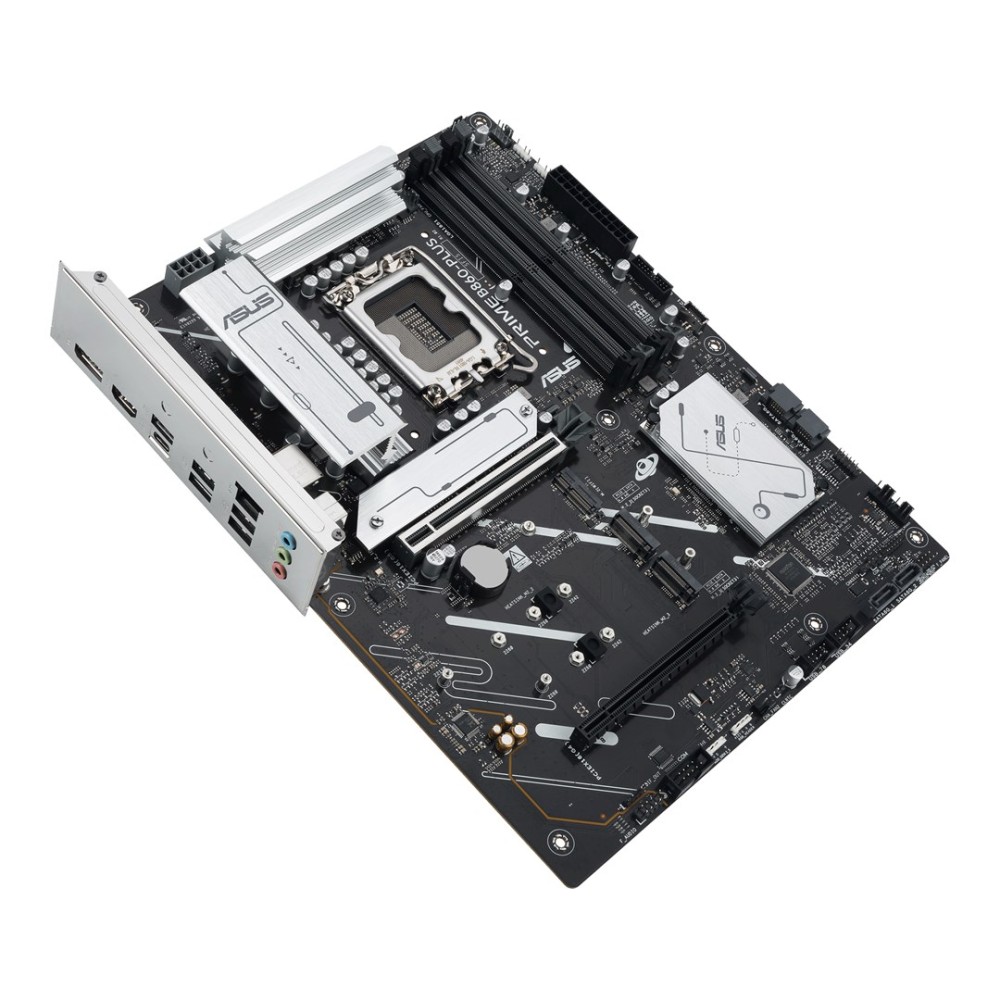

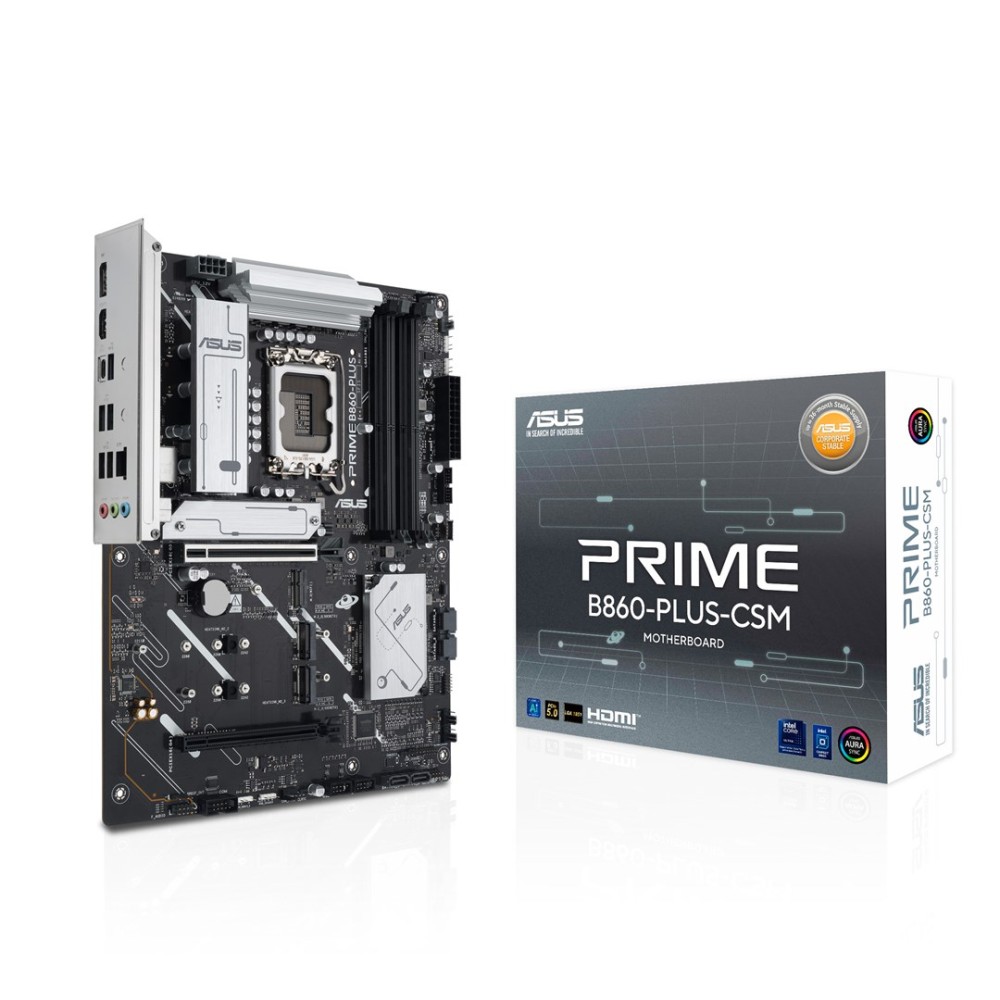

ASUS PRIME B860-PLUS-CSM Intel B860 LGA 1851 (Socket V1) ATX
- In Stock
- 178.18€
- Ex Tax: 143.69€
Monthly payment from: 7.78 EUR
- Brand: ASU
- Model: 4711387814857
- Product Code: 90MB1KA0-M0EAYC
- Availability: 8 pcs
- ID: 363568
Fast delivery
| Main | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Chassis intrusion connector | Yes |
| Compatible processor series | Intel Core Ultra (Series 2) |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| Height | 49 mm |
| line-in | Yes |
| Maximum internal memory | 256 GB |
| memory channels | Dual-channel |
| Memory slots type | DIMM |
| microphone in | Yes |
| motherboard chipset | Intel B860 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of CPU fan connectors | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 7 |
| package depth | 372 mm |
| package height | 302 mm |
| package weight | 1.56 kg |
| package width | 377 mm |
| Parallel processing technology support | Not supported |
| PCI Express x16 (Gen 4.x) slots | 1 |
| processor manufacturer | Intel |
| processor socket | LGA 1851 (Socket V1) |
| product colour | Multicolour |
| RAID levels | 5, 0, 1, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speed (max) | 8666 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| weight | 896 g |
| Width | 305 mm |
| WiFi | No |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
