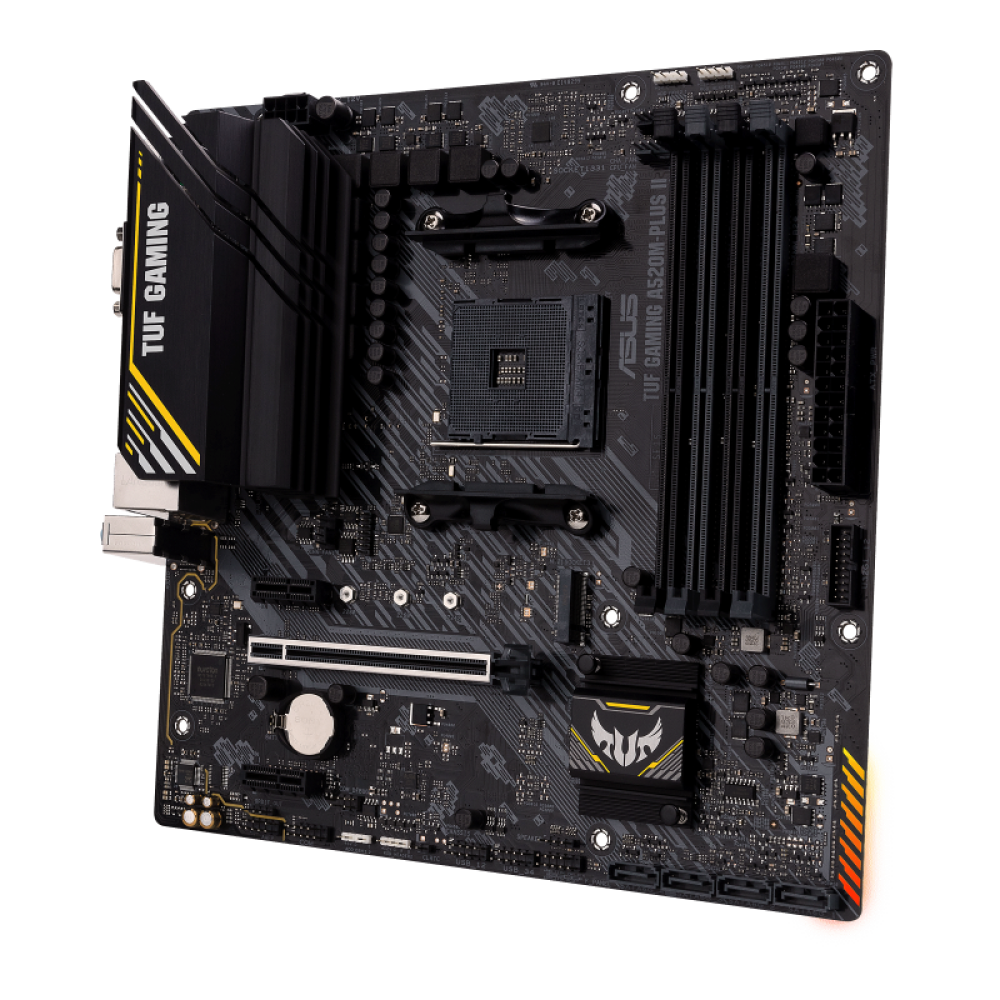

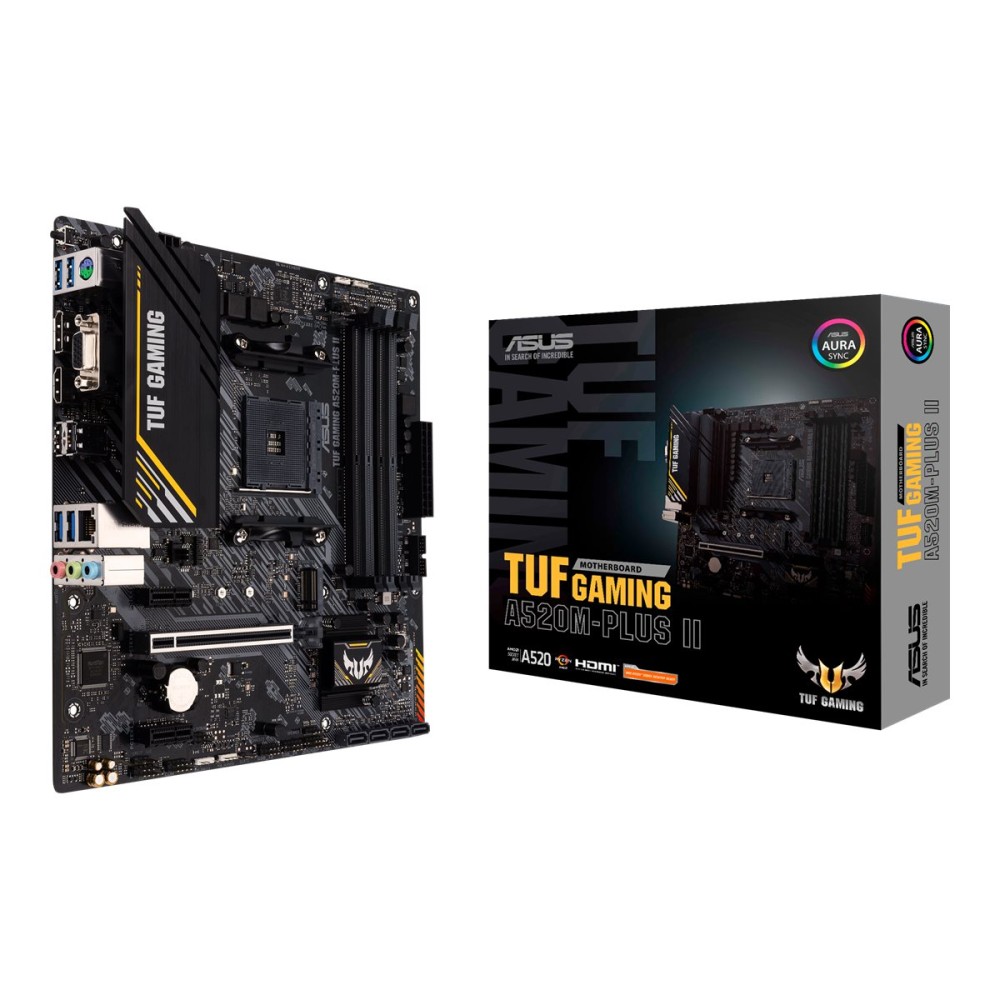

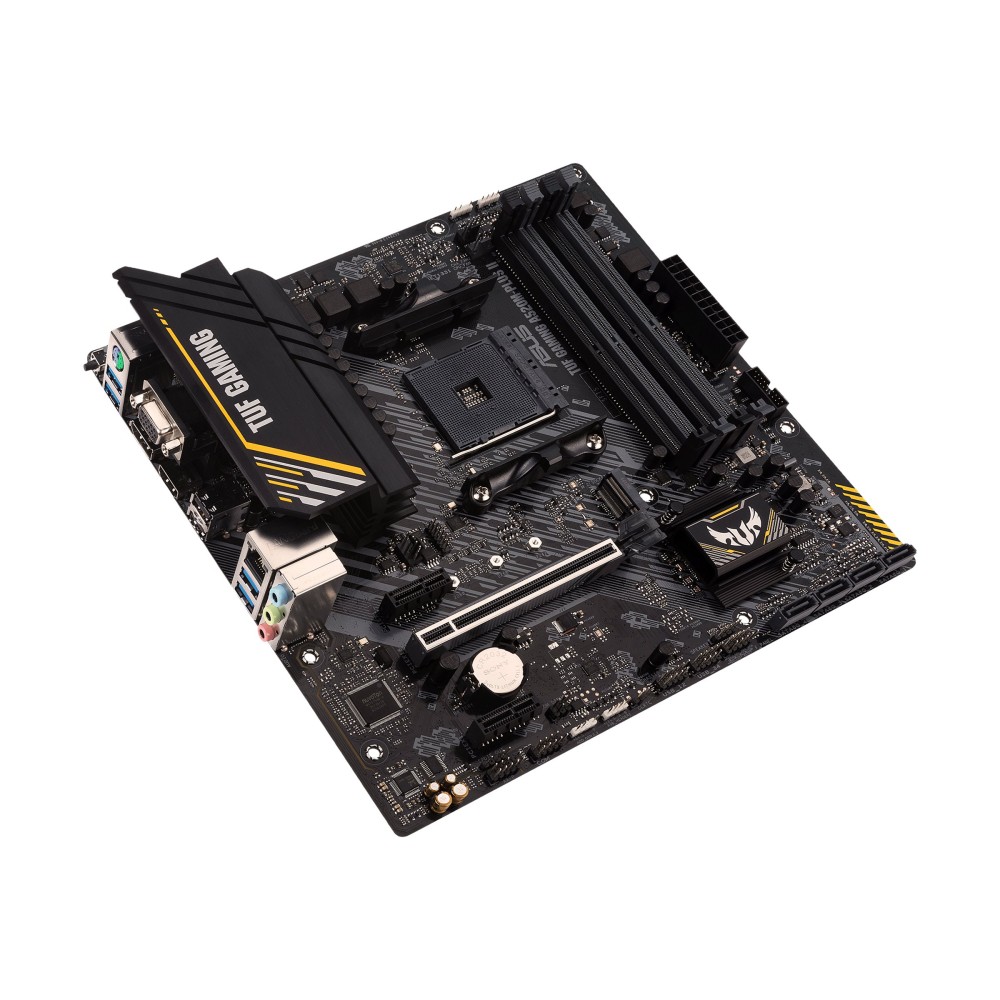

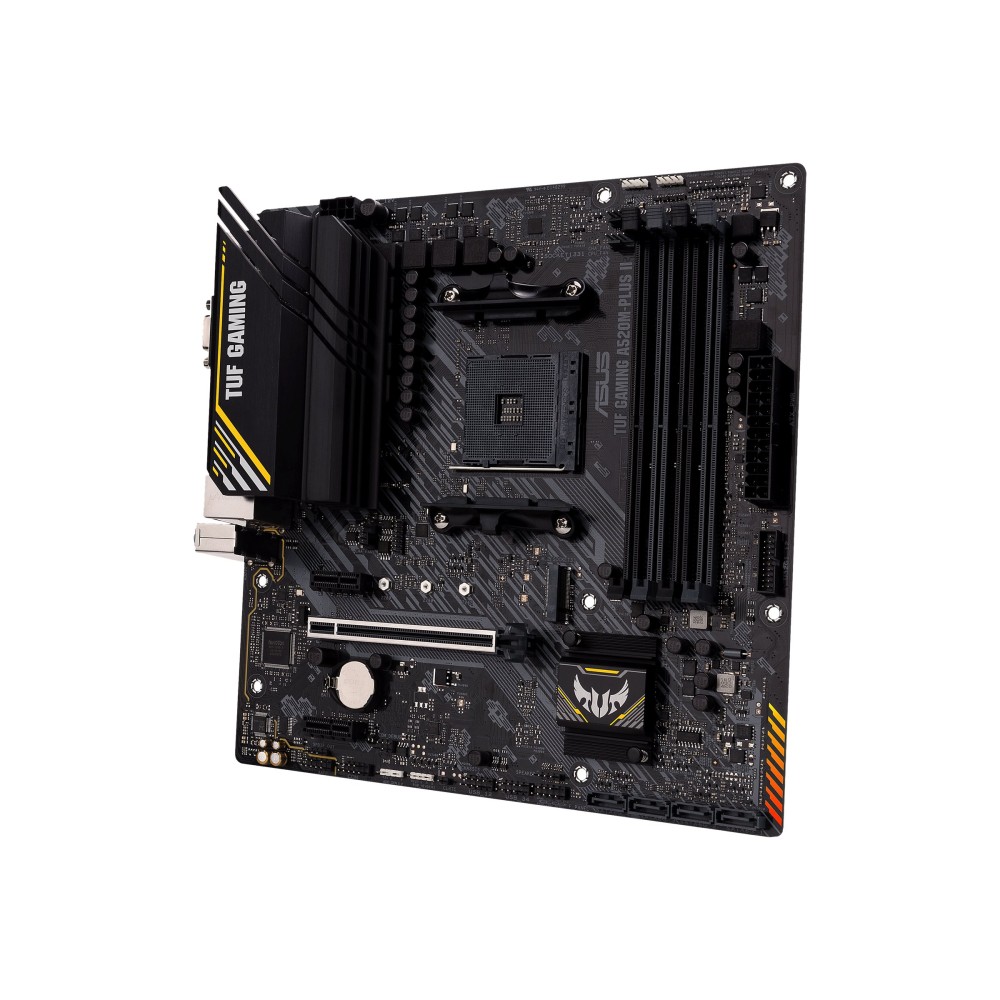

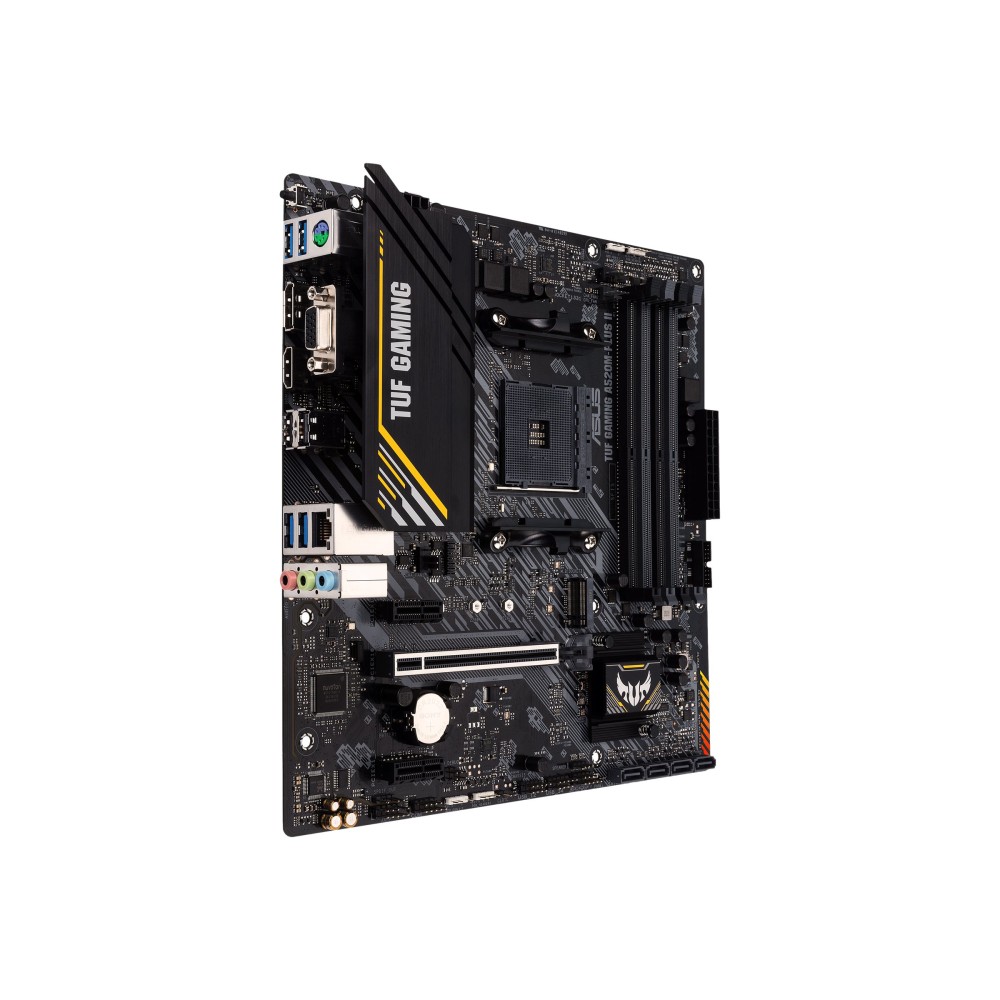

ASUS TUF GAMING A520M-PLUS II AMD A520 Socket AM4 micro ATX
- In Stock
- 105.70€
- Ex Tax: 86.64€
- Brand: ASU
- Model: 4711081154457
- Product Code: 90MB17G0-M0EAY0
- Availability: 8 pcs
- ID: 329420
Fast delivery
| Main | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| audio chip | Realtek ALC887 / Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |

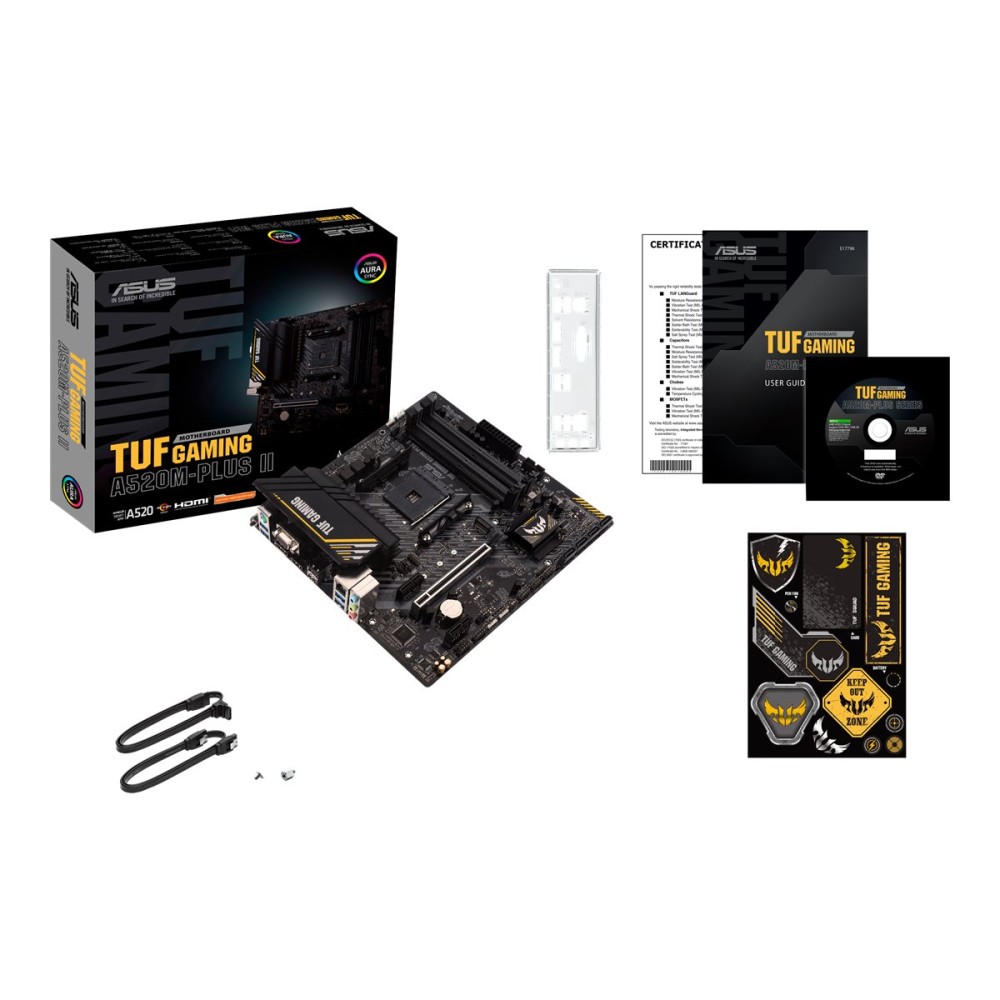

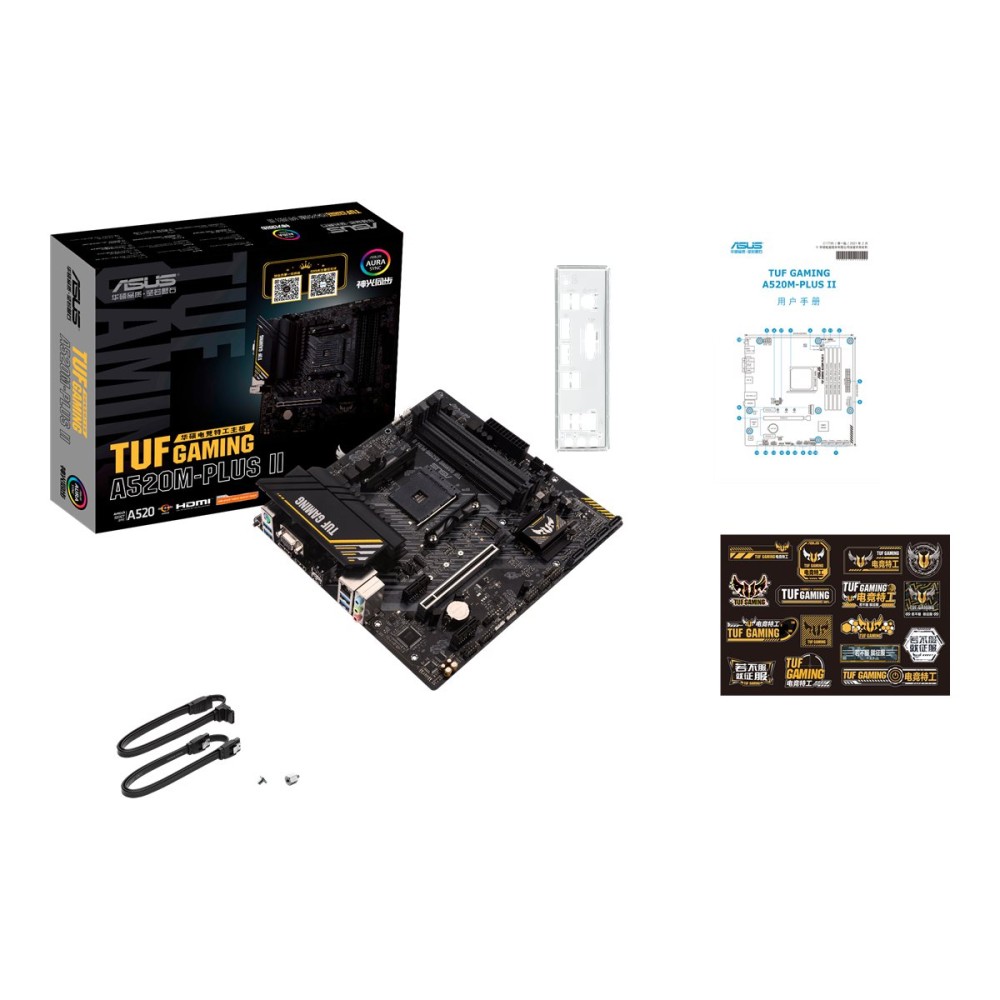

| Cables included | SATA |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 5000 Series, AMD Ryzen 3000 Series |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| ECC сompatibility | ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Harmonized System (HS) code | 84733020 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| headphone outputs | 3 |
| Height | 67 mm |
| Maximum internal memory | 128 GB |
| Maximum resolution | 3840 x 2160 pixels |
| memory channels | Dual-channel |
| Memory slots type | DIMM |
| microphone in | Yes |
| motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| processor manufacturer | AMD |
| processor socket | Socket AM4 |
| PS/2 ports quantity | 1 |
| RAID levels | 10, 0, 1 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 3333, 4466, 2133 MHz, 2400, 2800, 3200, 2666 MHz, 4266, 3866, 4600, 4133, 4000, 4800, 3733, 4400, 3466, 3000, 3600 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Wake-on-LAN ready | Yes |
| weight | 900 g |
| Width | 244 mm |
| WiFi | No |
| Windows operating systems supported | Windows 10 x64 |
