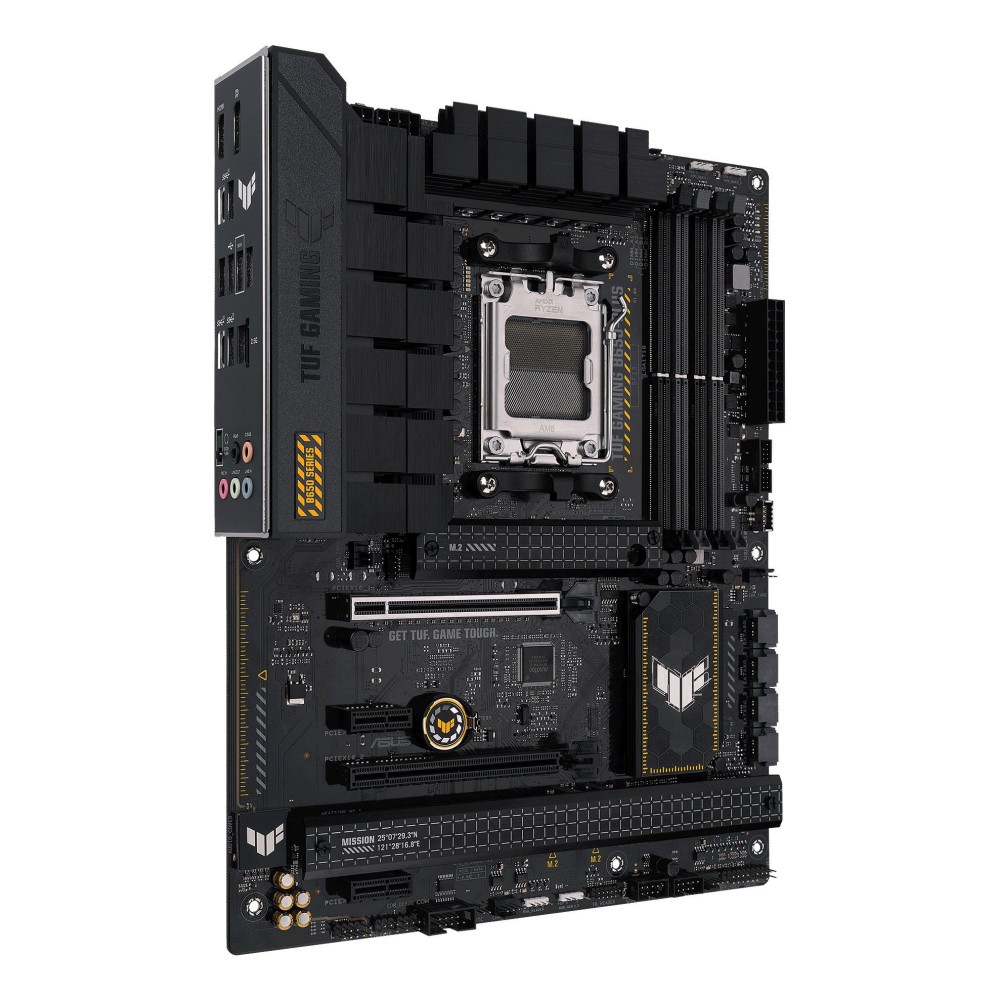

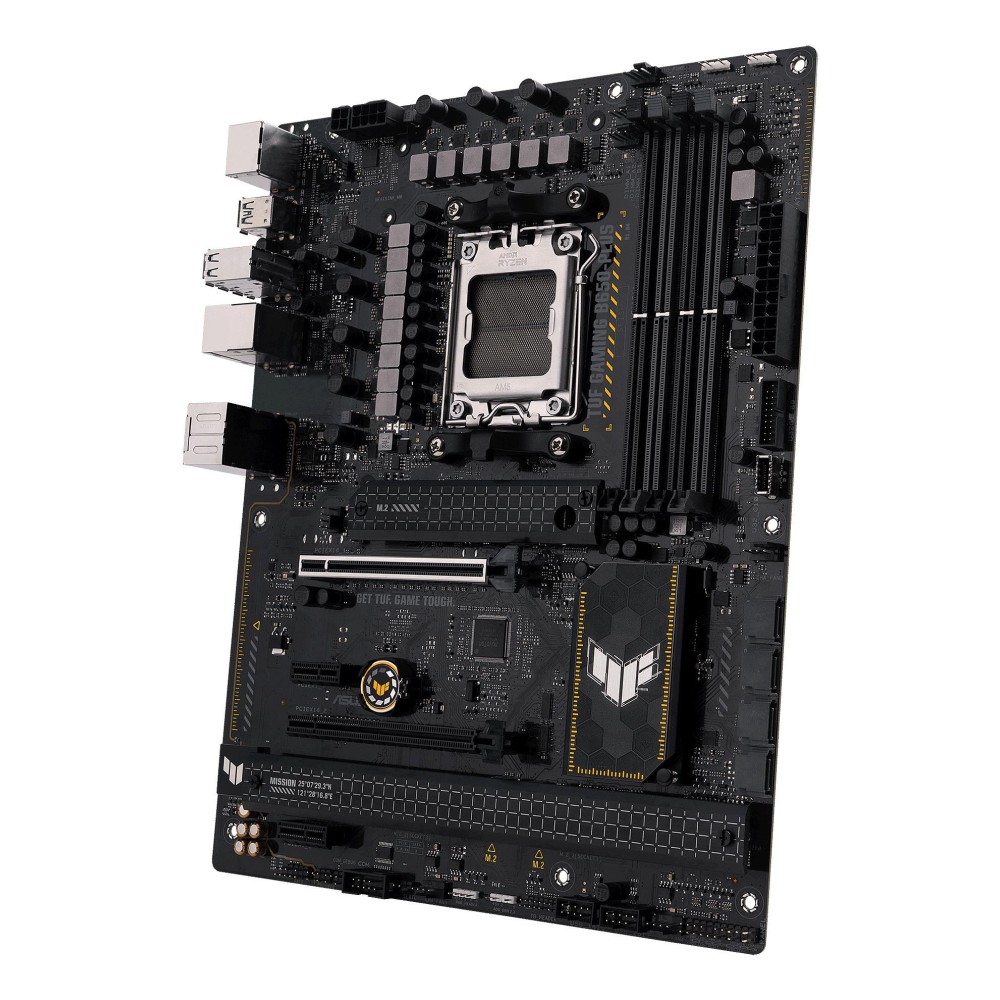

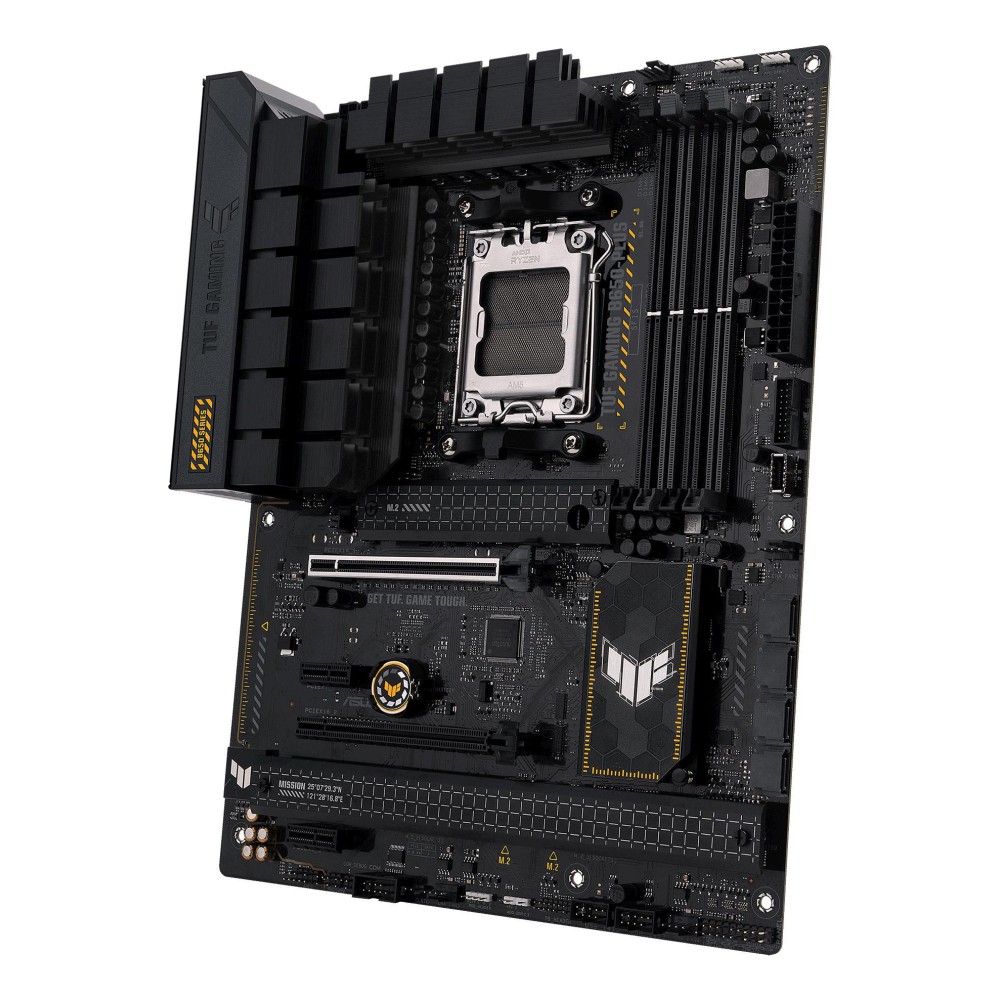

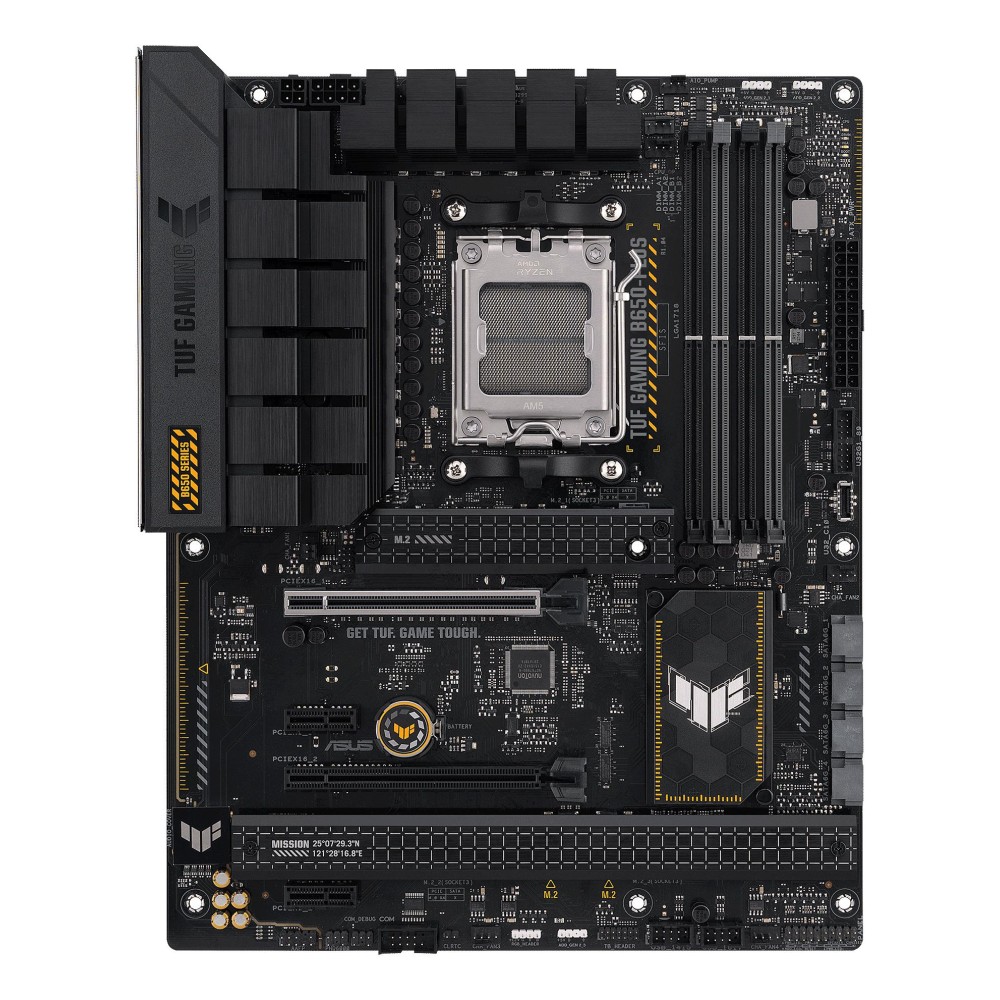

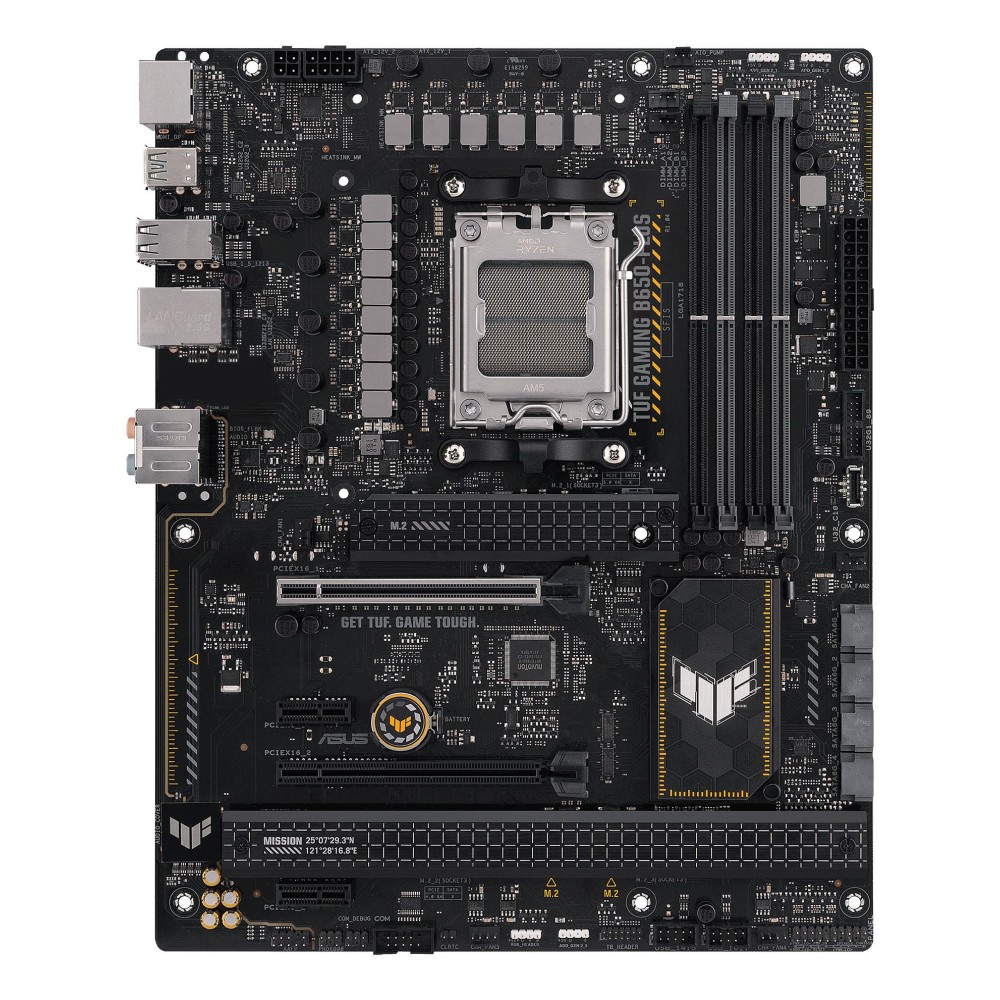

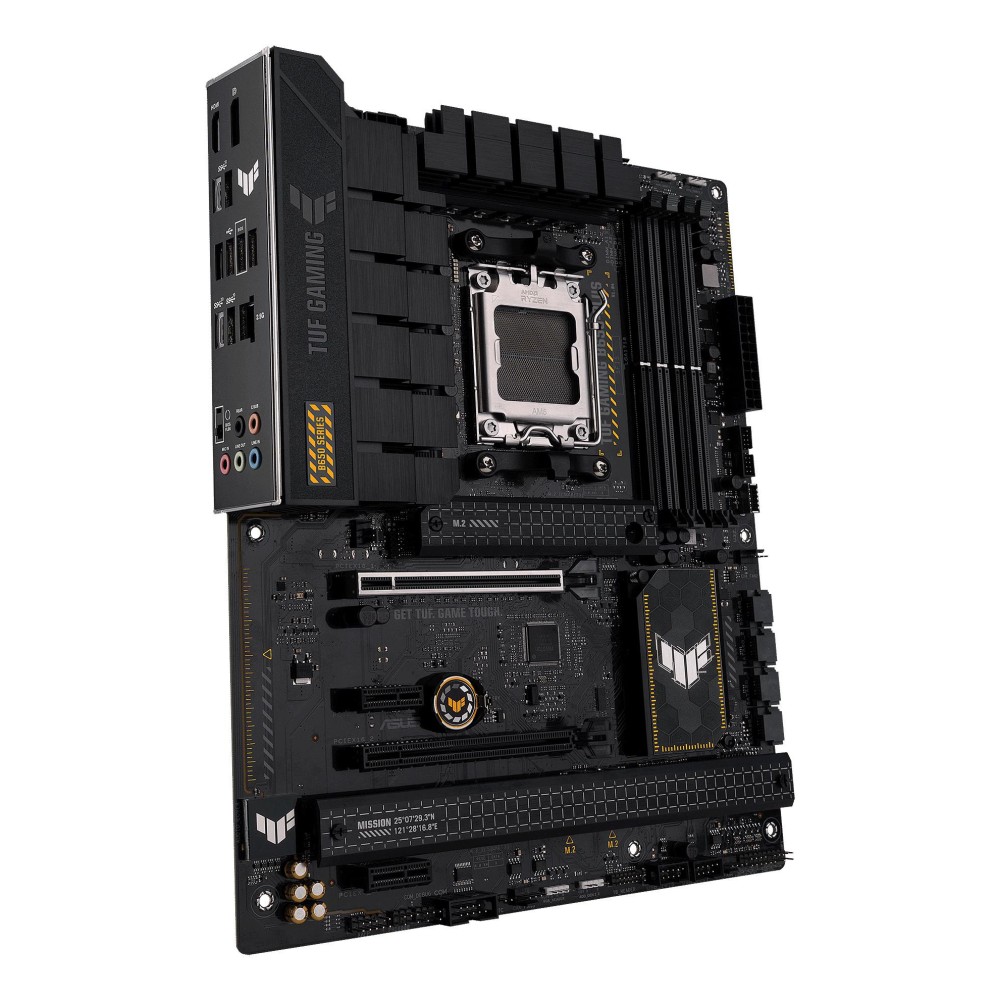

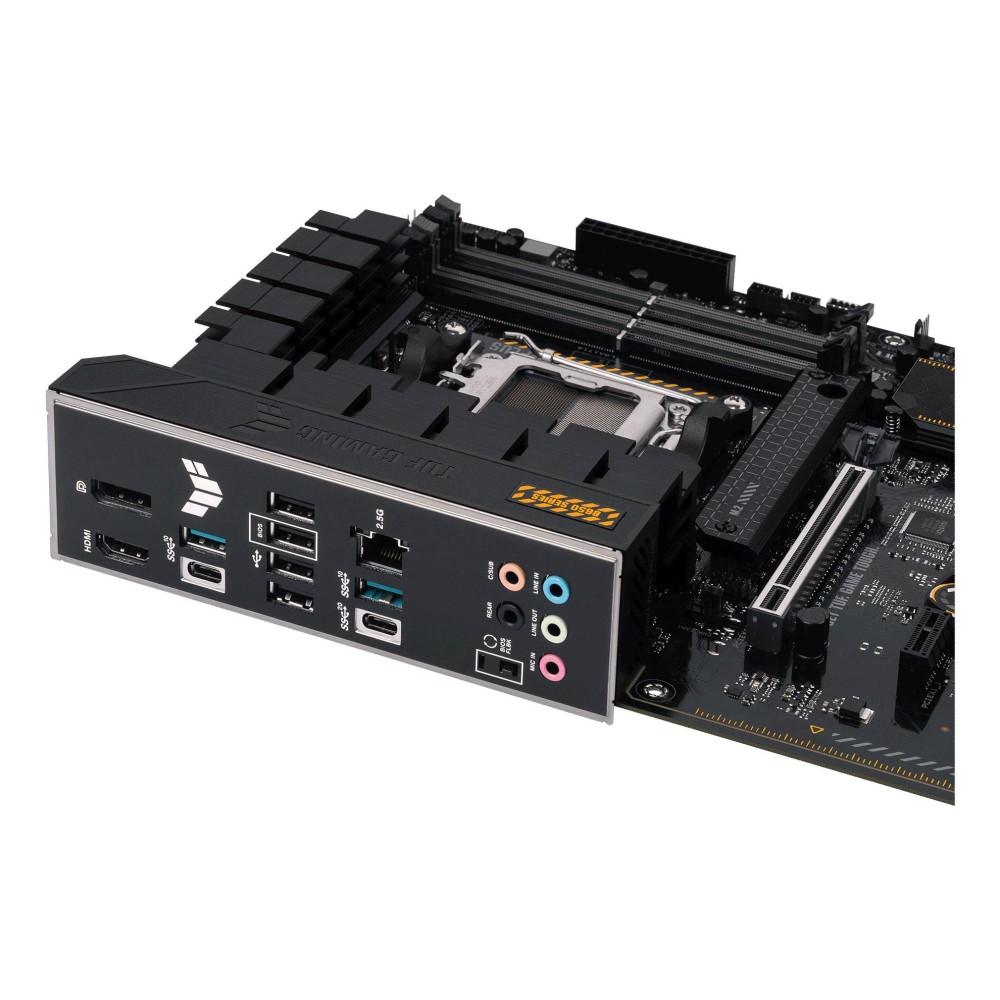

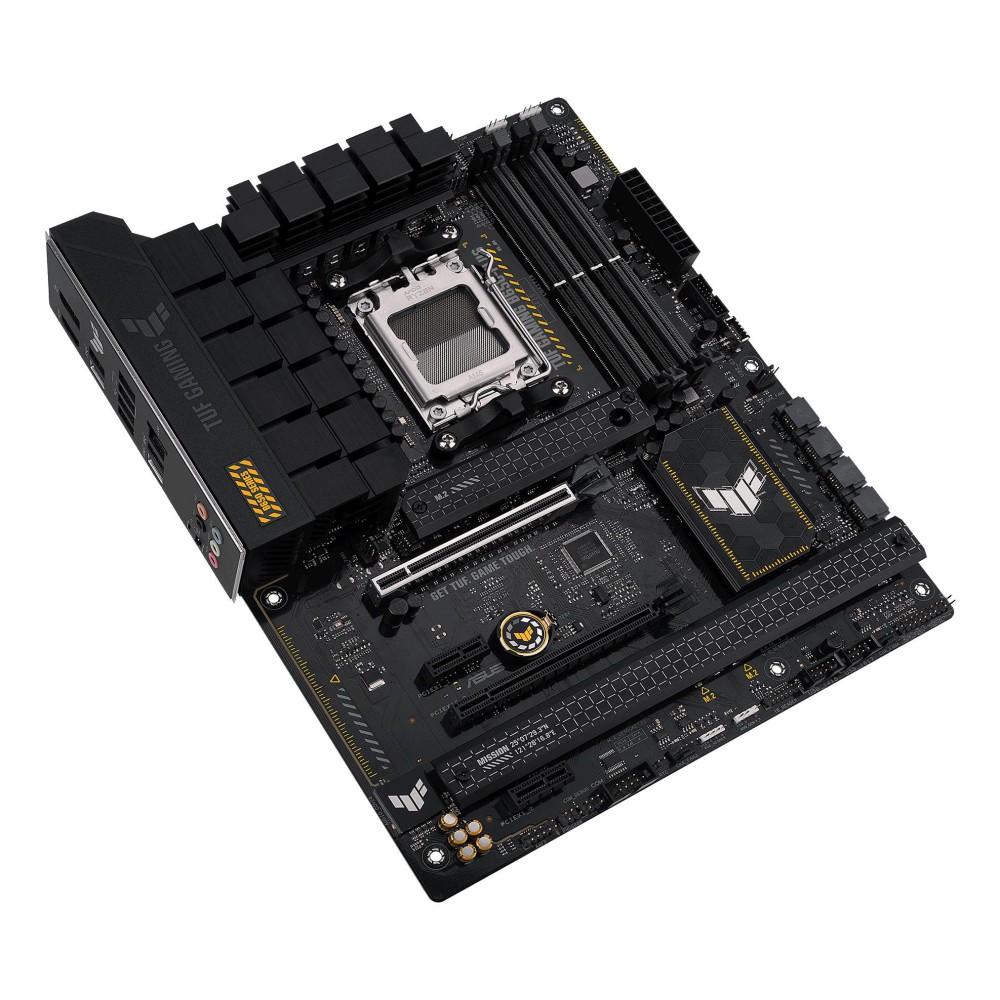

ASUS TUF GAMING B650-PLUS AMD B650 Socket AM5 ATX
- In Stock
- 199.13€
- Ex Tax: 160.59€
Monthly payment from: 8.70 EUR
- Brand: ASU
- Model: 4711081912767
- Product Code: 90MB1BY0-M0EAY0
- Availability: 17 pcs
- ID: 329426
Fast delivery
| Main | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| Back-to-BIOS button | Yes |
| BIOS type | UEFI AMI |
| Compatible processor series | AMD Ryzen 7000 Series |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| headphone outputs | 1 |
| line-in | Yes |
| Maximum internal memory | 128 GB |
| memory channels | Dual-channel |
| Memory slots type | DIMM |
| microphone in | Yes |
| motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| package depth | 273 mm |
| package height | 68 mm |
| package weight | 1.36 kg |
| package width | 338 mm |
| Parallel processing technology support | Not supported |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x4 (Gen 1.x) slots | 2 |
| Power source type | ATX |
| processor manufacturer | AMD |
| processor socket | Socket AM5 |
| RAID levels | 10, 0, 1 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Supported memory clock speed (max) | 6400 MHz |
| Supported memory clock speeds | 5000, 5800, 5400, 4800, 6200, 6400 MHz, 6000, 5200, 5600 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt headers | 1 |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Width | 305 mm |
| WiFi | No |
| Windows operating systems supported | Windows 11 x64, Windows 10 |
