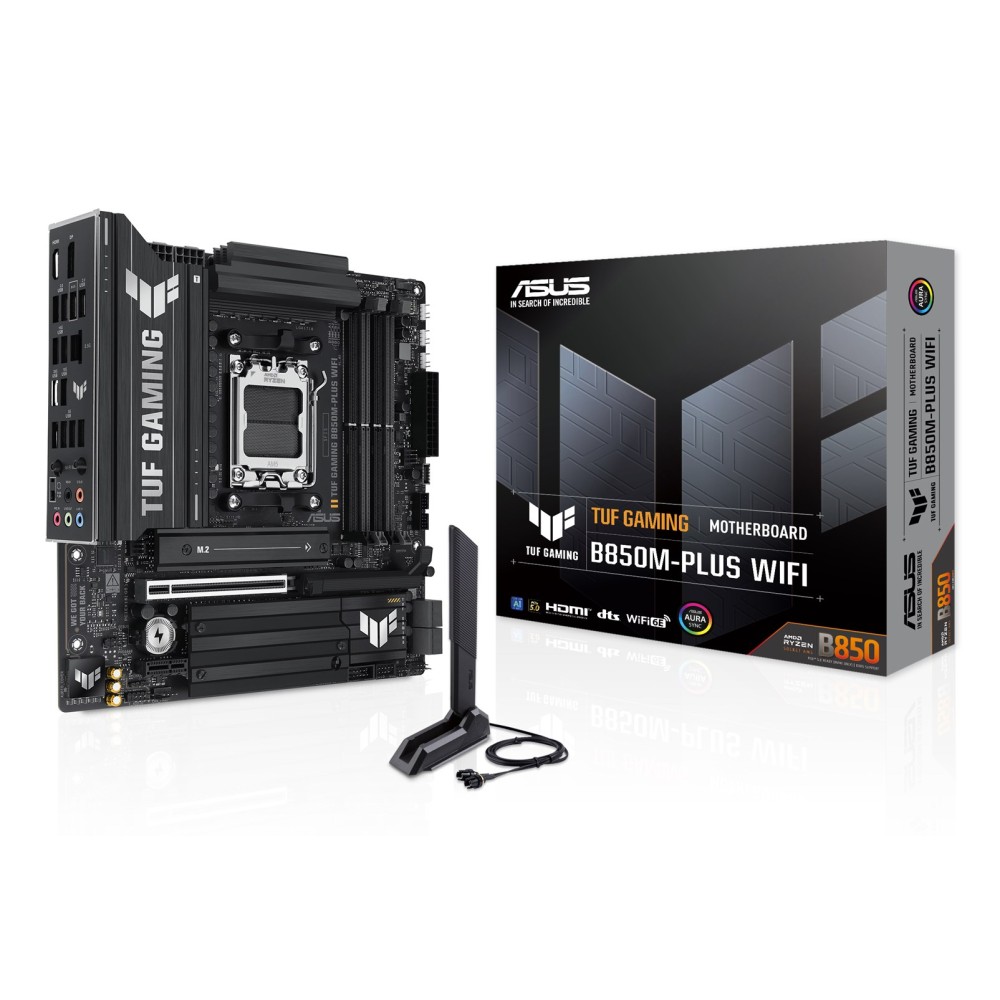

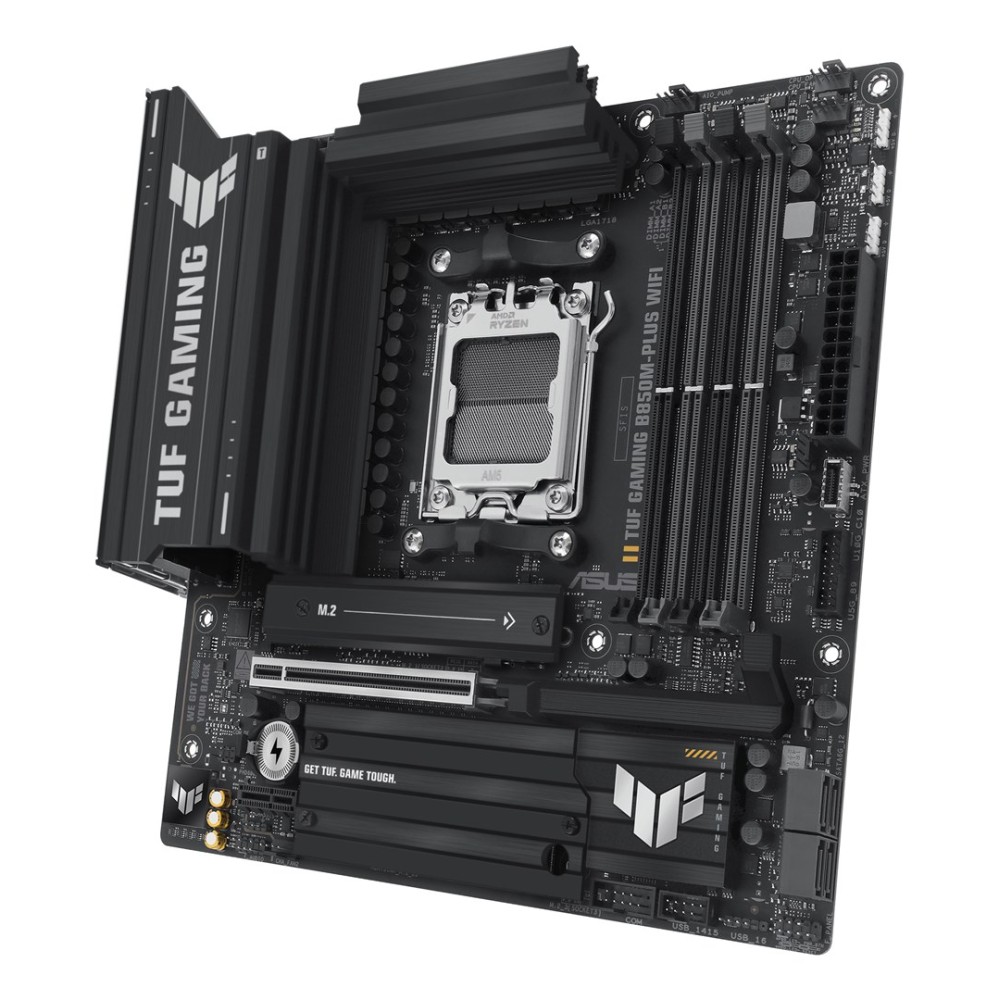

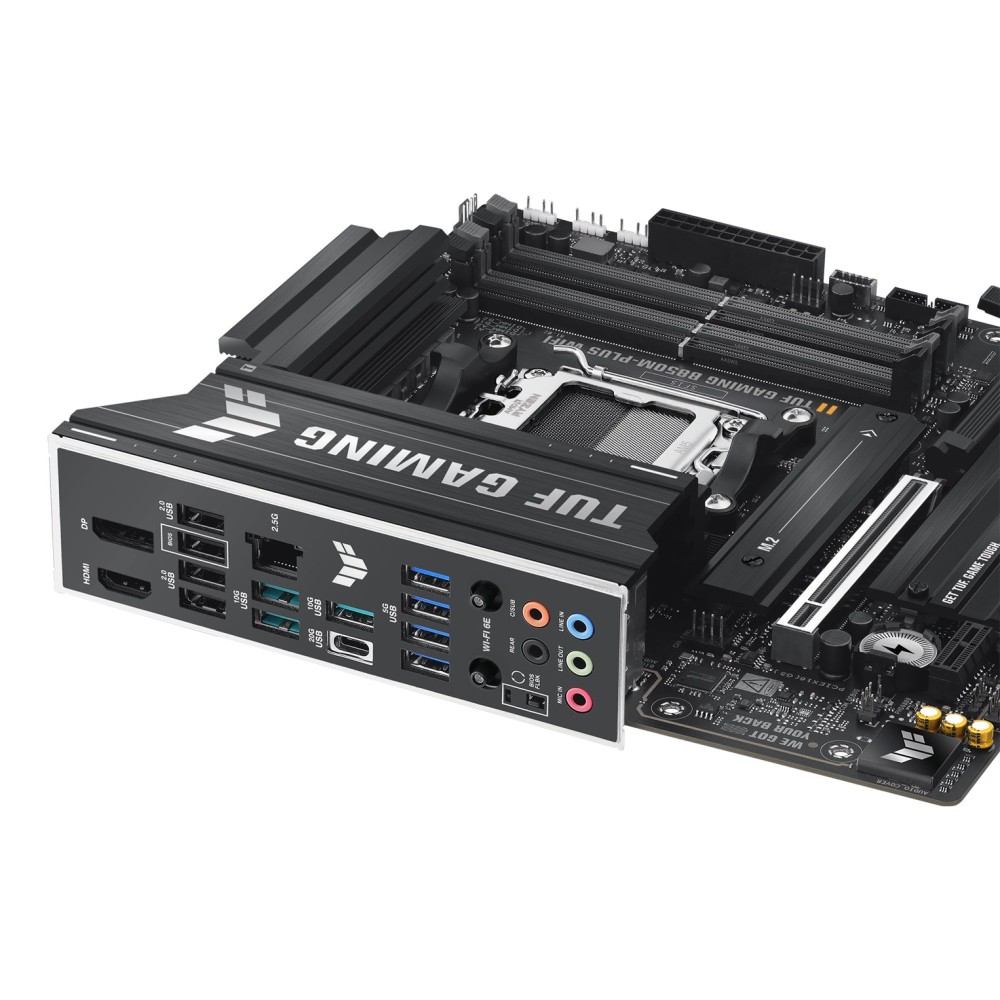

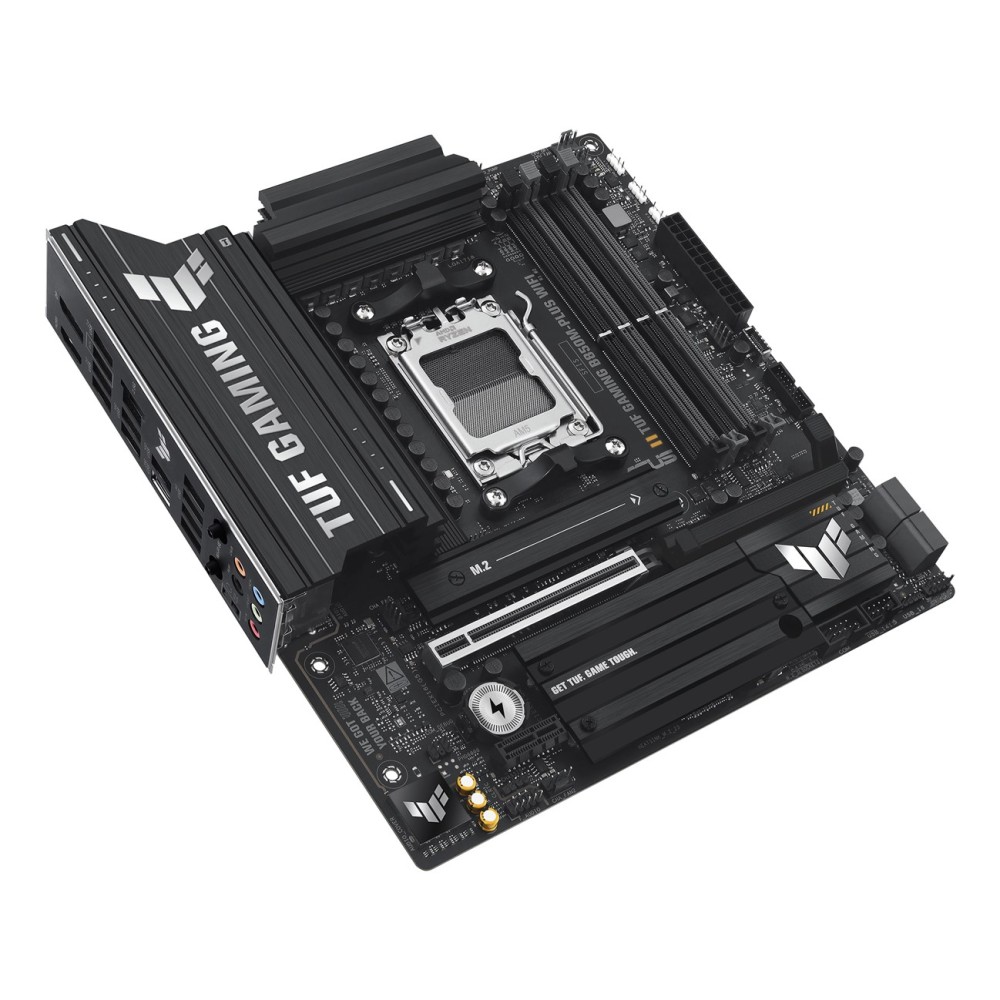

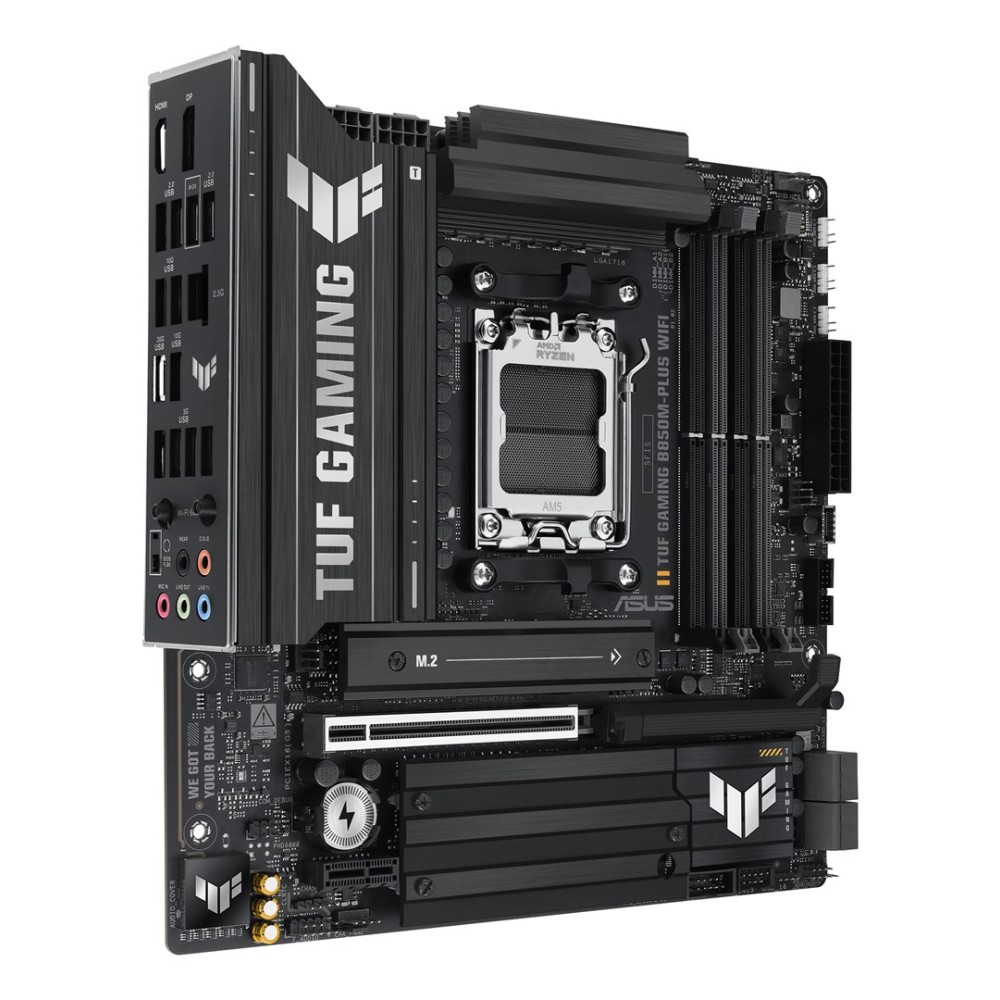

ASUS TUF GAMING B850M-PLUS WIFI AMD B850 Socket AM5 micro ATX
- In Stock
- 251.37€
- Ex Tax: 206.04€
Monthly payment from: 11.16 EUR
- Brand: ASU
- Model: 4711387764916
- Product Code: 90MB1IY0-M0EAY0
- Availability: 17 pcs
- ID: 344477
Fast delivery
| Main | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| Maximum internal memory | 192 GB |
| memory channels | Dual-channel |
| Memory slots type | DIMM |
| motherboard chipset | AMD B850 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 7 |
| package depth | 275 mm |
| package height | 67.5 mm |
| package weight | 1.68 kg |
| package width | 275 mm |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| processor manufacturer | AMD |
| processor socket | Socket AM5 |
| RAID levels | 5, 10, 0, 1 |
| RAID support | Yes |
| S/PDIF out connector | Yes |
| Screws included | Yes |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty. |
| weight | 1.2 kg |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Width | 244 mm |
| WiFi | Yes |
| WiFi-AP antenna jack | 1 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
