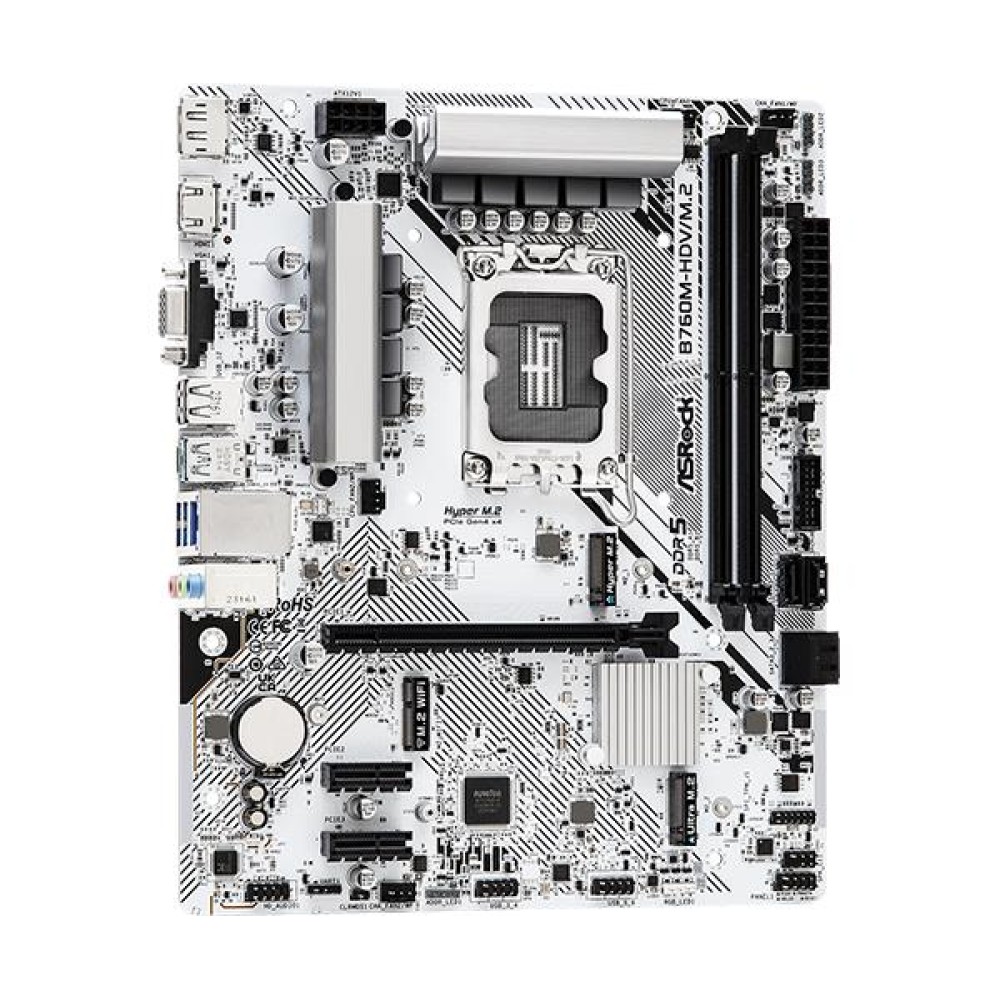

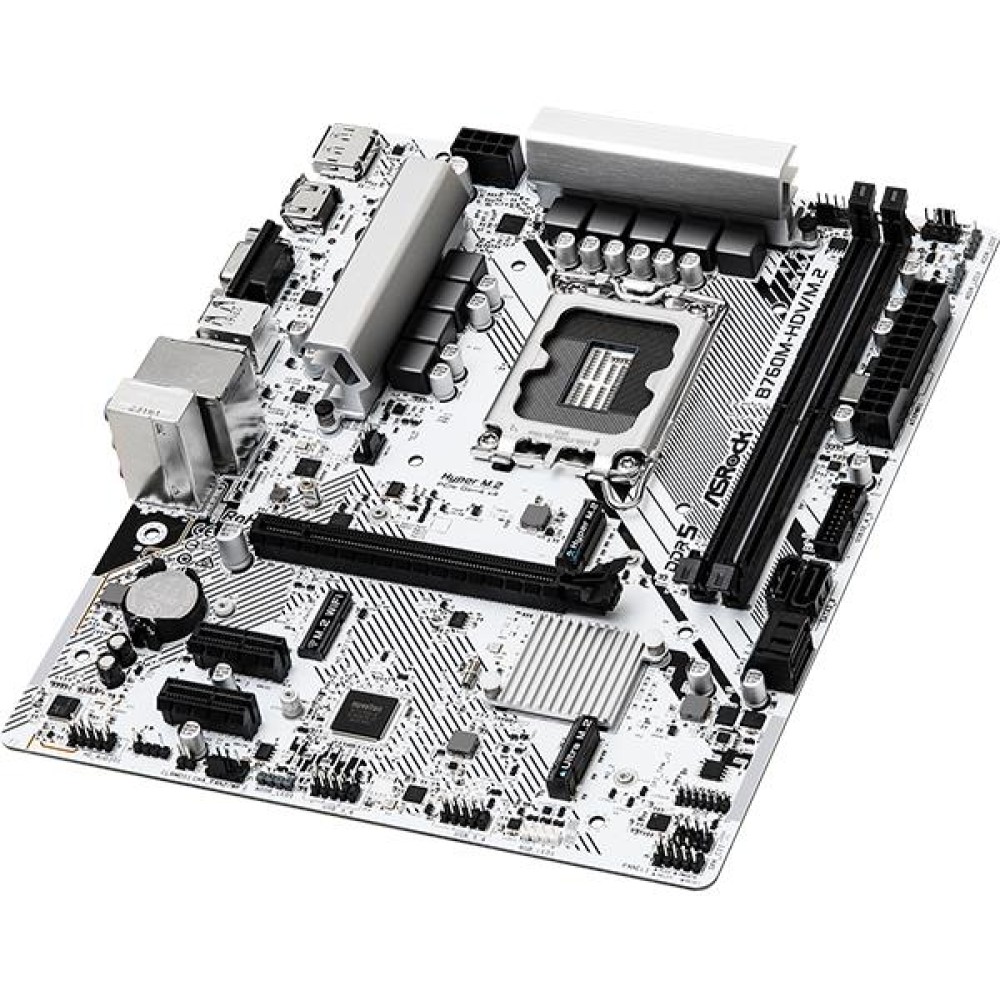

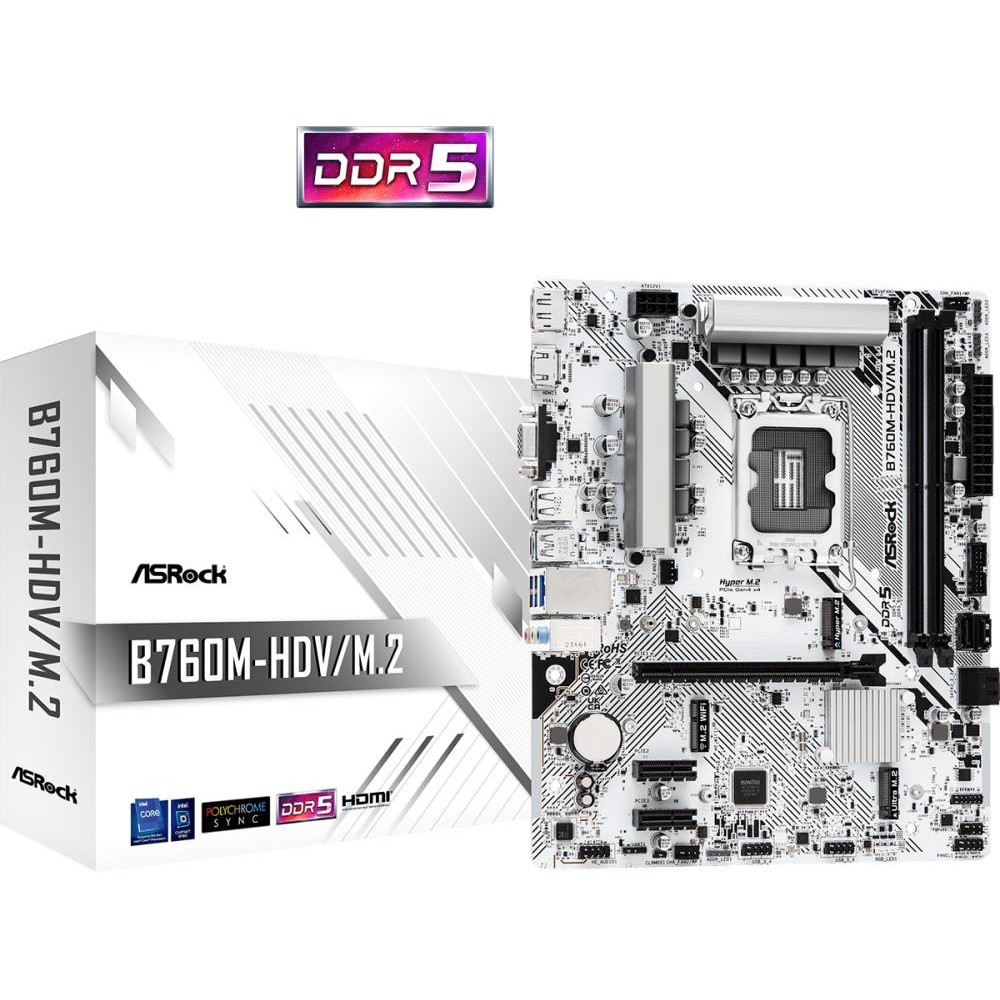

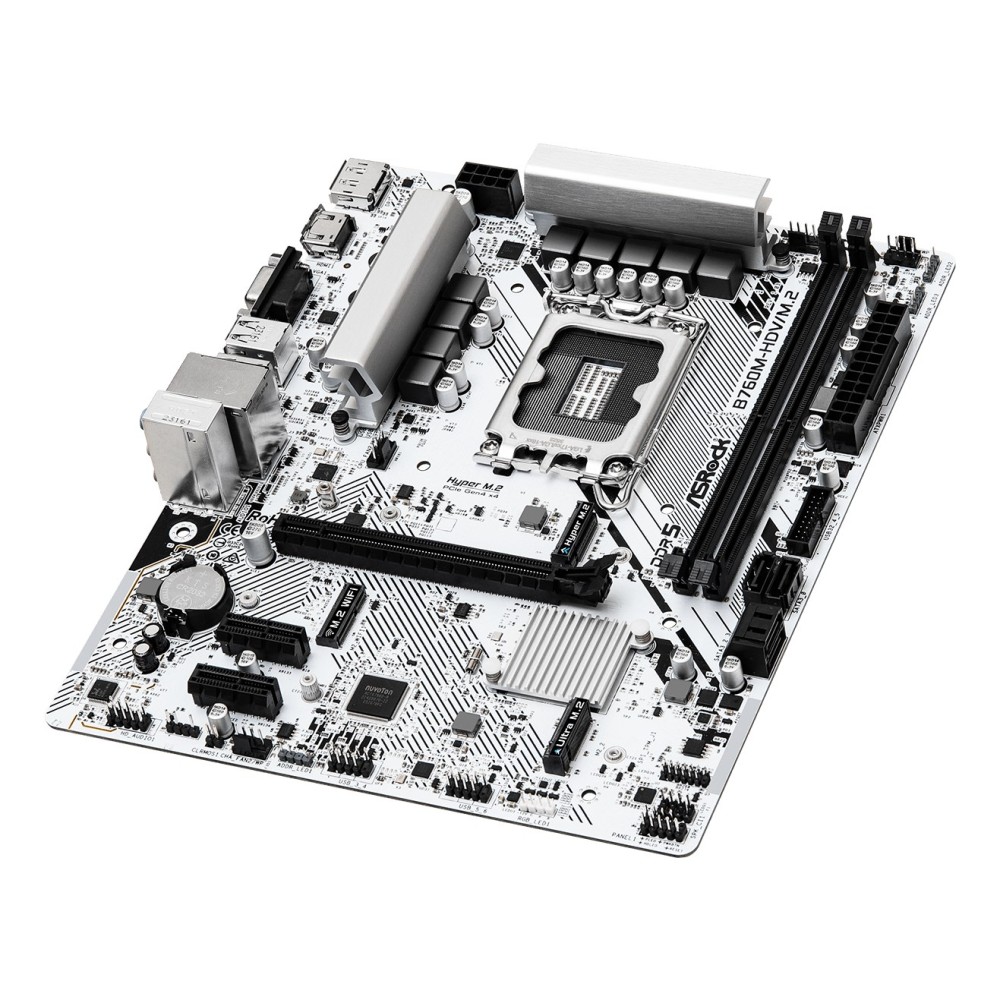

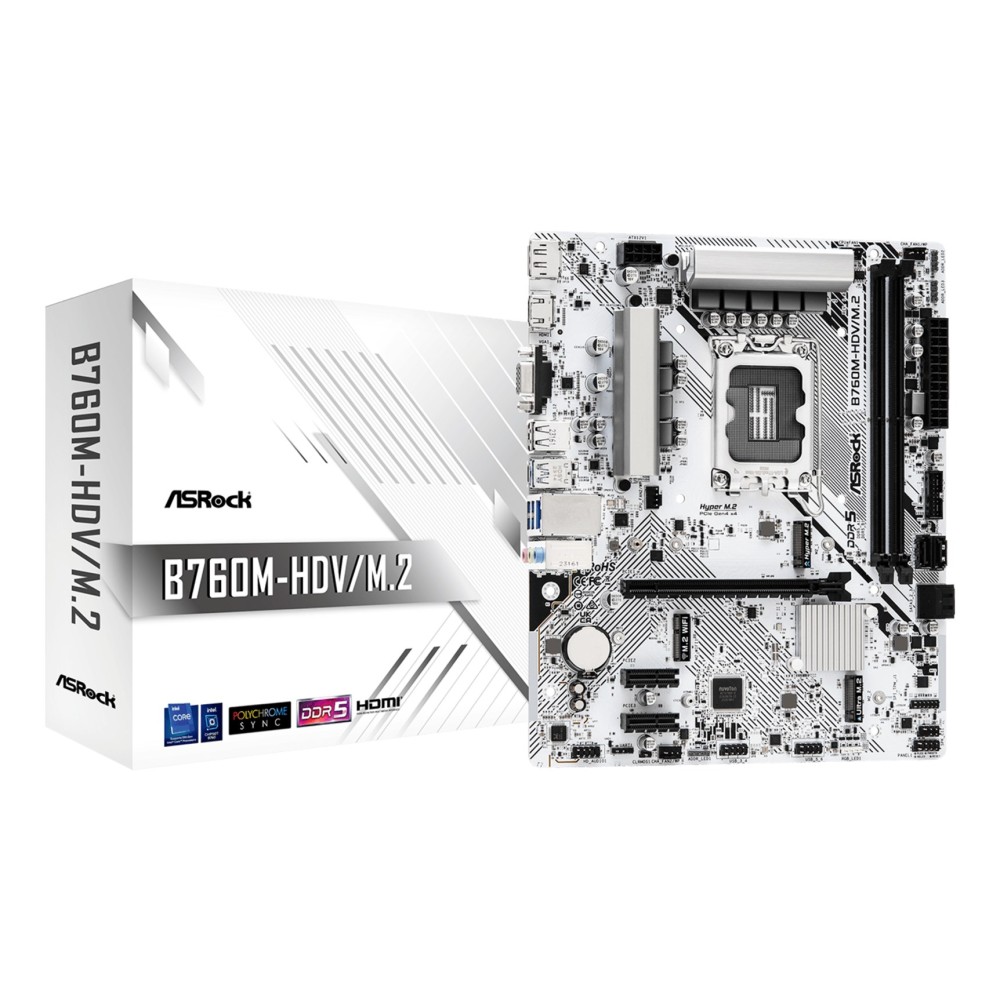

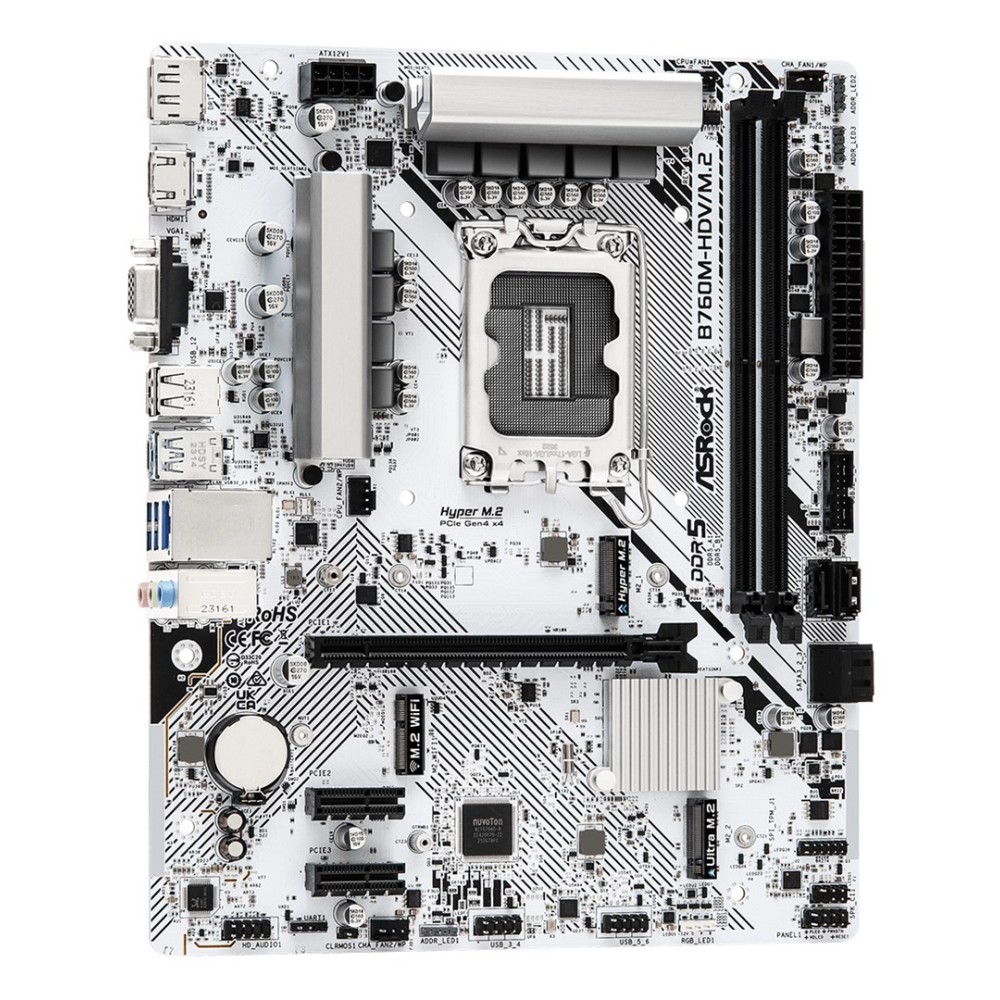

Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|1xAV-In|1xAV-out|1xMicrophone|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|B760M-HDV/M.2
- In Stock
- 98.12€
- Ex Tax: 79.13€
- Brand: ASROCK
- Model: 4710483943485
- Product Code: B760M-HDV/M.2
- Availability: 30 pcs
- ID: 329099
Fast delivery
Intel B760 Express , LGA1700 , Micro-ATX , DDR5 , 7200 MHz , Memory slots 2 , 2xPCI-Express 3.0 1x , 1xPCI-Express 4.0 16x , 1xM.2 , 1x15pin D-sub , 1xHDMI , 1xDisplayPort , 1xAV-In , 1xAV-out , 1xMicrophone , 2xUSB 2.0 , 3xUSB 3.2 , 1xUSB-C , 1xRJ45 , USB 2.0 , USB 3.2 , SATA 3.0 , Video Depending on CPU , LAN 2.5 Gigabit , Audio Realtek ALC897 , RAID SATA 0, 1, 5, 10 , TPM
| Main | |
| 15pin D-sub | 1 |
| AV-In | 1 |
| AV-out | 1 |
| Category Code | MBI |
| chipset | Intel B760 Express |
| CnCode | 84733020 |
| Description | B760M-HDV/M.2
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - 7+1+1 Power Phase - Supports DDR5 7200MHz (OC) - 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi - Graphics Output Options: HDMI, DisplayPort, D-Sub - Realtek ALC897 7.1 CH HD Audio Codec - 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), - 1 Ultra M.2 (PCIe Gen3 x4) - 1 USB 3.2 Gen1 Type-C (Rear), - 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), - 6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN - Supports ASRock Auto Driver Installer |
| DisplayPort | 1 |
| form factor | Micro-ATX |
| frequency speed | 7200 MHz |
| HDMI | 1 |
| Included Accessories | 1 x User Manual; 1 x I/O Shield; 2 x SATA Data Cables; 3 x Screws for M.2 Sockets |
| Integrated audio | Realtek ALC897 |
| Integrated LAN | 2.5 Gigabit |
| Integrated video | Depending on CPU |
| M.2 | 1 |
| memory slots | 2 |
| memory type | DDR5 |
| microphone | 1 |
| Model | B760M-HDV/M.2 |
| PCI-Express 3.0 1x | 2 |
| PCI-Express 4.0 16x | 1 |
| RAID | SATA 0, 1, 5, 10 |
| RJ45 | 1 |
| SATA 3.0 | Yes |
| Shipping Box Depth | 61 cm |
| Shipping Box Height | 51 cm |
| shipping box quantity | 20 |
| Shipping Box Weight | 18.55 kg |
| Shipping Box Width | 29 cm |
| Socket | LGA1700 |
| TPM | Yes |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.277 |
| Unit Box Width | 0.24 |
| Unit Brutto Volume | 0.004511 cubm |
| Unit Gross Weight | 0.927 kg |
| Unit Net Weight | 0.5 kg |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | 1 |
| Vendor Homepage | www.asrock.com/mb/Intel/B760M-HDVM.2/index.asp |
