Component for |
PC/Laptop |
Controller type |
Phison E18 |

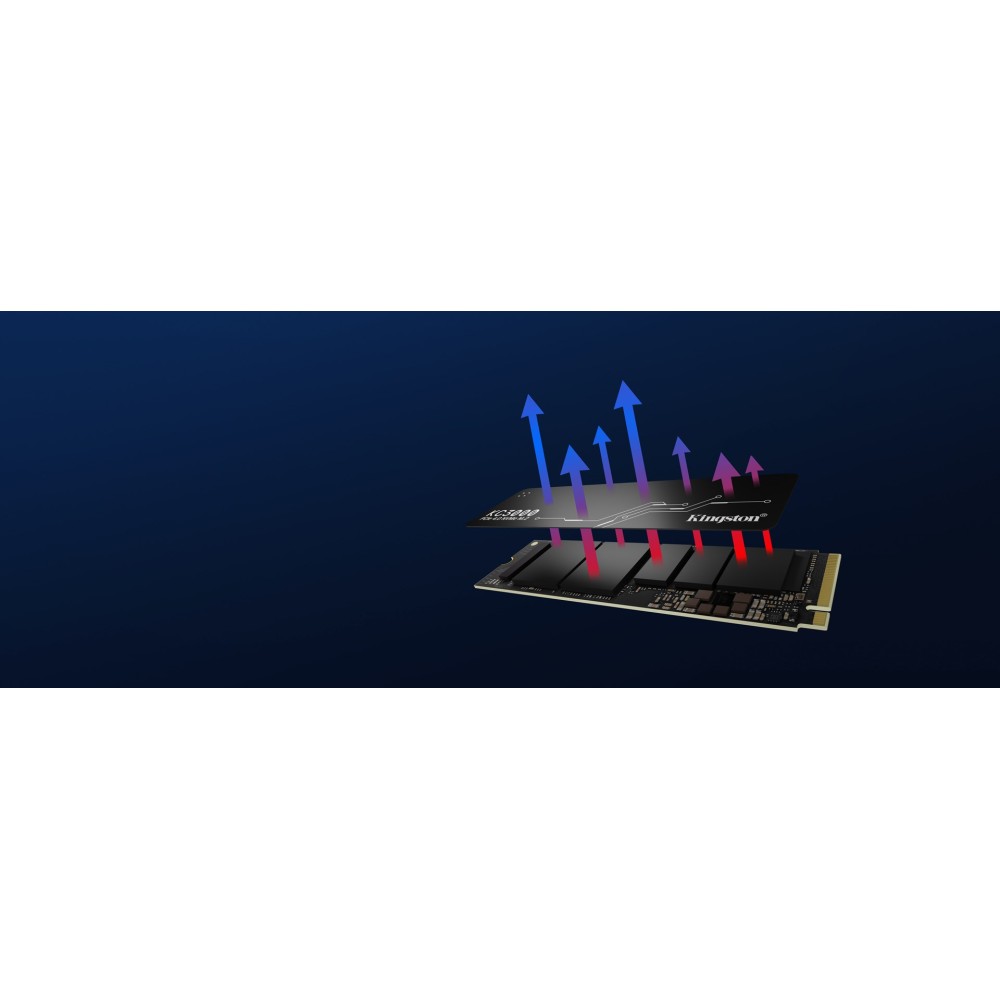

Cooling type |
Heatsink |
Depth |
22 mm |
Harmonized System (HS) code |
84717070 |
Height |
2.21 mm |
Interface |
PCI Express 4.0 |
M.2 SSD size |
2280 (22 x 80 mm) |
Master (outer) case gross weight |
391.3 g |
Master (outer) case height |
69.9 mm |
Master (outer) case length |
203.2 mm |
Master (outer) case width |
135.9 mm |
Mean time between failures (MTBF) |
1800000 h |
memory type |
3D TLC |
NVMe |
Yes |
Operating temperature (T-T) |
0 - 70 °C |
package depth |
8.4 mm |
package height |
184.2 mm |
package weight |
31.3 g |
package width |
129.5 mm |
Power consumption (average) |
0.33 W |
Power consumption (idle) |
0.005 W |
Power consumption (read) |
2.8 W |
Power consumption (write) |
6.3 W |
Products per master (outer) case |
10 pc(s) |
Random read (4KB) |
900000 IOPS |
Random write (4KB) |
1000000 IOPS |
Read speed |
7000 MB/s |
SSD capacity |
1.02 TB |
SSD form factor |
M.2 |
storage temperature (T-T) |
-40 - 85 °C |
TBW rating |
800 |
weight |
7 g |
Width |
80 mm |
Write speed |
6000 MB/s |
