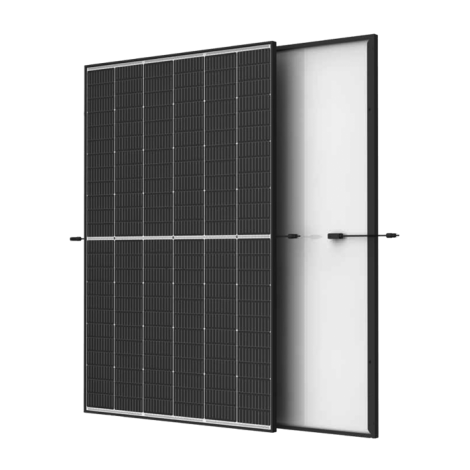

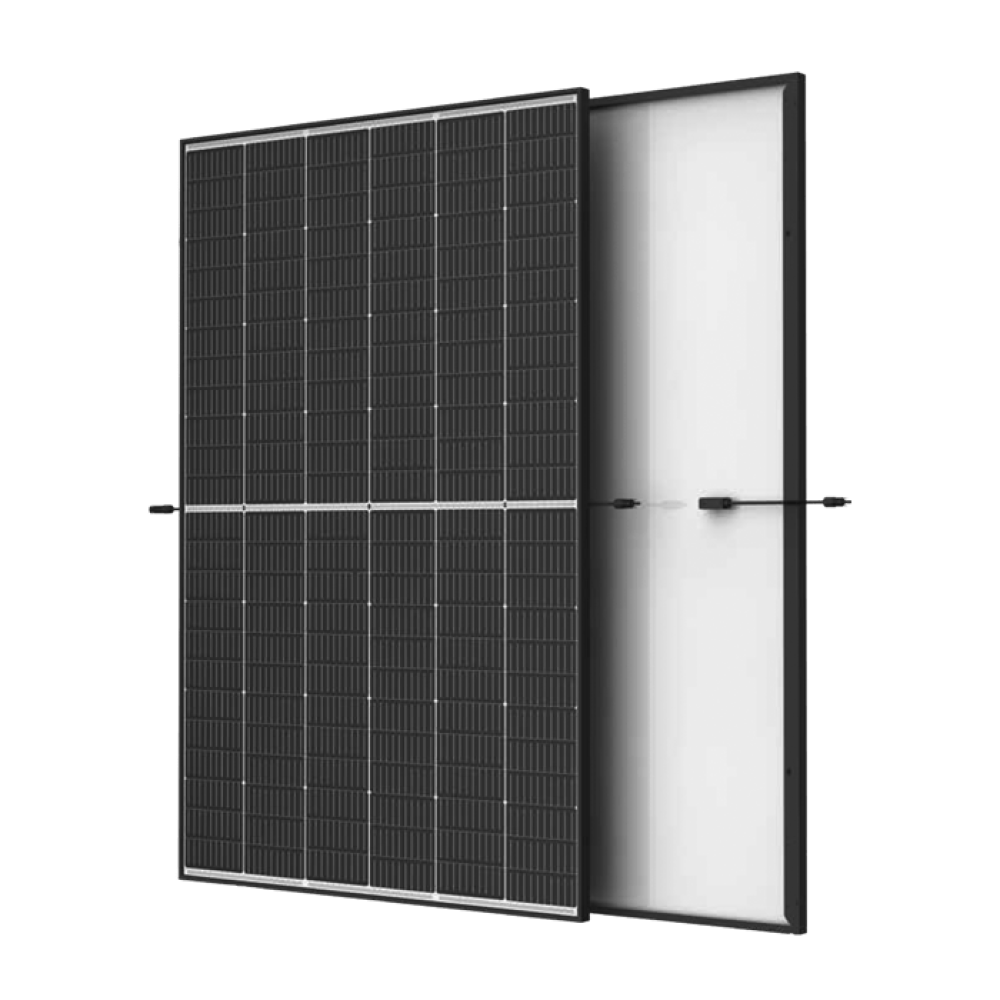

TrinaSolar | 510 W | VERTEX S+ NEG18R.28 | N-Type Dual Glass TOPCon Monocrystalline
- In Stock
- 111.39€
- Ex Tax: 89.83€
- Brand: TrinaSolar
- Model: 2000001416181
- Product Code: TSM-NEG18R.28 510W
- Availability: 5 pcs
- ID: 398801
Fast delivery
| Warranty | 300 |
| Operational conditions | |
| Maximum System Voltage | 1500 |
| Operating temperature (T-T) | -40 to +85 |
| Temperature Coefficient of ISC | 0.04%/°C |
| Temperature Coefficient of PMAX | -0.29%/°C |
| Temperature Coefficient of VOC | -0.24%/°C |
| Package features | |
| Embeeded battery | No |
| Gross depth (mm) | 2000 |
| Gross height (mm) | 30.00 |
| Gross width (mm) | 1140.00 |
| Packing quantity | 1.00 |
| Palette Qty | 36 |
| Paper/Pasteboard | 1200.00 |
| Plastic (No PET) | 300.00 |
| Tare weight (kg) | 1.50 |
| Volume (m3) | 0.0684 |
| WEE classification | CL109:4B:2024-01-01 |
| WEEE tax | Yes |
| Packaging content | |
| Quantity per shipping carton | 36 |
| Power | |
| Efficiency | 22.9 |
| Maximum Power Voltage | 33.7 |
| Open Circuit Voltage | 40.6 |
| Power Tolerance-PMAX | 0/+5 |
| Short Circuit Current | 15.93 |
| Technical details | |
| Frame dimensions | 30 |
| Glass thickness | 1.6 |
| Gross weight | 25.00 |
| J-Box | IP68 |
| Module Dimensions | 1961 x 1134 x 30 |
| Module weight | 23.5 |
| Net weight | 23.50 |
| Number of cells | 108 |
| Peak power | 510 |
| Producer | TrinaSolar |
| Producer product family | N-Type Dual Glass TOPCon Monocrystalline |
| Producer product name | VERTEX S+ NEG18R.28 |
| Solar Cells | Monocrystalline |
| Warranty | |
| Annual power degradation | 0.4 |
| First year degradation | 1 |
| Power warranty | 30 |
| Product workmanship warranty | 15 |
