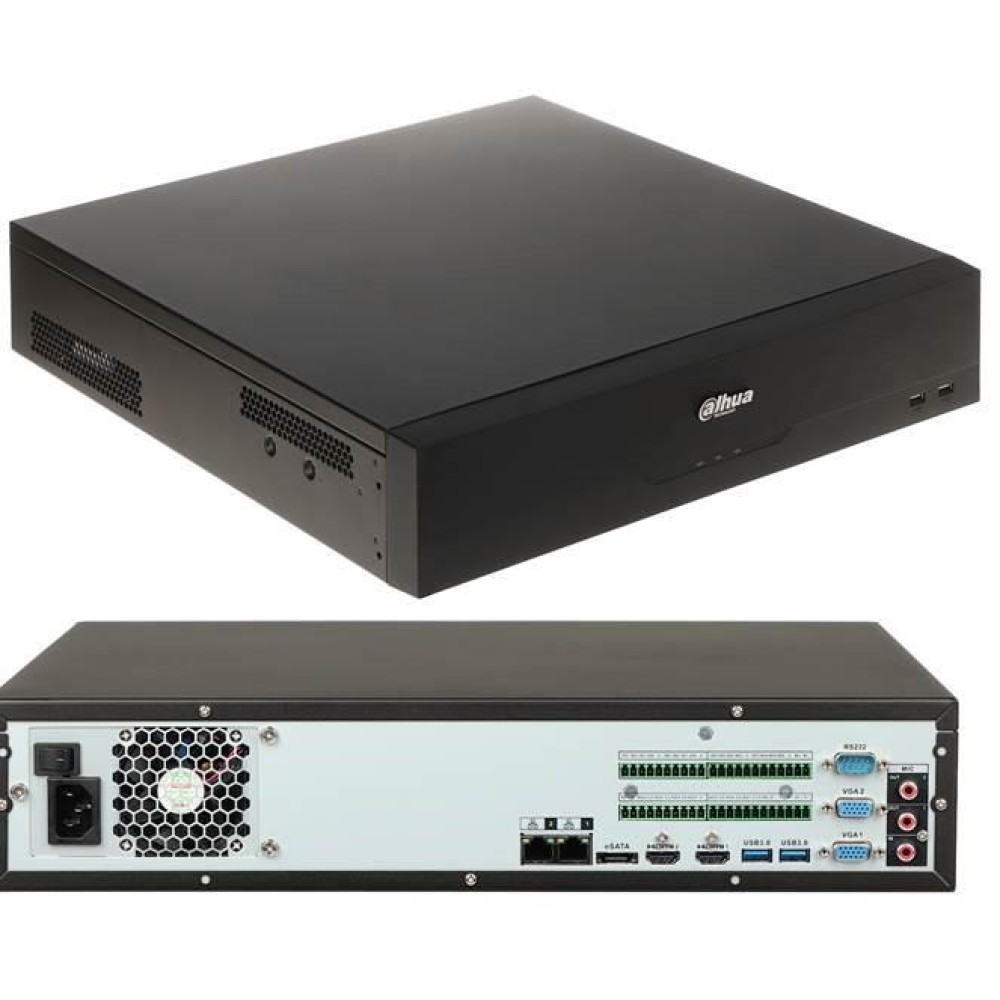

NET VIDEO RECORDER 64CH/NVR5864-EI DAHUA
- In Stock
- 1 874.63€
- Ex Tax: 1 536.58€
Monthly payment from: 83.23 EUR
- Brand: DAHUA
- Model: 6923172586063
- Product Code: DHI-NVR5864-EI
- Availability: 1 pcs
- ID: 337295
Fast delivery
Channels 64 , Desktop/pedestal , Rack , CPU Embedded Linux , Integrated LAN Gigabit , 2x15pin D-sub , 2xHDMI , 1xAudio-In , 2xAudio-Out , 1xRS232 , 2xUSB 2.0 , 1xeSATA , 2xRJ45 , 1xRS-485 , 16xAlarm In , 8xAlarm Out , Power supply requirements 100–240 VAC, 50-60 Hz , Dim. 439.9 × 457.9 x 89.0 mm
| Main | |
| 15pin D-sub | 2 |
| Alarm In | 16 |
| Alarm Out | 8 |
| Audio-In | 1 |
| Audio-Out | 2 |
| Category Code | NVR |
| CPU | Embedded Linux |
| Description | 64 IP channel max, up to 32MP resolution Max: 384Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG 2x VGA/HDMI up to 4K output, decoding up to 2-channel 32 MP @ 20 fps 8 SATA III ports, up to 16 TB for a single HDD, RAID 0/1/5/6/10 No front panel control, 16/8 alarm I/O, 2 USB, Audio I/O: 1/2, eSATA, RS-232, RS-485 Rack/desktop mounted chassis AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus. AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting. Free IP monitoring software available Other brands IP cameras supported |
| Desktop/pedestal | Yes |
| Dimensions | 439.9 × 457.9 x 89.0 mm |
| eSATA | 1 |
| HDMI | 2 |
| Integrated LAN | Gigabit |
| Model | NVR5864-EI |
| Number of Channels | 64 |
| Power supply requirements | 100–240 VAC, 50-60 Hz |
| Rack | Yes |
| RJ45 | 2 |
| RS-485 | 1 |
| RS232 | 1 |
| Shipping Box Depth | 56 cm |
| Shipping Box Height | 22 cm |
| shipping box quantity | 1 |
| Shipping Box Weight | 8.9 kg |
| Shipping Box Width | 57 cm |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.56 |
| Unit Box Width | 0.57 |
| Unit Brutto Volume | 0.07022 cubm |
| Unit Gross Weight | 8.9 kg |
| Unit Net Weight | 6.4 kg |
| USB 2.0 | 2 |
| Vendor Homepage | www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/8HDD/NVR5864-EI |
