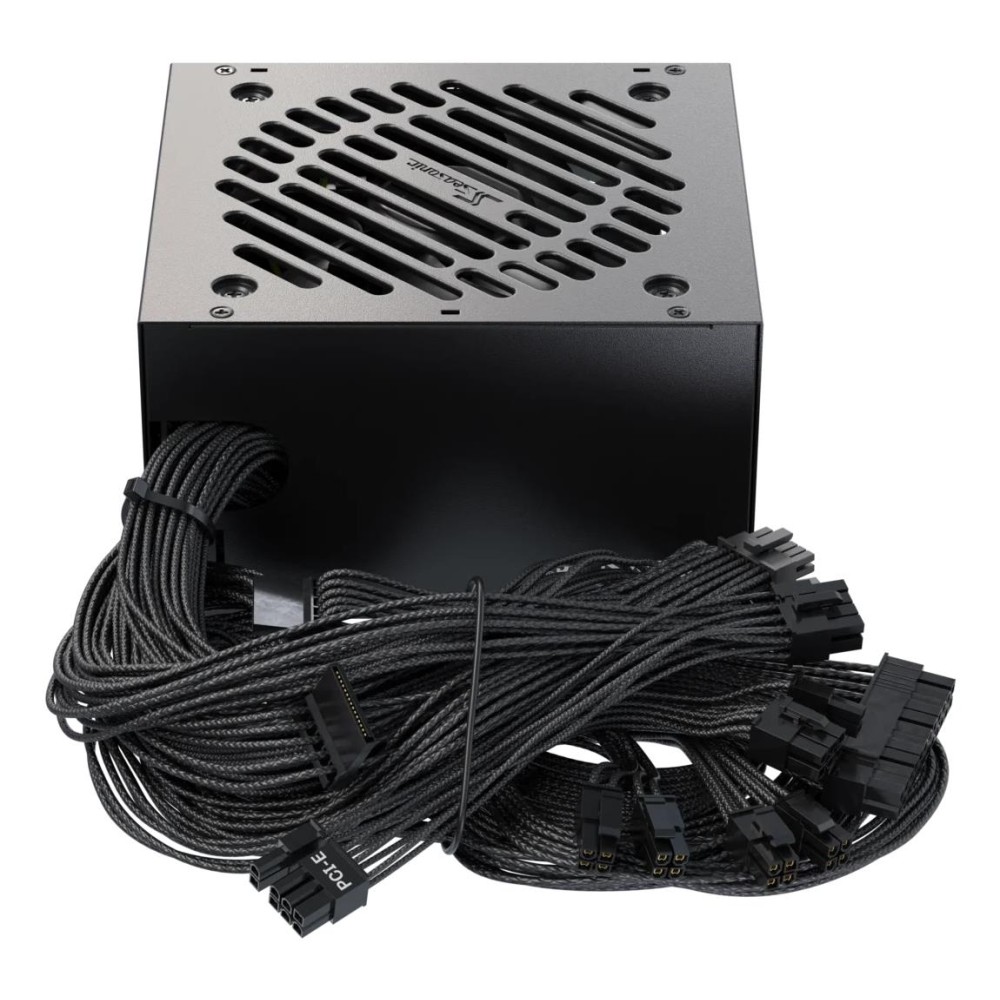

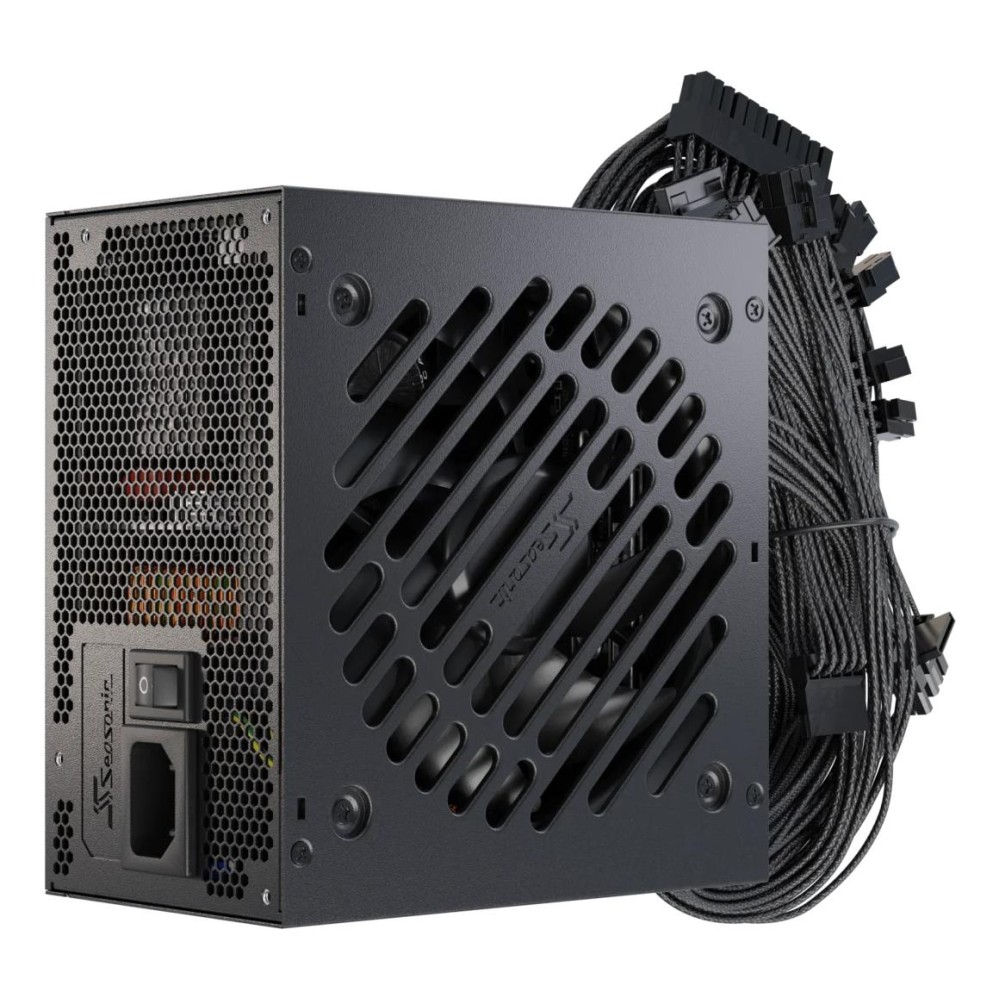

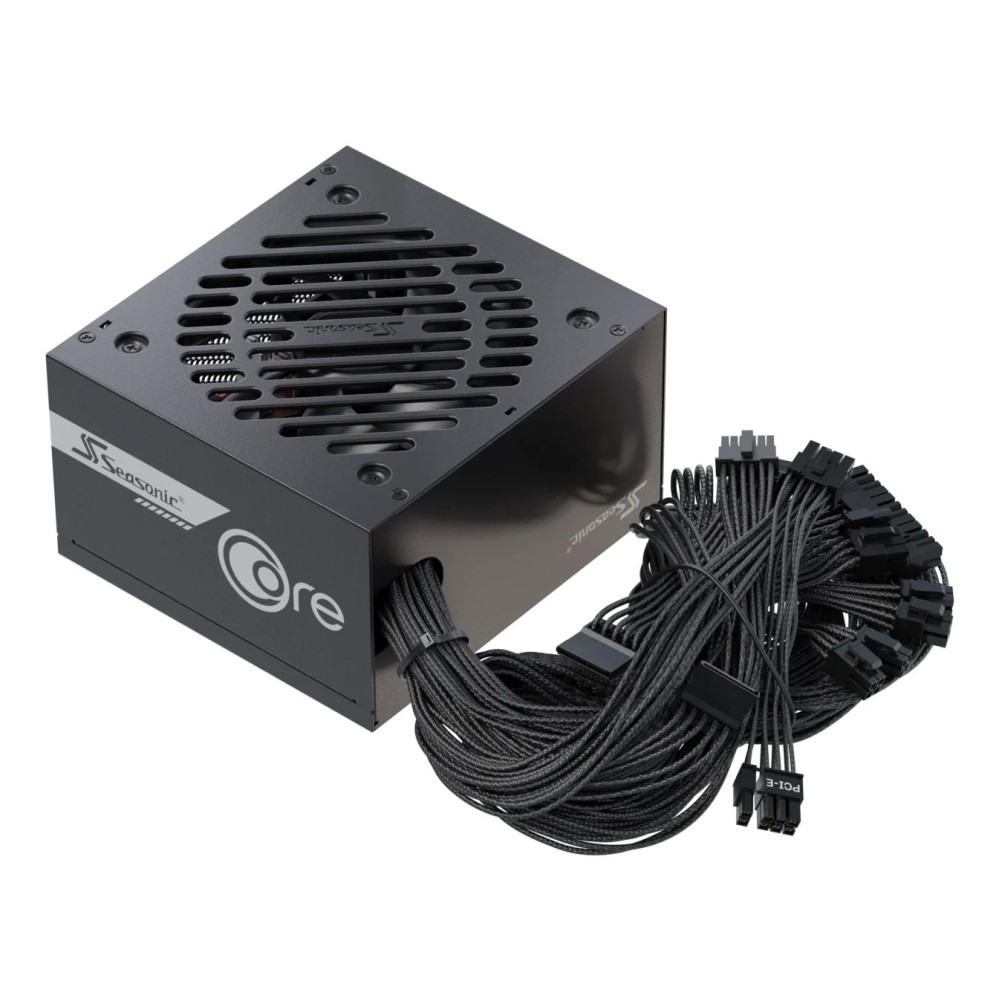

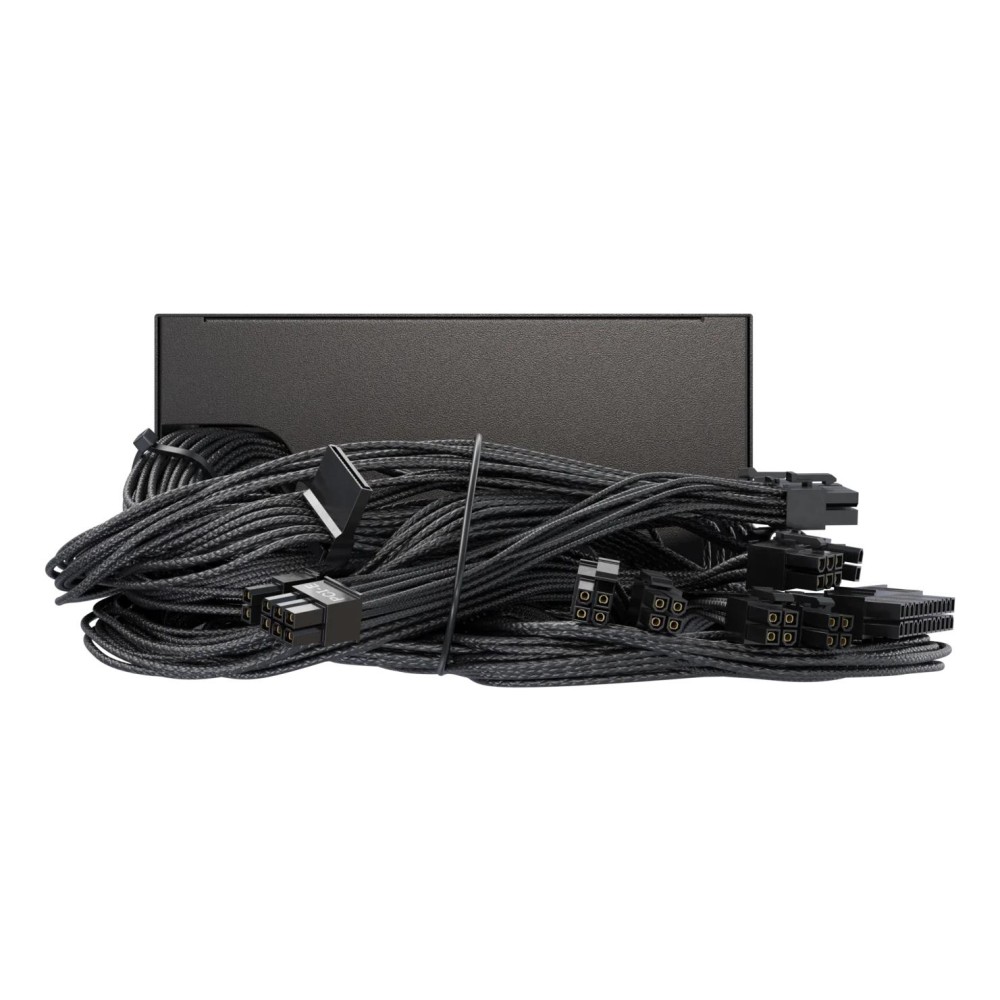

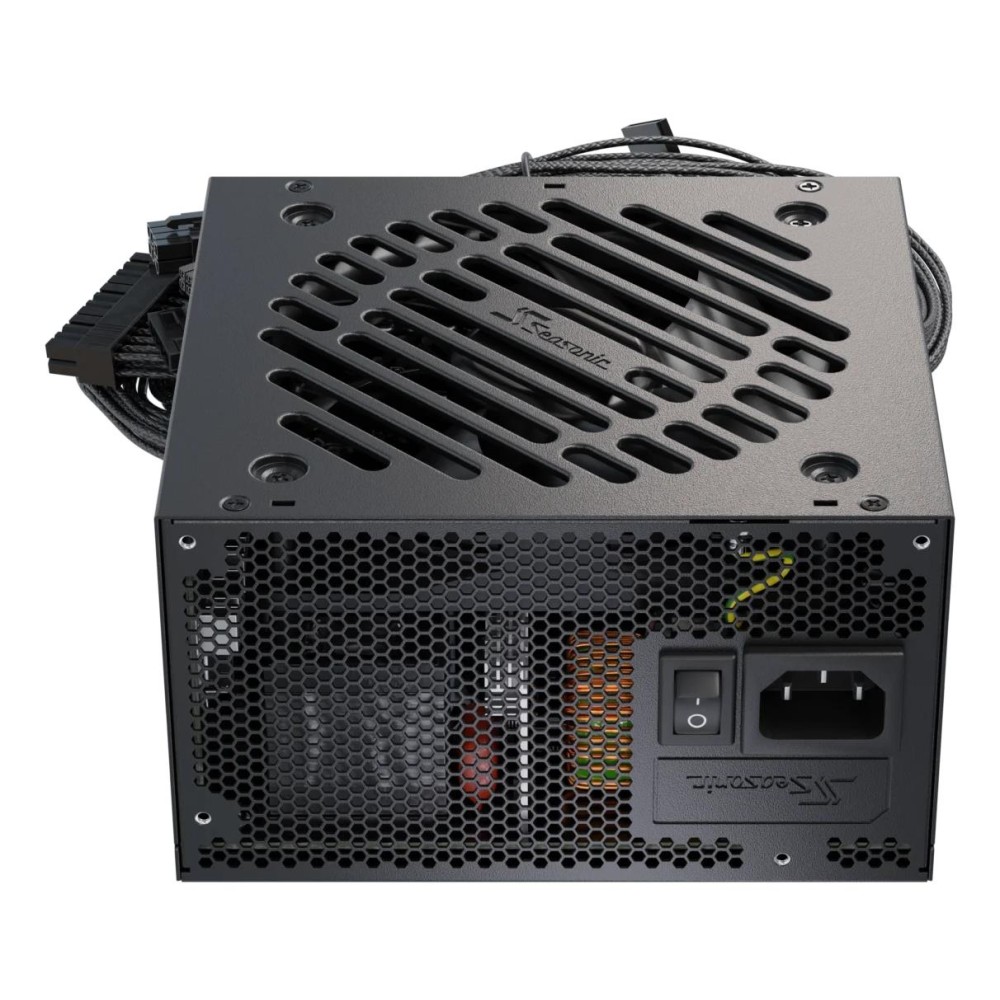

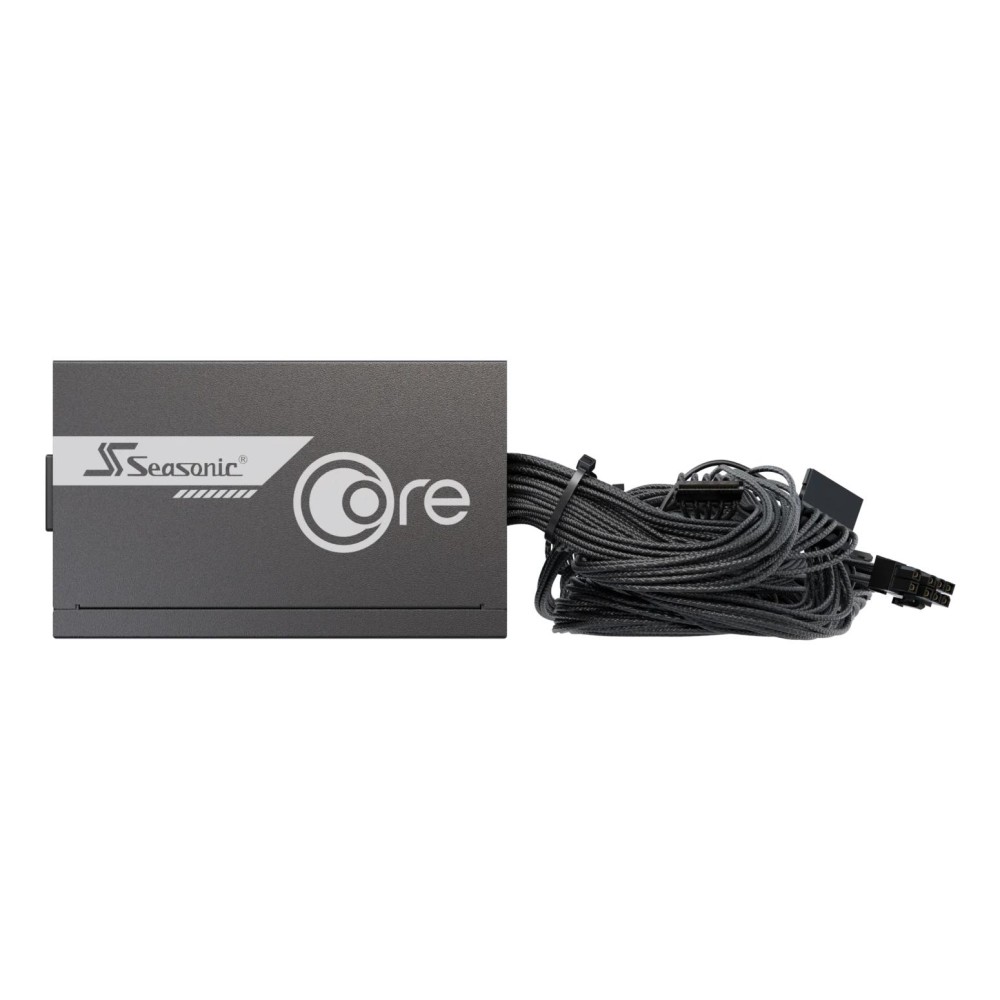

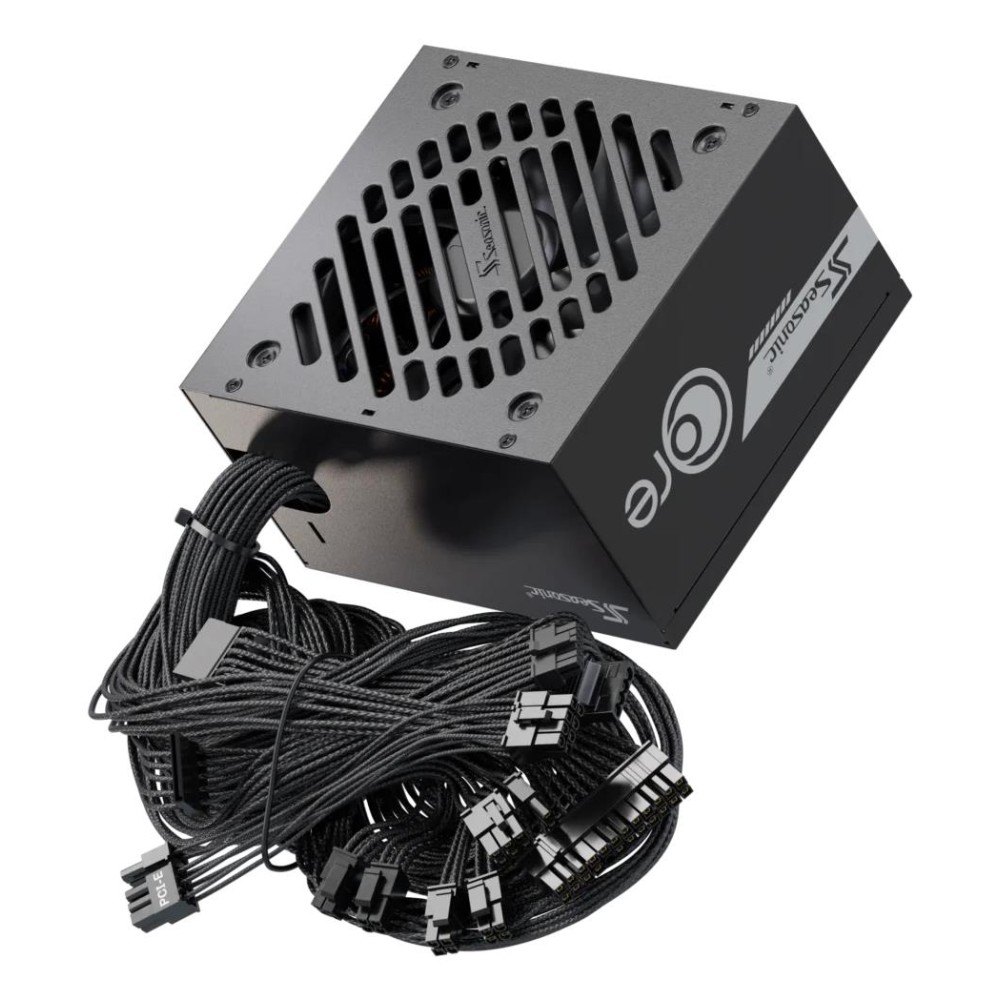

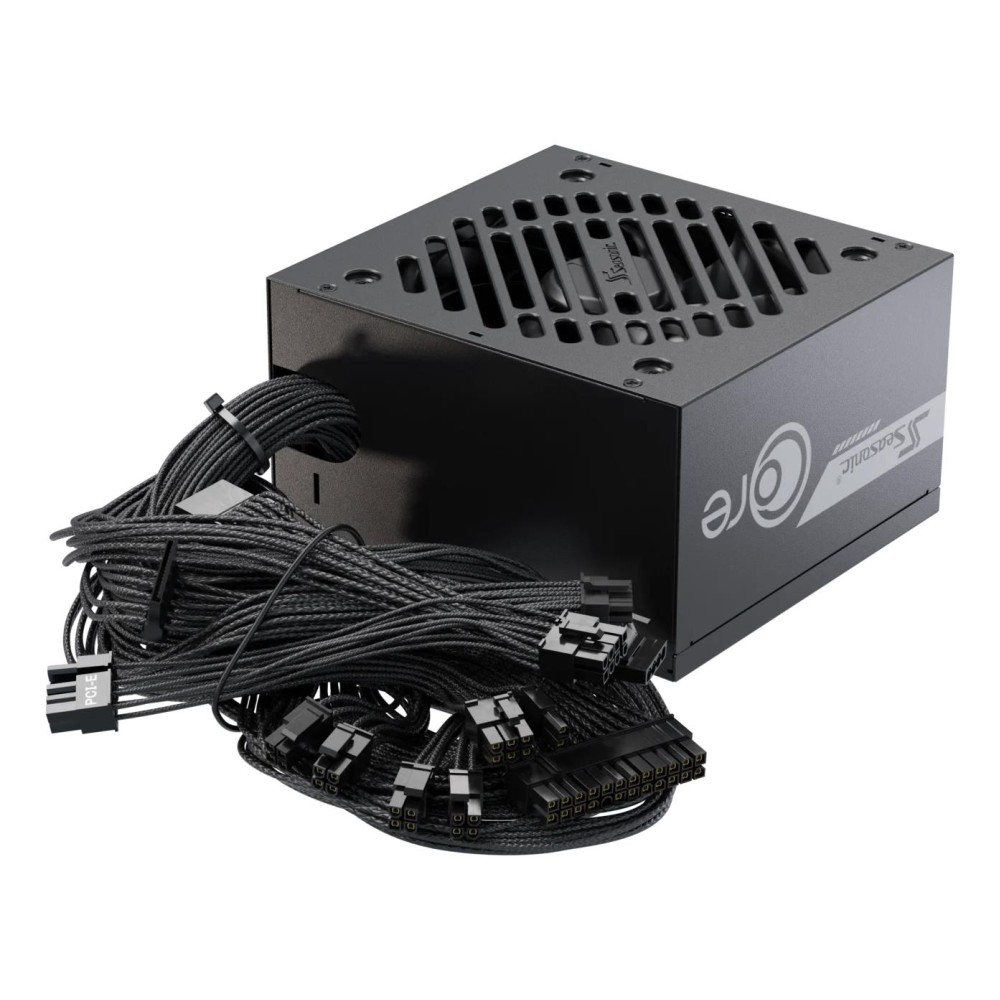

Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|SRP-CBC751-A5A51JF

In Stock
70.77€
Ex Tax: 57.07€

Brand: SEASONIC
Model: 4711173879442
Product Code: SRP-CBC751-A5A51JF
Availability: 100 pcs
ID: 396388

Fast delivery

Supplier

LV1 (1-3 working days) - 100 pcs

Qty

Description
Specification

750 W , 100 - 240 V , 80 PLUS certification 80 PLUS Bronze , PC , ATX , Fan diameter 120 mm

Main
80 PLUS certification	80 PLUS Bronze
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
ATX power connector (20+4 pin)	Yes
Bearing technology	Sleeve
Cabling type	Non-Modular
Category Code	PSU
Certification	CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
CnCode	85044095
Combined power (+12V)	744 W
Combined power (+3.3V)	100 W
Combined power (+5Vsb)	12.5 W
Combined power (-12V)	3.6 W
Compliance certificates	BSMI/CB/CCC/CE/cTUVus/EAC/REACH/RoHS/UKCA/WEEE
Cooling type	Active
CPU power cable length	600 mm
CPU power connector (4+4 pin)	Yes
Depth	140 mm
Description	CORE BC – Power Made Simple The Seasonic CORE BC Series delivers reliable performance and modern ATX 3.1 compliance at an essential value. Designed for everyday builders and gamers, it embodies Seasonic’s trusted quality in a compact 140 mm design with a durable scratch-resistant finish. With 80 PLUS® Bronze efficiency, Smart and Silent Fan Control (S2FC), and a 120 mm HDB fan, it ensures cool, quiet, and stable operation. The CORE BC-750 and CORE BC-850 include a 12V-2×6 PCIe Gen 5.1 cable, ready for the latest GPUs, while the CORE BC-650 meets all ATX 3.1 requirements with traditional connectors. Built on decades of engineering excellence, the CORE BC Series delivers the quiet efficiency, reliability, and durability that define every Seasonic power supply. Next-Gen and Legacy GPU Cable Includes native 12V-2x6 and 2× 8-pin cables for maximum compatibility S2FC - Intelligent Fan Control Technology The Smart and Silent Fan Control (S2FC) system intelligently regulates the power supply’s fan speed to achieve the ideal balance between cooling efficiency and silent operation. By dynamically adjusting the fan curve according to temperature, it ensures that your system remains quiet during low-to-medium usage and effectively cooled when performance demands increase.
EPS power connector (4+4 pin)	Yes
Fan diameter	120 mm
Fan location	Top
Height	86 mm
Input current	11 - 5.5 A
Max output current (+12V)	62 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	2.5 A
Max output current (-12V)	0.3 A
Mean time between failures (MTBF)	100000 h
Motherboard power cable length	550 mm
Motherboard power connector	20+4 pin ATX
Number of fans	1 fan(s)
Number of SATA power connectors	6
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
PCI Express connector	Yes
PCI Express power connectors (6+2 pin)	4
Peripheral (Molex) power connectors (4-pin)	3
Power protection features	Over current/Over power/Over voltage/Short circuit
Power supply unit (PSU) form factor	ATX
product colour	Black
Purpose	PC
Summary	Seasonic CORE BC-750 ATX 3.1. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: BSMI, CB, CCC, CE, EAC, REACH, RoHS, UKCA, WEEE, cTUVus, Certification: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
Sustainability certificates	ENERGY STAR
Total power	750 W
Unit Box Height	0.185
Unit Box Length	0.114
Unit Box Width	0.24
Unit Calculated Volume	0.00648 cubm
Unit Calculated Weight	2.43 kg
Units per Pallet	0
Units per Shipping Box	5
Vendor Homepage	https://seasonic.com/core-bc/
Width	150 mm
