Model name GA II Trinity Performance 360 , 120 mm , Type All-in-one liquid cooler , Suitable location Computer case , 2xNumber of speeds , Maximum airflow 108.29 cfm , Bearing type Fluid Dynamic Bearing (FDB) , Fan speed (max) 3000 RPM , Pump motor speed 4200 RPM , Colour Black , Radiator material Aluminum , Number of fans 3 fan(s) , Radiator height 32 mm , Cables included 4-pin,SATA , Mounting kit Yes , RGB controller included Yes
| Peamine |
| Kategooria kood |
COC |
| Kirjeldus |
BOOST PERFORMANCE TO THE NEXT LEVEL
Galahad II Trinity Performance pump is larger than the regular one so that it accommodates upgraded components to efficiently cool the CPU.

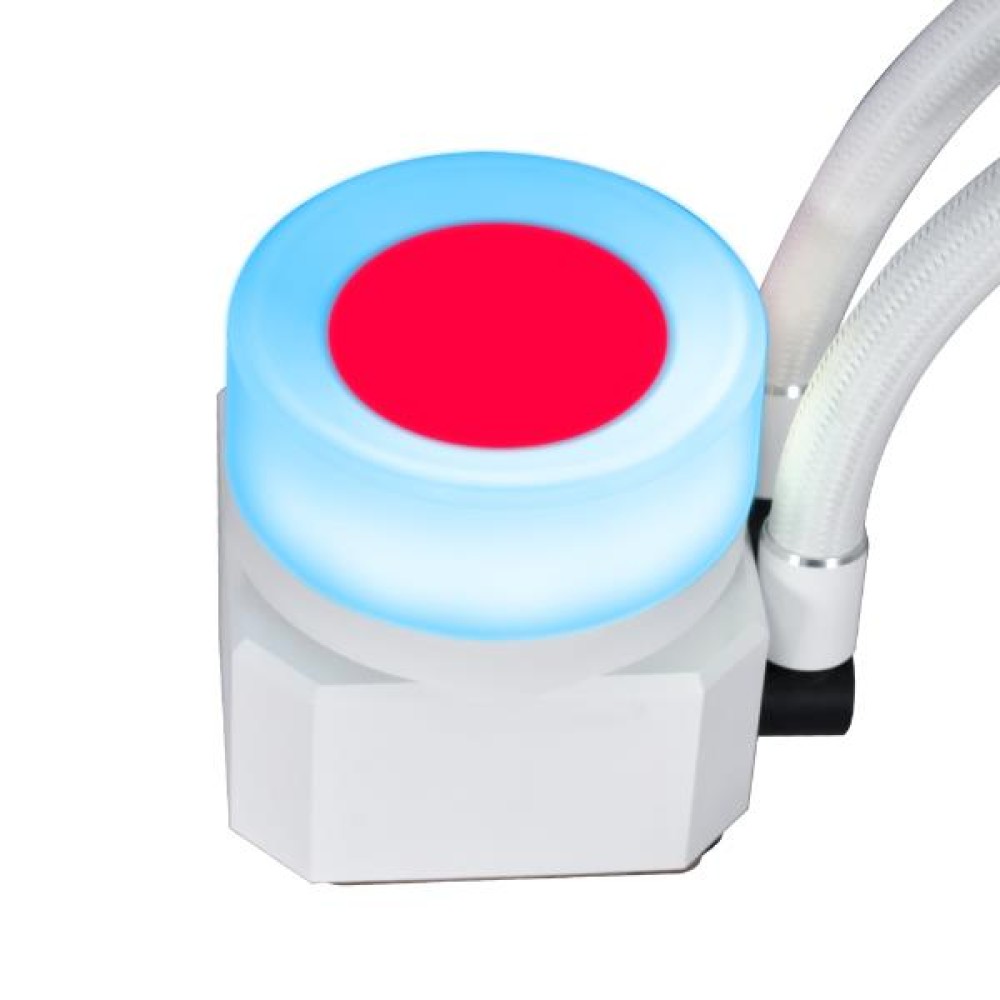

CHOOSE PREFERABLE LOOK
The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.
DUO- INFINITY
An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center. (90° Rotatable)
DAZZLE
An entirely shining pump cap that brings the most vivid lighting to your build.

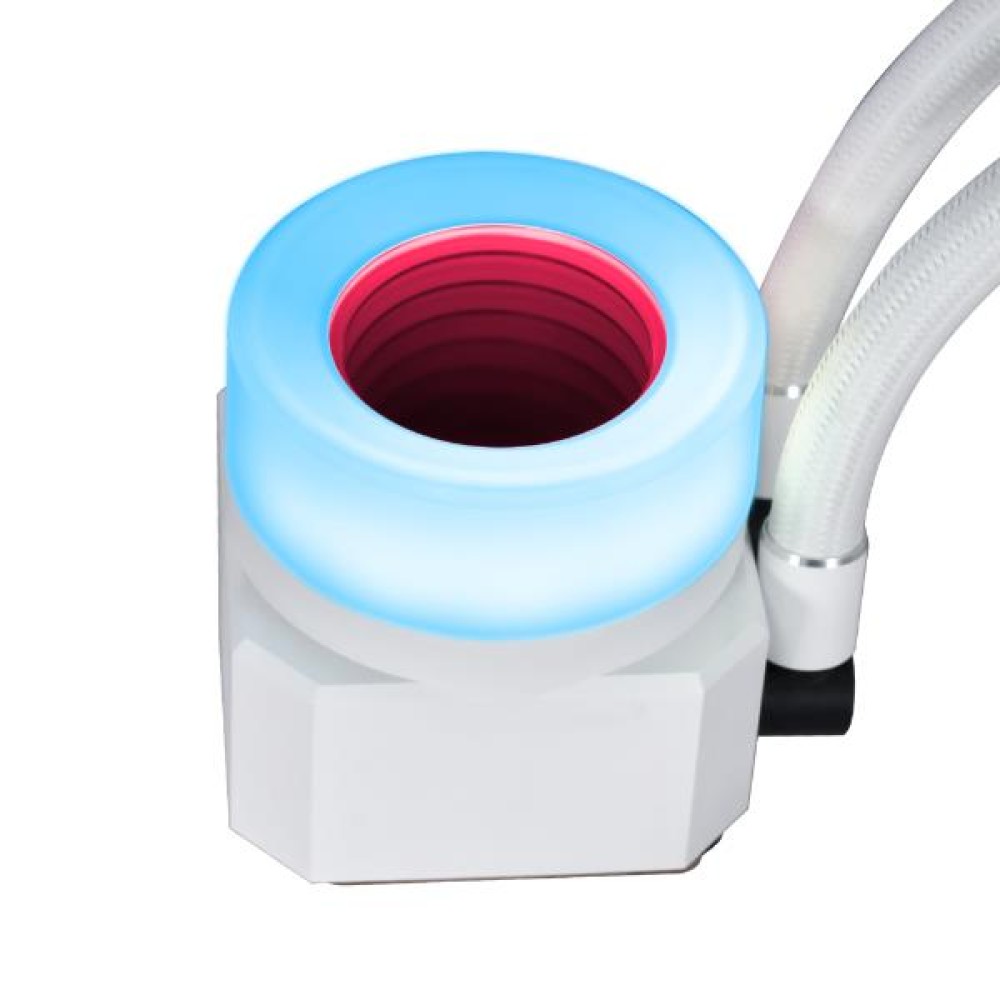

SINK-HOLE
The combination of the diffuser and infinity mirror creates the sinkhole effect.
HIGH DENSITY ALUMINUM RADIATOR
The 32mm thick radiators feature a double-wave radiator fin design of 19 FPI which provides more surface area to dissipate heat with a high performance fan.
DAISY-CHAINABLE LCP FAN
The double-stack radiator fins provide better heat dissipation due to the enlarged surface area. However, the increased density also requires a more performance-oriented fan. These high-performance LCP fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. Just like the UNIFAN P28, this 120mm fan is 28mm in thickness and features a copper shield bearing for high RPM stability and quiet operations.
MOUNT IN ANY WAY
This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.
INSTALATION MADE EASY, FOR YOU
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
It also comes with a thermal paste control film and spreader to help ensure the right amount of thermal paste is applied for effective heat dissipation.
SEAMLESS SOFTWARE
Control and preview with precision the lighting effect and real-time motor speed of the Galahad II Trinity Pump and fans with the L-Connect 3.
SIMPLE CONNECTION
The controller is built into the pump and the fan can be connected to the pump to control via L-Connect 3. - 3 interchangeable pump looks that can be customized with L-Connect 3
- Factory installed with daisy-chainable radiator LCP fans
- Pump motor speed goes up to 4200RPM
- Includes a newly designed pathway, copper plate and larger impeller for better waterflow for liquid coolant
- 45-degree tubing connector with tubes’ inner diameter increased to 7mm
|
| Mudel |
GA II Trinity Performance 360 |
| Müüja koduleht |
https://lian-li.com/product/galahad-ii-trinity-performance/ |
| Summary |
Lian Li GA II TRINITY PERFORMANCE. Тип: All-in-one liquid cooler, Диаметр вентилятора: 12 cm, Число скоростей: 2, Минимальное давление воздуха: 4,08 mmH2O, Максимальное давление воздуха: 6,99 mmH2O, Тип подшипника: Fluid Dynamic Bearing (FDB). Цвет товара: Черный |
| Üksuse kasti kõrgus |
0.225 |
| Üksuse kasti laius |
0.15 |
| Üksuse kasti pikkus |
0.45 |
| Вес в упаковке |
3.55 кг |
| Винты в комплекте |
Да |
| Высота насоса |
79 mm |
| Высота радиатора |
32 mm |
| Глубина насоса |
74 mm |
| Глубина радиатора |
130 mm |
| Диаметр вентилятора |
120 mm |
| Длинна трубки |
385 mm |
| Количество в палете |
0 |
| Количество в транспортной упаковке |
4 |
| Количество в упаковке |
1 шт |
| Количество вентиляторов |
3 вентилятор(ы) |
| Количество килей |
2 |
| Контроллер RGB в комплекте |
Да |
| кронштейн (кронштейны) для ЦП |
Да |
| Максимальное давление воздуха |
6.99 mmH2O |
| Максимальный воздушный поток |
108.29 cfm |
| Материал радиатора |
Алюминий |
| Минимальное давление воздуха |
4.08 mmH2O |
| Минимальный воздушный поток |
81.54 cfm |
| Монтажный комплект |
Да |
| Объем |
0.01805 м3 |
| Подходящее расположение |
Корпус компьютера |
| Поставляемые кабели |
4-pin,SATA |
| Размеры вентилятора (Ш х Г х В) |
120 x 120 x 28 mm |
| Скорость вращения вентилятора (макс) |
3000 RPM |
| Скорость вращения вентилятора (мин) |
2300 RPM |
| Скорость двигателя насоса |
4200 RPM |
| Тип |
All-in-one liquid cooler |
| Тип подшипника |
Fluid Dynamic Bearing (FDB) |
| Уровень шума вентилятора (макс) |
39.9 dB |
| Уровень шума вентилятора (мин.) |
32.1 dB |
| Уровень шума помпы |
22.03 dB |
| Цвет товара |
Черный |
| Число скоростей |
2 |
| Ширина насоса |
74 mm |
| Ширина радиатора |
396 mm |
