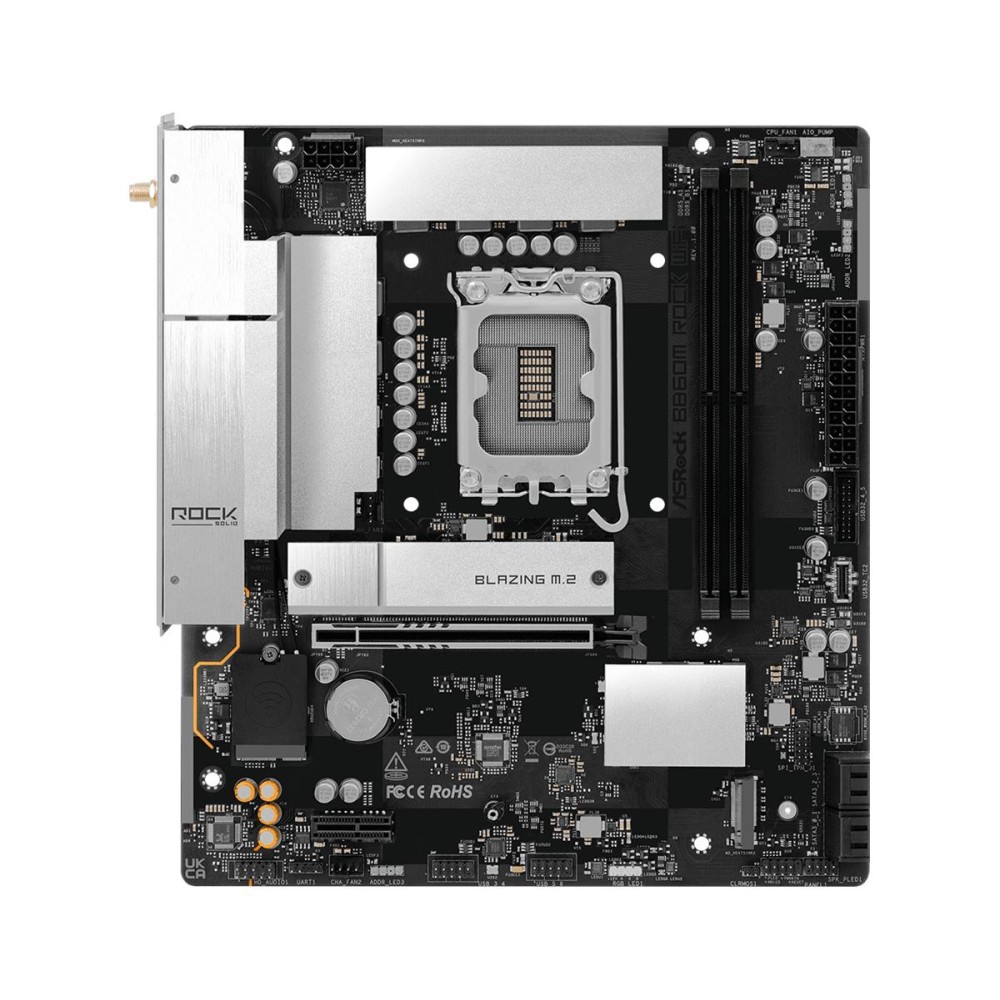

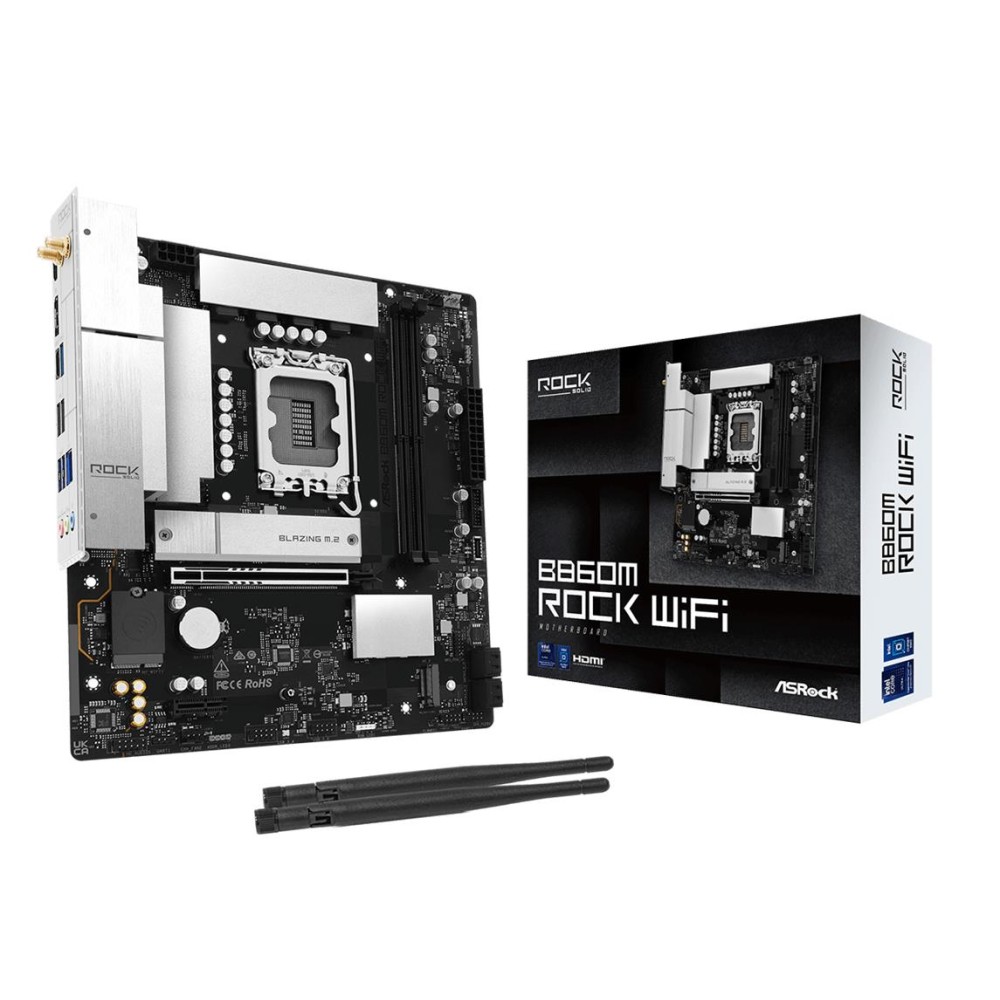

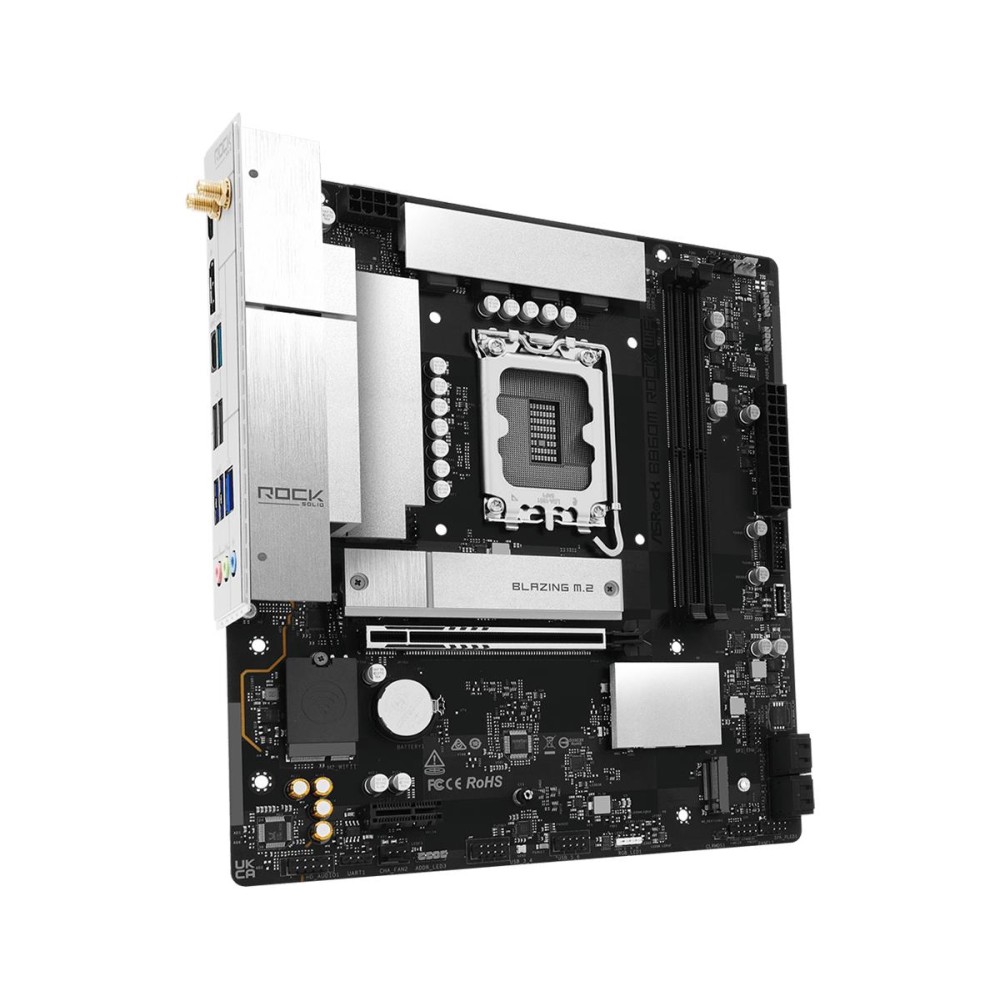

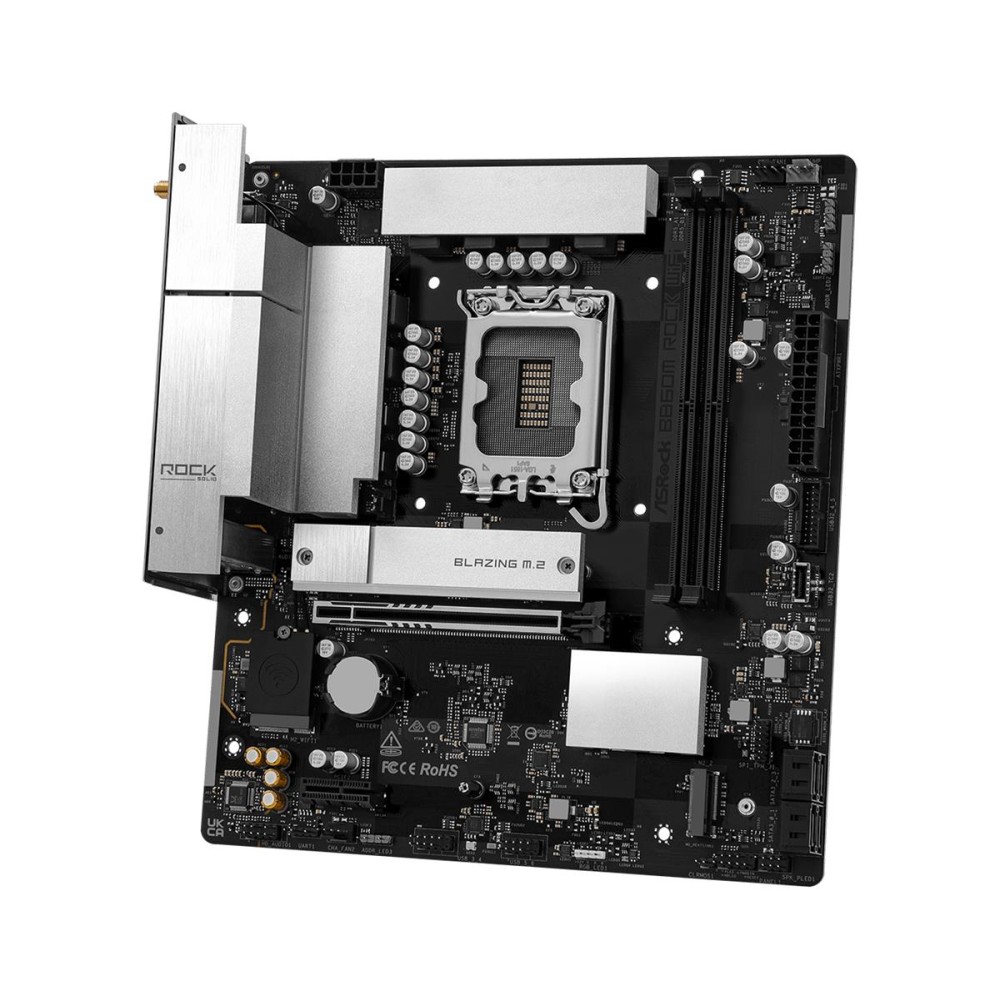

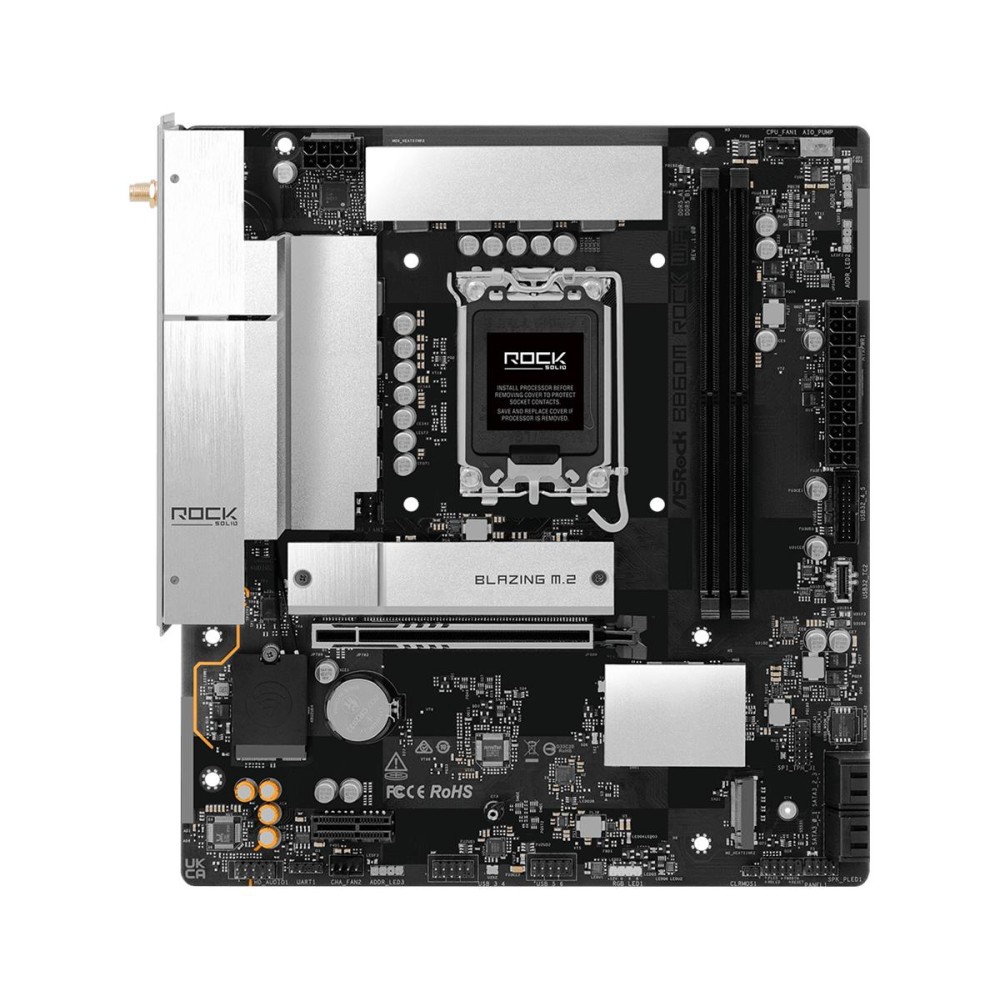

Mainboard|ASROCK|Intel B860|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) slots|B860MROCKWIFI

Laos olemas
141.25€
Maksudeta: 113.91€

Tootja: ASROCK
Mudel: 4711581494152
Tootekood: B860M ROCK WIFI
Saadavus: 10 tk
ID: 400506

Kiire tarne

Tarnija

LV1 (1-3 päeva) - 10 tk

Kogus

Kirjeldus
Tehnilised andmed

Intel B860 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Series Intel Core Ultra (Series 2) , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 2xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Peamine
Antenna included	Yes
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth	Yes
Bluetoothi versioon	5.3
CnCode	84733020
Compatible processor series	Intel Core Ultra (Series 2)
Component for	PC
CPU fan connector	Yes
DisplayPort version	1.4
DisplayPorts quantity	1
ECC сompatibility	Non-ECC
emaplaadi kiibistik	Intel B860
Ethernet interface type	2.5 Gigabit Ethernet
Etherneti LAN	Yes
Etherneti LAN (RJ-45) pordid	1
Front panel audio connector	Yes
HDCP	Yes
HDCP version	2.3
HDMI ports quantity	1
helikiip	Realtek ALC897
Kaablid kaasas	SATA
Kategooria kood	MBI
Kirjeldus	Rock Series brings reliable performance and solid quality in a clean, modern design—ready for work, study, and gaming with practical, well-balanced features. Digi Power This motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, providing CPU a smooth and efficient power source which expands the lifespan and stability of the motherboard. DDR5 XMP & EXPO Support Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. PCIe Gen5 Blazing M.2 The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. Aluminum Heatsink The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Wi-Fi 6E 802.11axe WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Front USB 3.2 Gen1 Type-C Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. POLYCHROME RGB This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Laius	244 mm
LAN controller	Dragon RTL8125AG
line-in	Yes
M.2 (M) pilude arv	1
Maksimaalne sisemälu	128 GB
mälukanalid	Dual-channel
Memory slots type	DIMM
mikrofon sisse	Yes
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Müüja koduleht	https://www.asrock.com/mb/Intel/B860M%20Rock%20WiFi/index.asp#Specification
Number of chassis fan connectors	2
Number of CPU fan connectors	1
Number of memory slots	2
Number of RGB LED pin headers	1
Number of SATA III connectors	4
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
protsessori pesa	LGA 1851 (Socket V1)
protsessori tootja	Intel
RGB LED pin header	Yes
Sügavus	218 mm
Summary	Asrock B860M Rock WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125AG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory types	DDR5-SDRAM
Supported storage drive interfaces	M.2,SATA III
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
TPM connector	Yes
Üksuse kasti kõrgus	0.265
Üksuse kasti laius	0.06
Üksuse kasti pikkus	0.3
Unbuffered memory	Yes
Unit Calculated Volume	0.005842 cubm
Unit Calculated Weight	1.27 kg
Units per Pallet	0
Units per Shipping Box	10
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 Type-C portide kogus	1
Wi-Fi standardid	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6E (802.11ax)
wifi	Yes
Windows operating systems supported	Windows 11 x64
