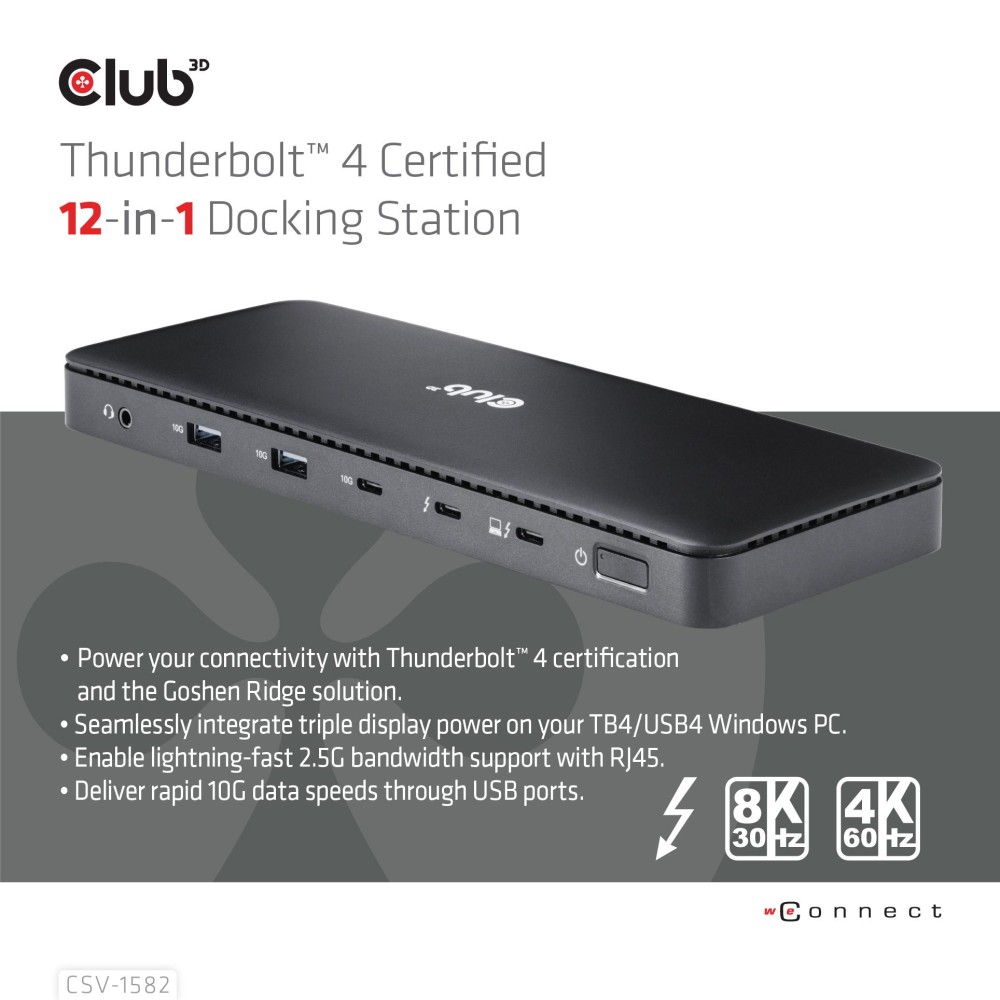

Features:
• Adopting Goshen Ridge solution
• Combining the TB4 features with the ease of an integrated dock, allowing you to output 3 Streams to 3 displays simultaneously with extended desktop displays on a TB4/USB4 Windows PC.

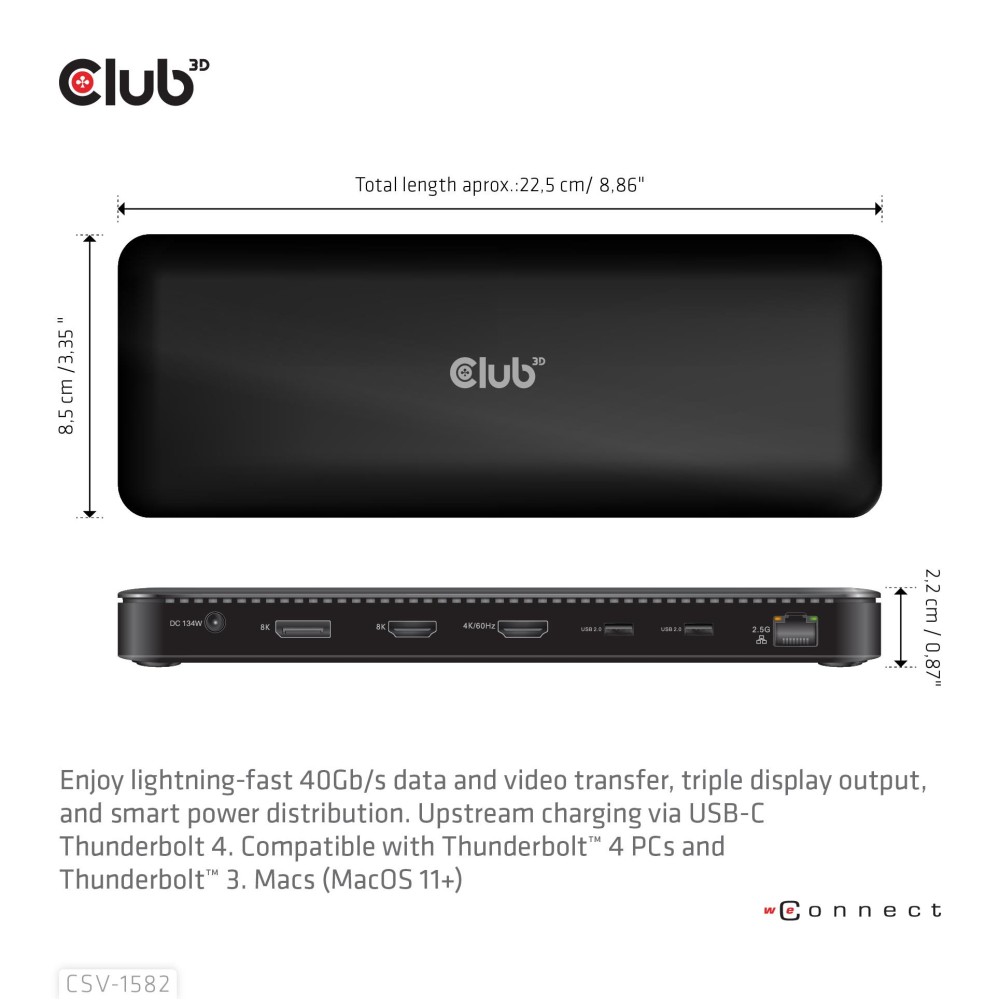

• Slim compact aluminum design
• Thunderbolt™ 4 Certified
• Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3/DP-Alt-mode based PC's and Macs™ utilizing MacOS™ 11 and later versions (Limitations can vary on different Apple proprietary Silicon).
• Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TB3, USB4, DP™ Alt mode, USB protocol
• Allow to output single 8K30Hz, dual 4K/60Hz or triple (4K/60Hz*3) displays with extended desktop displays on Windows based systems
• RJ45 supports 10M/100M/1000M/2.5G bandwidth
• 1x Thunderbolt™ 4 downstream port, allow you to cascade Thunderbolt™ devices
• Self-powered from DC power adapter with max 96W for host, max 134W for host and Dock
• Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
• Support TB4/USB4/TB3/DP-Alt-mode Hosts
• Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space)

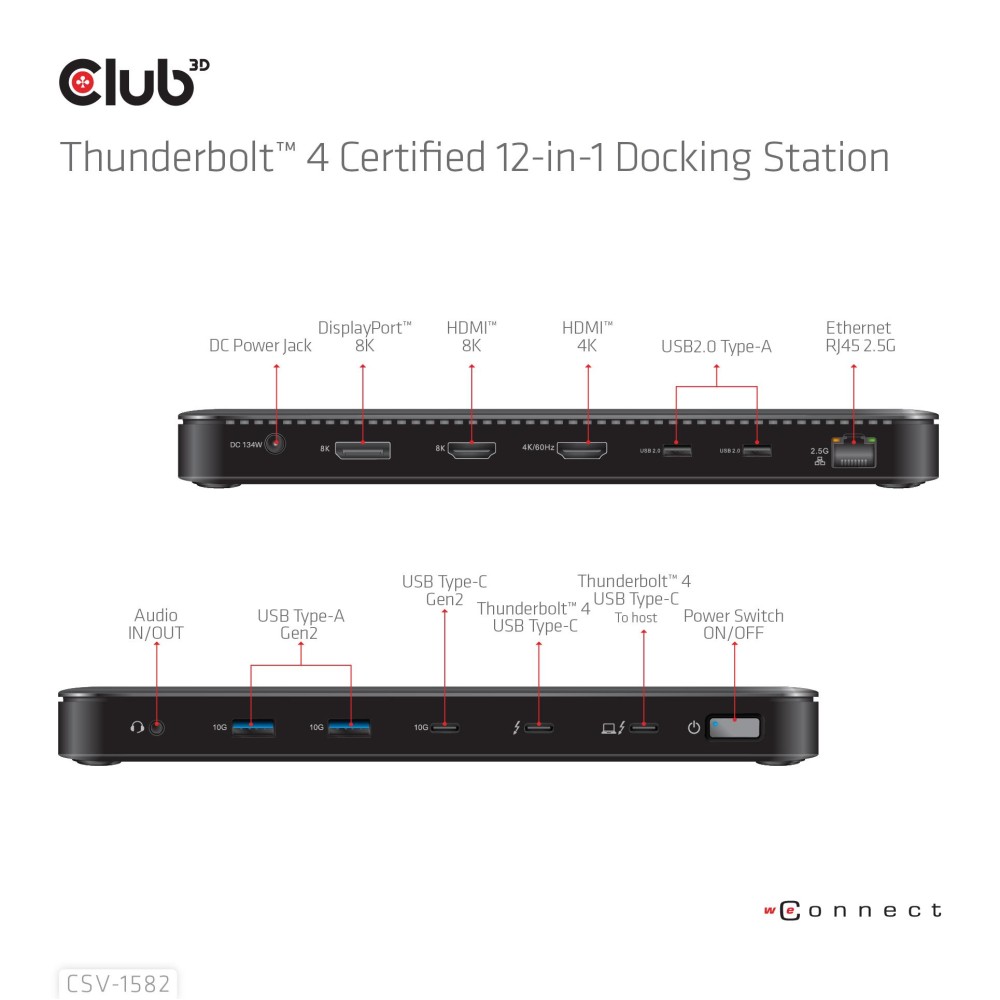

Available Interfaces
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
Upstream: 1x
- Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™3, USB4, DP Alt mode, USB protocol
- Support TB4/USB4/TB3/DP-Alt-mode Hosts
- Support max. 96Watt Host charging, 5V/9V/15V@3A,20V@4.8A
Downstream:
Stream 1:
- 1x Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™4, Thunderbolt™3, USB4, DP Alt mode, USB protocol
- Allow you to cascade Thunderbolt™ devices
- Support max 8K30Hz or dual 4K60Hz video
- Thunderbolt™ 4 port supports 15W downstream charging for connected device(The port does not support PD charging)
Stream 2： DisplayPort™:
- Support max 8K/30Hz
- Support DP1.4 Specification
- Support DPCP
- Support RGB, YCbCr444, YCbCr422, YCbCr420
- Support 8/10/12 bit deep color
- Support HDR
HDMI1(Close to DP)：
- Support max 8K/30Hz
- Support HDCP 1.4&2.2
- Support RGB, YCbCr444, YCbCr422, YCbCr420
- Support 8/10/12 bit deep color
- Support HDR
Stream 3： HDMI™2(Close to USB2.0)
- Support max 4K/60Hz
- Support HDCP 1.4&2.2
- Support RGB, YCbCr444, YCbCr422, YCbCr420
- Support 8/10/12 bit deep color
- Support HDR
- Among all streams, max output 2 streams simultaneously, support output dual 4K/60Hz (or 8K/30Hz+4K/30Hz) or triple(4K/60Hz*3) displays with extended desktop displays on Windows system
- DP™ and HDMI™1 Port output the same pictures on Mac OS system
Note：
The actual resolution supported is determined by the host and the Display together.
Other Connections :
1x USB3.2 Gen2 Type-C
- Compliant with USB3.2 Gen 2 with max 10Gbps data transmission, downward compatible with lower versions
- Support max 5V/1.5A downstream charging
- Support short-circuit, over-current protection
- Support reversible connection
2x USB3.2 Type-A Gen2 (close to USB-C 10G)
- Compliant with USB3.2 Gen 2 with max 10Gbps data transmission, downward compatible with lower versions
- Support max 900mA downstream charging per port
- Support short-circuit, over-current protection
2x USB2.0 Gen1 Type-A(close to RJ45)
- Support max 480Mbps data transmission
- Max 500mA downstream charging per port
- Support short-circuit, over-current protection
1x Ethernet RJ45
- Support Gigabit Ethernet,10M/100M/1000M/2.5Gbps
- Support Wake-On-LAN and Wake-On-WAN
- Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data.
1x Audio JACK 3.5mm
- Support 24/32-bit, 44.1/48/96/192/384KHz Sample Rate
- Support Stereo output and microphone input
- Automatic detection switch to CTIA/MTP mode

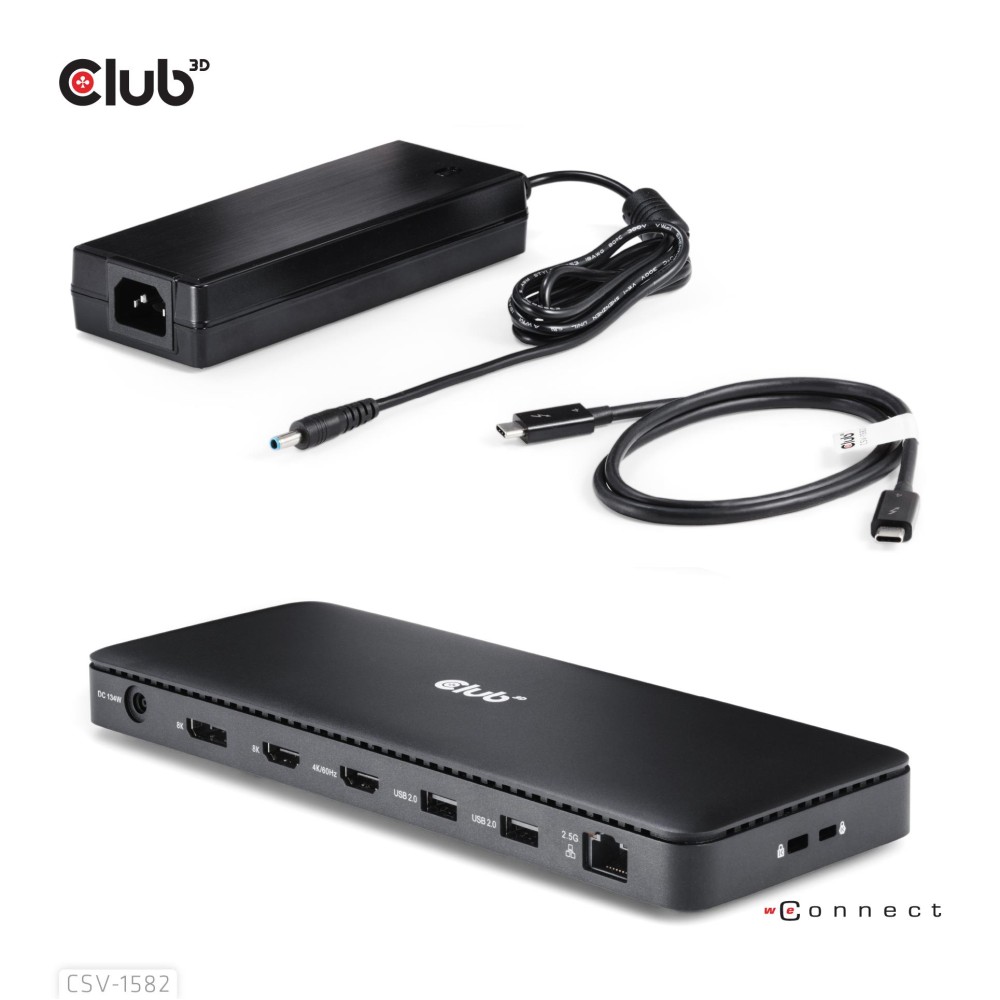

1x DC Power Jack
- Support smart charging, dynamically distribute power to PC and Hub according to the requirement of the connected devices
- Used to connect 21V 134W DC power supply
- Max 124W power for host and the DOCK and 10W is for buffer power
- Max 96W for host charging
- Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space)
OS Support:
• Windows 10 or upwards, Mac 13.5.2 (Limitations can vary on different Apple proprietary Silicon)
|
